Washer Tube Replacement

Remove the right inner fender (see FRONT INNER FENDER REPLACEMENT ).
Remove the washer nozzles and clips, then remove the tubes.

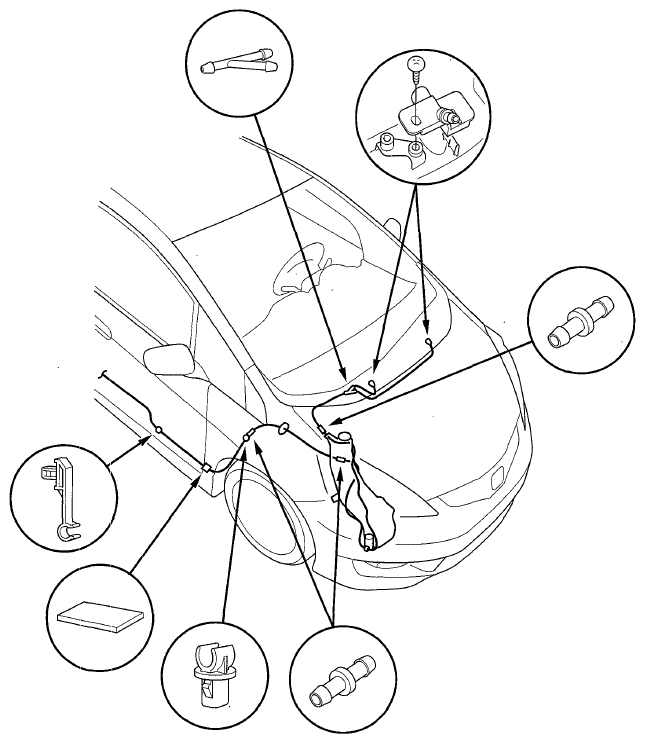

Fig 1: Identifying Washer Nozzles & Clips (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

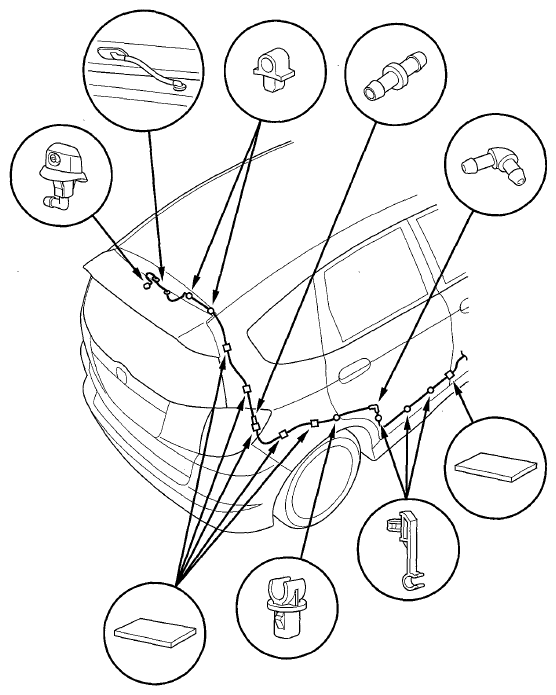

Fig 2: Identifying Washer Nozzles & Clips (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the parts in the reverse order of removal. Take care not to pinch the washer tubes. Check the washer operation.
