Visual Index - Body

Location Index
Dashboard and Console
Body 1
Body 2
Body 3
Seat

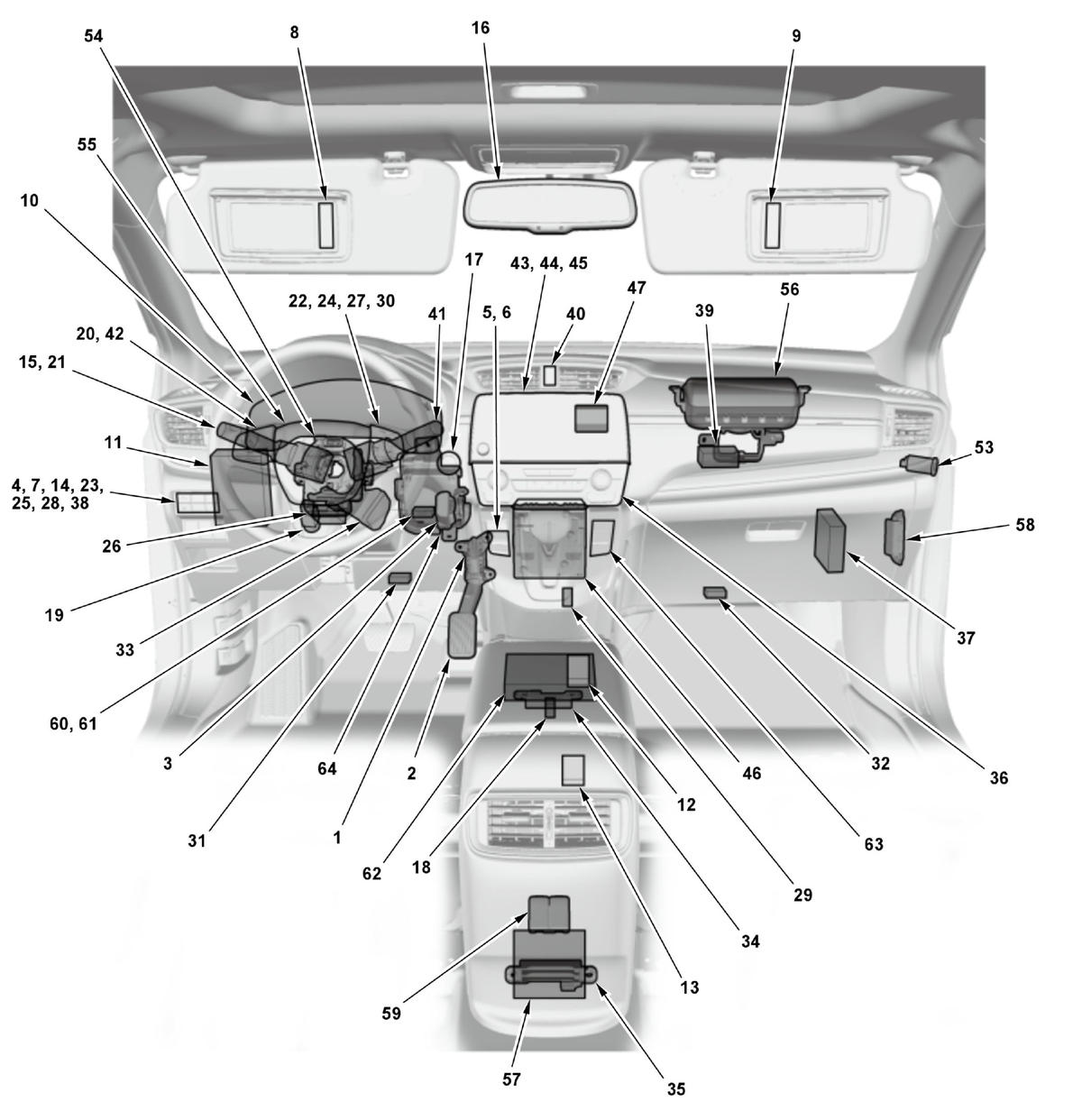

Dashboard and Console

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

No.	Component	Related System
1	Accelerator pedal position (APP) sensor	Fuel and Emissions System
2	Accelerator pedal module	Fuel and Emissions System
3	CAN gateway	Fuel and Emissions System
4	TPMS switch	TPMS
5	Automatic brake hold switch	VSA System
6	Electric parking brake switch	Electric Parking Brake Exterior Lights Gauges Keyless Access System Reminder Systems
7	VSA off switch	VSA System
8	Driver's vanity mirror light	Interior Lights
9	Passenger's vanity mirror light	Interior Lights
10	Gauge control module	Gauges

11	Body control module	Entry Lights Control System Exterior Lights Gauges Heated Windshield Wiper Area Ignition Switch Immobilizer System Interior Lights Keyless Access System Keyless/Power Door Locks/Security System Power Mirrors Power Windows Rear Window Defogger Reminder Systems Wireless Charger Lane Watch Moonroof Auto High-Beam (High-Beam Support System) Blind Spot Information (BSI) System Panoramic glass Roof
12	Front accessory power socket	Accessory Power Sockets
13	Console accessory power socket	Accessory Power Sockets
14	Parking and back-up sensor switch	Parking and Back-Up Sensor System
15	Combination light switch	Exterior Lights Reminder Systems Turn Signal/Hazard Warning Lights
16	Automatic dimming inside mirror	Automatic dimming mirrors
17	Engine start/stop switch	Entry Lights Control System Keyless Access System
18	Console box light	Interior Lights
19	Brake pedal position switch	Exterior Lights Keyless Access System Power Tailgate Cruise Control
20	Information switch	Gauges
21	LaneWatch switch	LaneWatch
22	ACC combination switch	Adaptive Cruise Control (ACC) System
23	CMBS OFF switch	Collision Mitigation Braking System (CMBS)
24	LKAS switch	Lane Keeping Assist System (LKAS)
25	RDM switch	Road Departure Mitigation
26	Heated steering wheel control unit	Heated Steering Wheel
27	Heated steering wheel switch	Heated Steering Wheel
28	Heated windshield wiper area switch	Heated Windshield Wiper Area
29	Park pin switch	Ignition Switch Keyless Access System
30	Cruise control combination switch	Cruise Control
31	Driver's footwell light	Interior Lights

32	Front passenger's footwell light	Interior Lights
33	Electric steering lock	Keyless Access System
34	Front interior LF antenna	Keyless Access System
35	Middle interior LF antenna	Keyless Access System
36	Climate control panel	Power Mirrors Rear Window Defogger Climate Control System SRS
37	Climate control unit	Power Mirrors Rear Window Defogger Seat Heaters Climate Control System
38	Driver's power tailgate switch	Power Tailgate
39	Front seat heater control unit	Seat Heaters
40	Hazard warning switch	Turn Signal/Hazard Warning Lights
41	Wiper/washer switch	Wipers/Washers
42	Audio remote-HFL switch	Audio System Navigation System HandsFreeLink System
43	Audio-navigation unit	Wireless Charger Audio System Navigation System HandsFreeLink System LaneWatch Cross Traffic Monitor
44	Audio unit	Wireless Charger Audio System HandsFreeLink System LaneWatch
45	Center display unit	Audio System Navigation System
46	Stereo amplifier	Audio System Navigation System HandsFreeLink System
47	GPS antenna	Audio System Navigation System

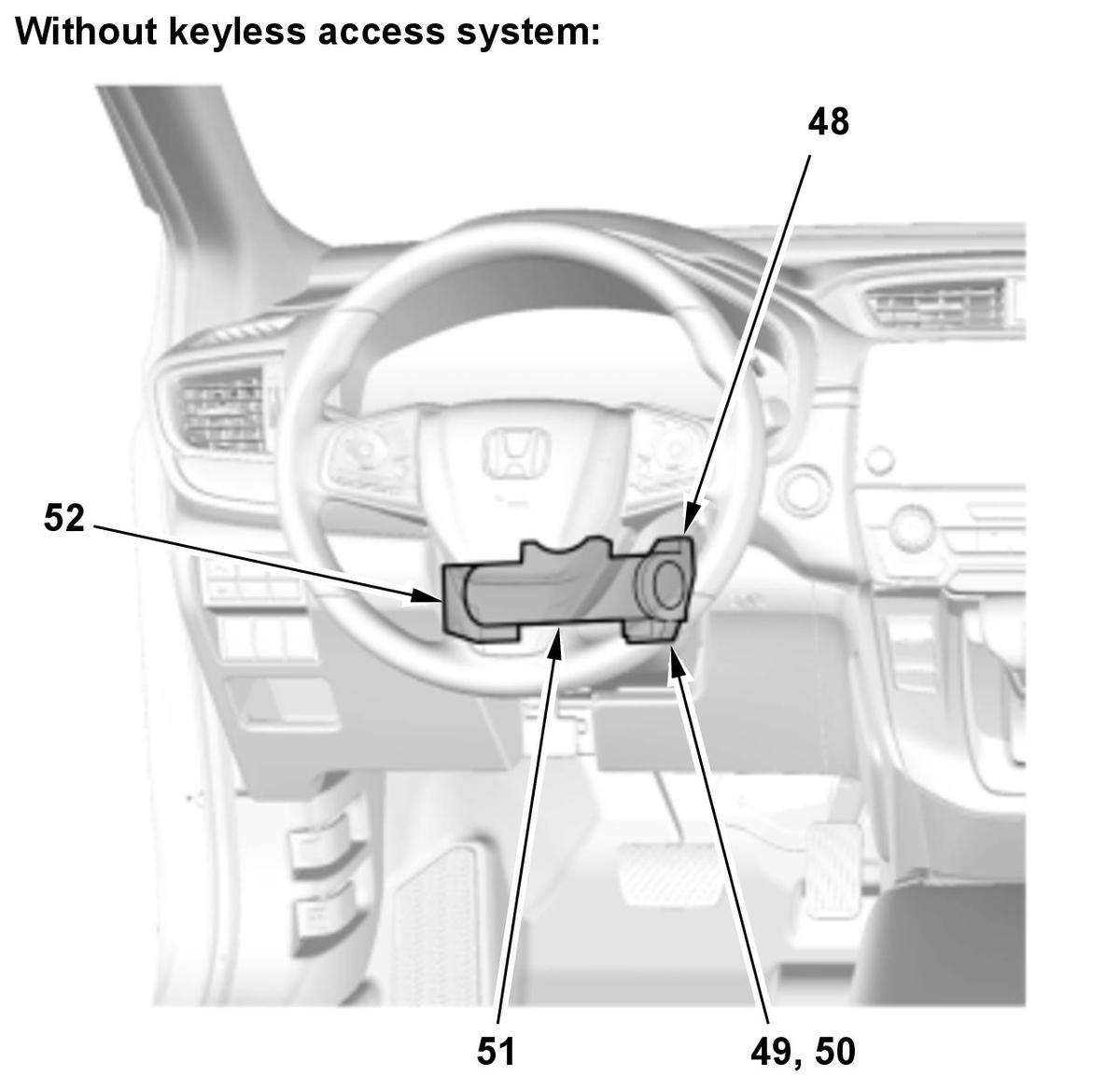

48	Immobilizer-keyless control unit	Entry Lights Control System Immobilizer System Keyless/Power Door Locks/Security System
49	Ignition key switch	Entry Lights Control System Ignition Switch Reminder Systems
50	Ignition key light	Entry Lights Control System

51	Steering lock	Steering Entry Lights Control System Ignition Switch
52	Ignition switch	Ignition Switch
53	Front passenger's airbag ON/OFF switch	SRS
54	Cable reel	SRS
55	Driver's airbag	SRS
56	Front passenger's airbag	SRS
57	SRS unit	Reminder Systems SRS Adaptive Cruise Control (ACC) System Collision Mitigation Braking System (CMBS) Lane Keeping Assist System (LKAS) System Road Departure Mitigation System Auto High-Beam (High-Beam Support System)
58	ANC/active sound control unit	Audio System Navigation System HandsFreeLink System
59	USB charger unit	Audio System
60	In-car temperature sensor	Climate Control System
61	Humidity/in-car temperature sensor	Climate Control System
62	Wireless charger	Wireless Charger
63	Idle stop off switch	Gauges Fuel and Emissions System
64	DC-DC converter	Fuel and Emissions System

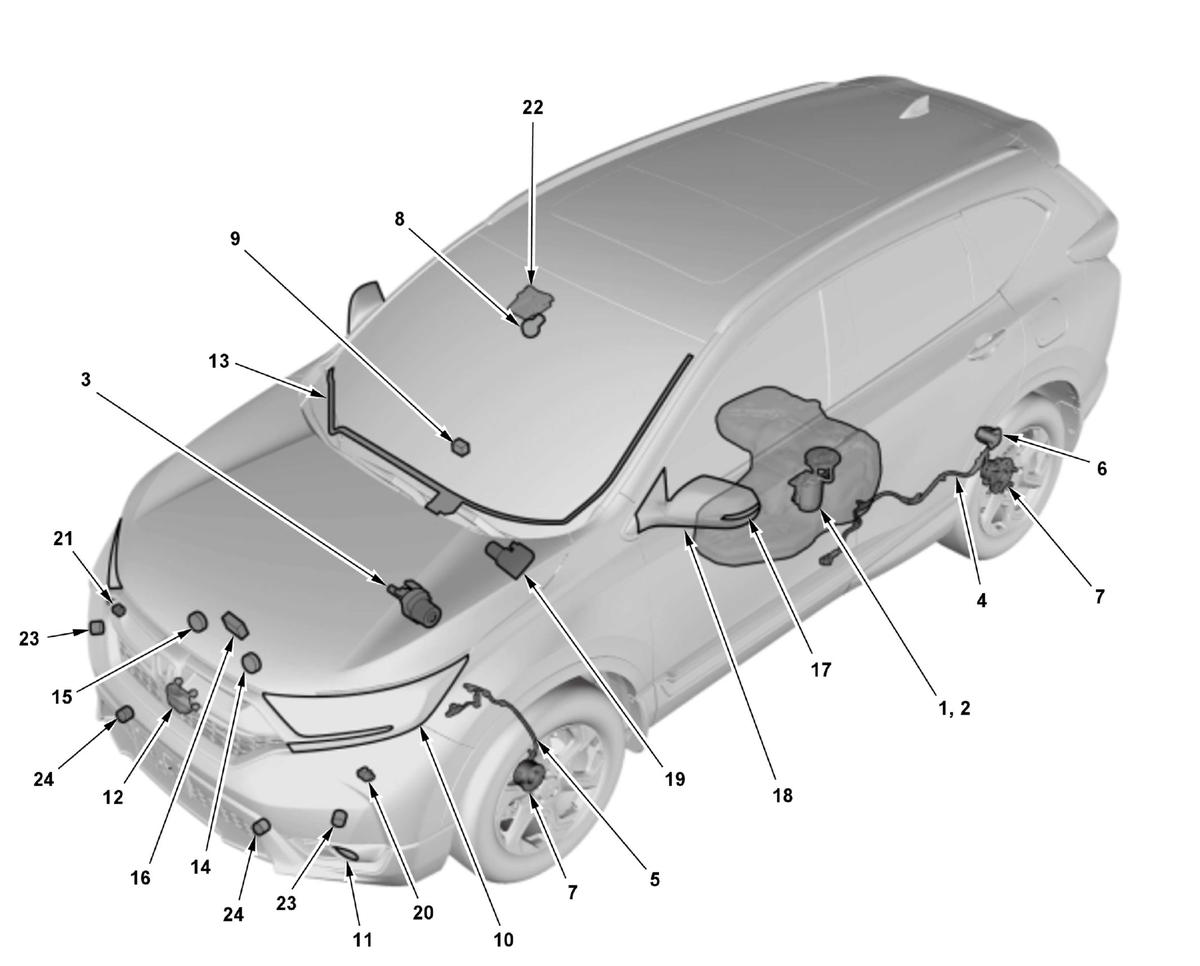

Body 1

Courtesy of HONDA, U.S.A., INC.

No.	Component	Related System
1	Fuel tank unit	Fuel and Emissions System
2	Fuel gauge sending unit	Fuel and Emissions System Gauges
3	EPS motor/control unit	Rear Differential EPS Adaptive Cruise Control (ACC) System Collision Mitigation Brake System (CMBS) Lane Keeping Assist System (LKAS) System Road Departure Mitigation System
4	Left-rear wheel speed sensor	TPMS VSA System
5	Left-front wheel speed sensor	TPMS VSA System
6	Left-rear electric parking brake actuator	Electric Parking Brake
7	Magnetic encoder	VSA System
8	Automatic lighting/rain sensor	Exterior Lights Wipers/Washers Auto High-Beam (High-Beam Support System)

9	Automatic lighting control unit-sensor Sunlight sensor	Climate Control System Exterior Lights
10	Headlight	Exterior Lights Keyless/Power Door Locks/Security System Power Tailgate Turn Signal/Hazard Warning Lights
11	Front fog light	Exterior Lights
12	Millimeter wave radar	Adaptive Cruise Control (ACC) System Collision Mitigation Brake System (CMBS) Lane Keeping Assist System (LKAS) System Road Departure Mitigation System Auto High-Beam (High-Beam Support System)
13	Heated windshield wiper area	Heated Windshield Wiper Area
14	Horn (low)	Horns Keyless/Power Door Locks/Security System
15	Horn (high)	Horns Keyless/Power Door Locks/Security System
16	Hood latch switch	Keyless/Power Door Locks/Security System
17	Side turn signal light (LED)	Keyless/Power Door Locks/Security System Power Tailgate Turn Signal/Hazard Warning Lights
18	Power mirror/mirror defogger	Power Mirrors
19	Windshield wiper control unit/motor	Wipers/Washers
20	Left front impact sensor	SRS
21	Right front impact sensor	SRS
22	Multipurpose camera unit	Adaptive Cruise Control (ACC) System Collision Mitigation Brake System (CMBS) Lane Keeping Assist System (LKAS) System Road Departure Mitigation System Auto High-Beam (High-Beam Support System)
23	Front corner sensor	Parking and Back-Up Sensor System
24	Front center sensor	Parking and Back-Up Sensor System

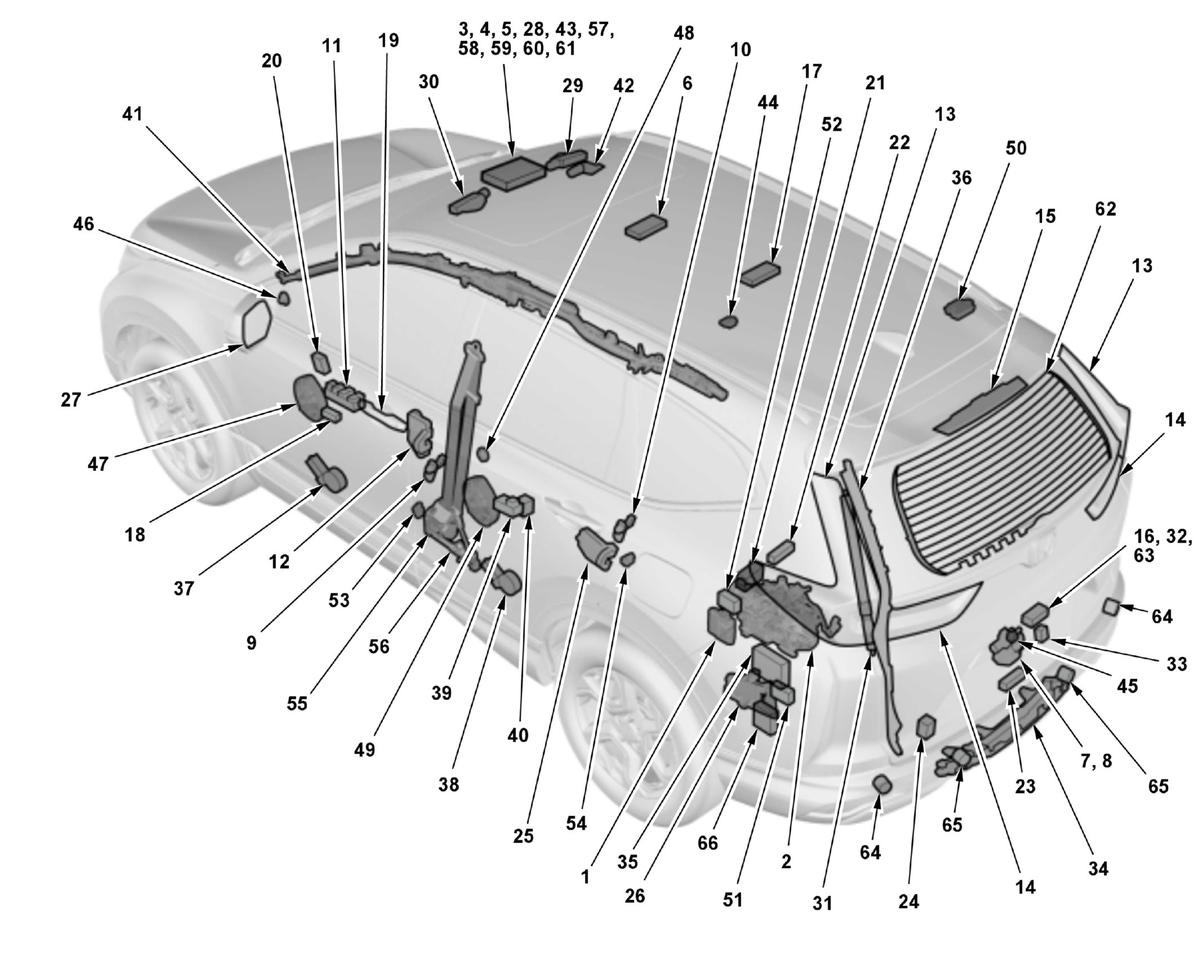

Body 2

Courtesy of HONDA, U.S.A., INC.

No.	Component	Related System
1	AWD control unit	Rear differential
2	Rear differential assembly	Rear differential
3	Ambient light	Interior Lights
4	Front individual map light	Entry Lights Control System Interior Lights
5	Interior light switch	Interior Lights Moonroof
6	Ceiling light	Entry Lights Control System Interior Lights
7	Power tailgate closer unit	Entry Lights Control System Interior Lights Power Tailgate Safety Indicator System
8	Tailgate latch switch	Entry Lights Control System Interior Lights Keyless/Power Door Locks/Security System Safety Indicator System

9	Driver's door switch	Entry Lights Control System Exterior Lights Interior Lights Keyless/Power Door Locks/Security System Reminder Systems Safety Indicator System
10	Left rear door switch	Entry Lights Control System Interior Lights Keyless/Power Door Locks/Security System Safety Indicator System
11	Power window master switch	Driving Position Memory System (DPMS) Entry Lights Control System Keyless/Power Door Locks/Security System Power Mirrors Power Windows Moonroof
12	Driver's door latch	Entry Lights Control System Keyless/Power Door Locks/Security System
13	Taillight	Exterior Lights Keyless/Power Door Locks/Security System Turn Signal/Hazard Warning Lights
14	Inner taillight	Exterior Lights Keyless/Power Door Locks/Security System
15	High mount brake light	Exterior Lights Keyless/Power Door Locks/Security System
16	License plate light	Exterior Lights Keyless/Power Door Locks/Security System
17	Rear individual map light	Entry Lights Control System Interior Lights
18	Driver's door inner handle light	Interior Lights
19	Driver's door outer handle	Keyless Access System
20	Driving position memory switch	Driving Position Memory System (DPMS)
21	Rear seat heater control unit	Seat Heaters
22	Rear interior LF antenna	Keyless Access System
23	Rear bumper LF antenna	Keyless Access System
24	Keyless buzzer	Keyless Access System Keyless/Power Door Locks/Security System
25	Left rear door latch	Keyless/Power Door Locks/Security System
26	Left side BSI radar unit	Blind Spot Information (BSI) System Cross Traffic Monitor
27	Left side BSI alert indicator	Blind Spot Information (BSI) System
28	Panoramic glass roof/power sunshade switch	Panoramic Glass Roof
29	Power sunshade motor-control unit	Panoramic Glass Roof
30	Panoramic glass roof motor-control unit	Panoramic Glass Roof
31	Power tailgate drive unit	Power Tailgate

32	Tailgate outer handle switch	Power Tailgate Keyless/Power Door Locks/Security System
33	Power tailgate inside switch	Power Tailgate
34	Hands free access power tailgate control unit/sensor	Power Tailgate
35	Power tailgate control unit	Power Tailgate
36	Left power tailgate pinch sensor	Power Tailgate
37	Driver's power window motor	Power Windows
38	Left rear power window motor	Power Windows
39	Left rear power window switch	Power Windows
40	Left rear seat heater switch	Seat Heaters
41	Left side curtain airbag	SRS
42	Moonroof motor-control unit	Power Windows Moonroof
43	Front HFL-navigation-ANC/active sound control microphone	Audio System Navigation System HandsFreeLink System
44	Rear ANC/active sound control microphone	Audio System
45	Rearview camera	Audio System Navigation System Cross Traffic Monitor
46	Left front tweeter	Audio System Navigation System HandsFreeLink System
47	Left front door speaker	Audio System Navigation System HandsFreeLink System
48	Left rear tweeter	Audio System
49	Left rear door speaker	Audio System
50	Electrical compass unit	Electrical Compass
51	Cargo area accessory socket	Accessory Power Sockets
52	Left cargo area light	Interior Lights
53	Left side impact sensor (first)	SRS
54	Left side impact sensor (second)	SRS
55	Driver's seat belt tensioner	SRS
56	Driver's seat belt outer lap tensioner	SRS
57	Roof console module	Entry Lights Control System Interior Lights Panoramic Glass Roof HomeLink Remote Control System
58	Homelink Unit	HomeLink Remote Control System
59	Homelink module	HomeLink Remote Control System
60	Homelink switch	HomeLink Remote Control System
61	Moonroof switch	Moonroof
62	Rear window defogger	Rear Window Defogger
63	Tailgate lock switch	Keyless Access System
64	Rear corner sensor	Parking and Back-Up Sensor System

65	Rear center sensor	Parking and Back-Up Sensor System
66	Parking and back-up sensor control unit	Parking and Back-Up Sensor System

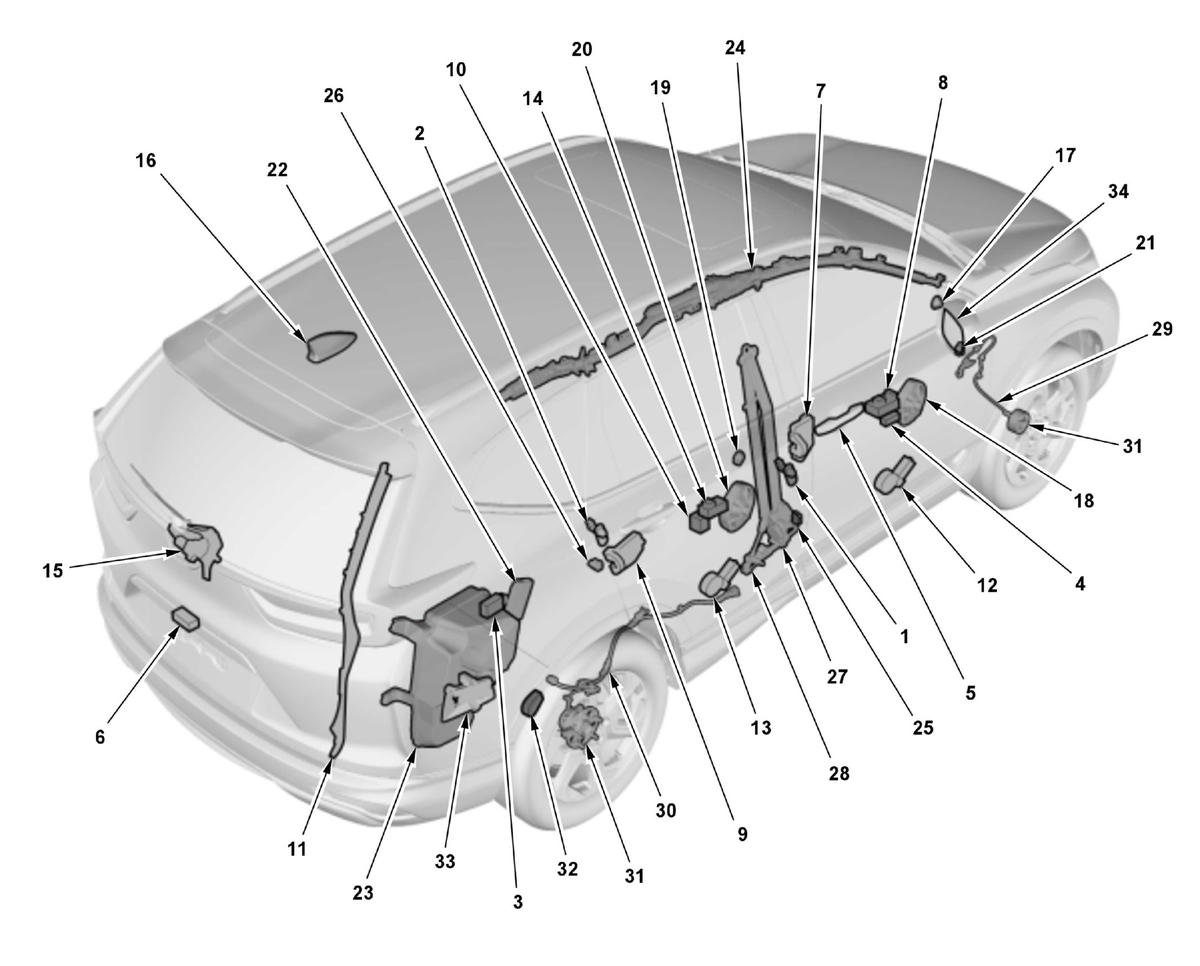

Body 3

Courtesy of HONDA, U.S.A., INC.

No.	Component	Related System
1	Front passenger's door switch	Entry Lights Control System Interior Lights Keyless/Power Door Locks/Security System Safety Indicator System
2	Right rear door switch	Entry Lights Control System Interior Lights Keyless/Power Door Locks/Security System Safety Indicator System
3	Right cargo area light	Interior Lights
4	Front passenger's door inner handle light	Interior Lights
5	Front passenger's door outer handle	Keyless Access System
6	Tailgate lock switch	Keyless Access System
7	Front passenger's door latch	Keyless/Power Door Locks/Security System
8	Front passenger's power window switch	Keyless/Power Door Locks/Security System Power Windows
9	Right rear door latch	Keyless/Power Door Locks/Security System

10	Right rear seat heater switch	Seat Heaters
11	Right power tailgate pinch sensor	Power Tailgate
12	Front passenger's power window motor	Power Windows
13	Right rear power window motor	Power Windows
14	Right rear power window switch	Power Windows
15	Rear window wiper motor	Wipers/Washers
16	Roof antenna	Audio System
17	Right front tweeter	Audio System Navigation System HandsFreeLink System
18	Right front door speaker	Audio System Navigation System HandsFreeLink System
19	Right rear tweeter	Audio System
20	Right rear door speaker	Audio System
21	LaneWatch camera	Audio System LaneWatch
22	Tuner unit	Audio System
23	Subwoofer	Audio System
24	Right side curtain airbag	SRS
25	Right side impact sensor (first)	SRS
26	Right side impact sensor (second)	SRS
27	Front passenger's seat belt tensioner	SRS
28	Front passenger's seat belt outer lap tensioner	SRS
29	Right-front wheel speed sensor	TPMS VSA System
30	Right-rear wheel speed sensor	TPMS VSA System
31	Magnetic encoder	VSA System
32	Right-rear electric parking brake actuator	Electric Parking Brake
33	Right side BSI radar unit	Blind Spot Information (BSI) System Cross Traffic Monitor
34	Right side BSI alert indicator	Blind Spot Information (BSI) System

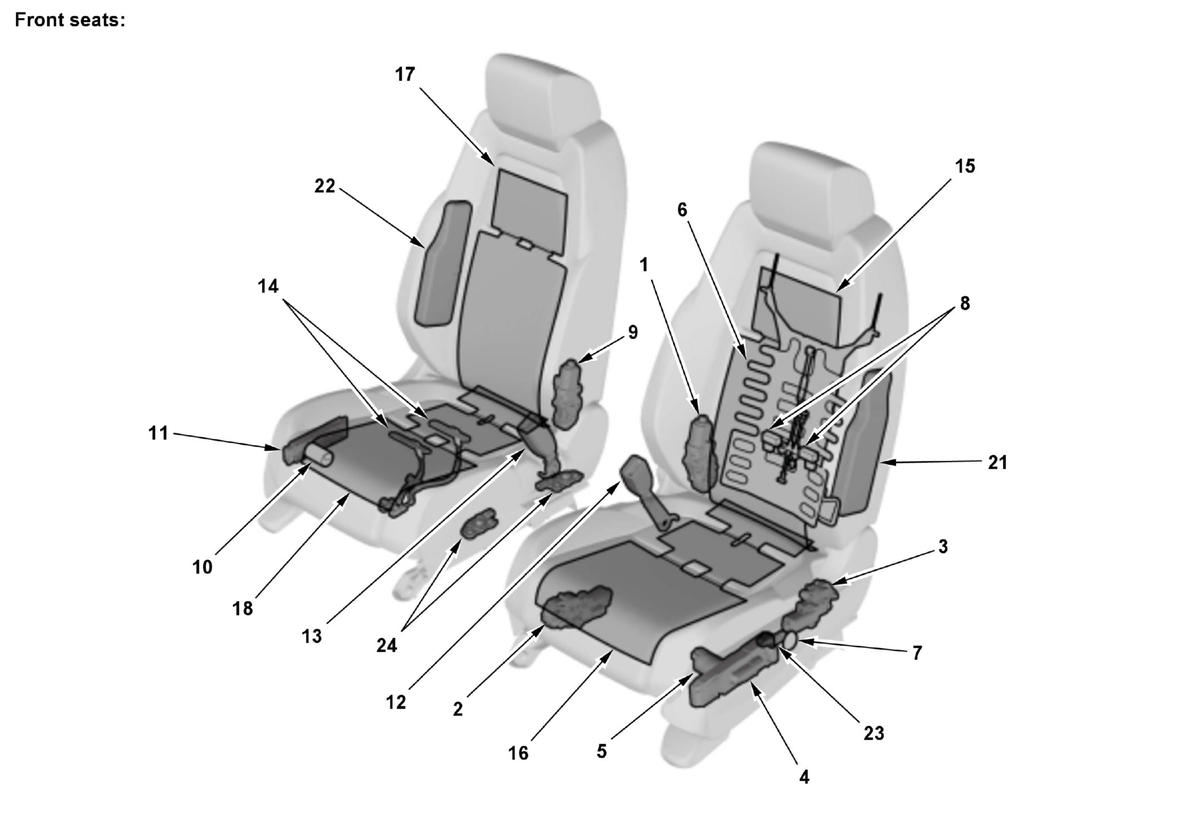

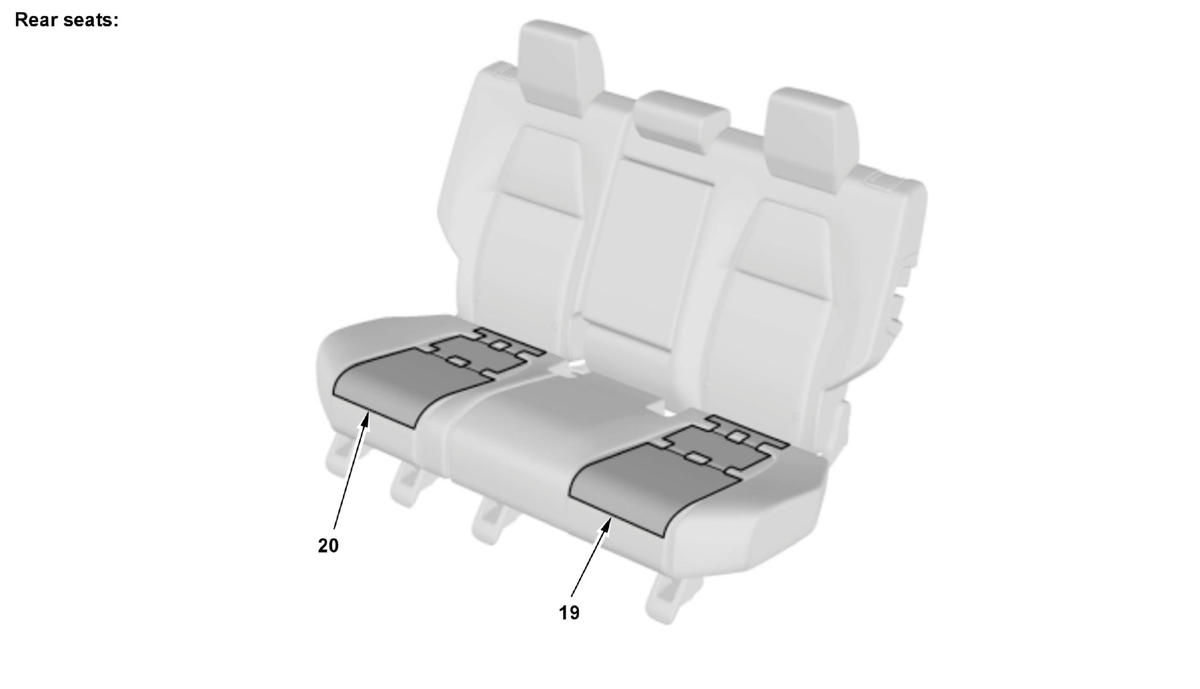

Seat

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

No.	Component	Related System
1	Driver's recline motor/position sensor	Driving Position Memory System (DPMS) Power Seats
2	Driver's front up-down motor/position sensor	Driving Position Memory System (DPMS) Power Seats

3	Driver's rear up-down motor/position sensor	Driving Position Memory System (DPMS) Power Seats
4	Driver's power seat control unit/power seat adjustment switch	Driving Position Memory System (DPMS) Power Seats
5	Driver's slide motor/position sensor	Driving Position Memory System (DPMS) Power Seats
6	Power lumbar support	Power Lumbar Support
7	Power lumbar support switch	Power Lumbar Support
8	Power lumbar support motor	Power Lumbar Support
9	Front passenger's recline motor	Power Seats
10	Front passenger's slide motor	Power Seats
11	Front passenger's power seat adjustment switch	Power Seats
12	Driver's seat belt buckle switch	Reminder Systems SRS
13	Front passenger's seat belt buckle switch	Reminder Systems SRS
14	Front passenger's seat sitting switch	Reminder Systems SRS
15	Driver's seat-back heater	Seat Heaters
16	Driver's seat cushion heater	Seat Heaters
17	Front passenger's seat-back heater	Seat Heaters
18	Front passenger's seat cushion heater	Seat Heaters
19	Left rear seat cushion heater	Seat Heaters
20	Right rear seat cushion heater	Seat Heaters
21	Driver's side airbag	SRS
22	Front passenger's side airbag	SRS
23	Driver's seat position sensor	SRS
24	Front passenger's weight sensor	SRS Reminder Systems
