UNDERHOOD Fuse Block

NOTE: Underhood fuse block is located at left front corner of engine compartment. See Fig 1 .

Fig 1: Locating Underhood Fuse Block

Courtesy of GENERAL MOTORS CORP.

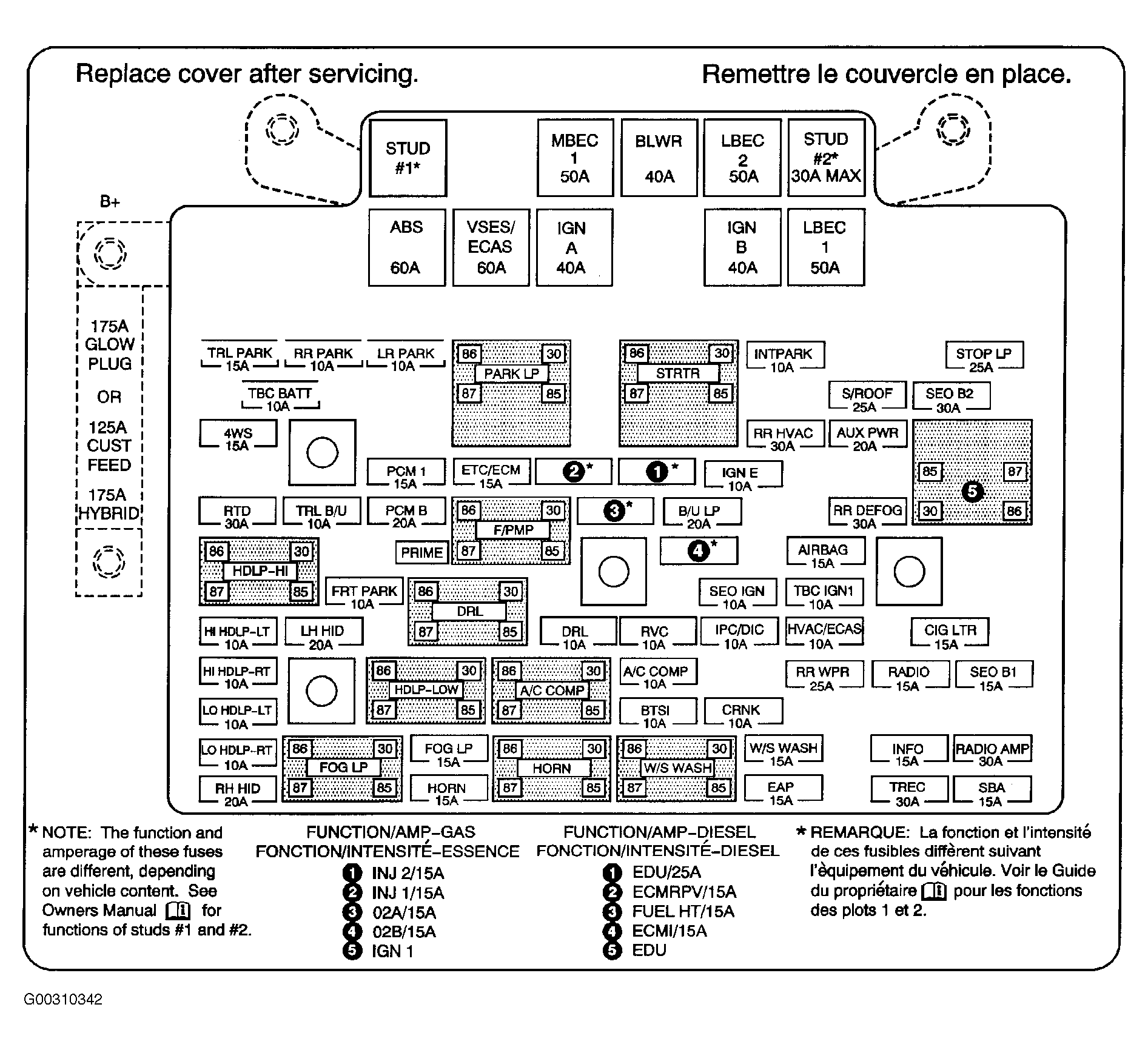

Fig 2: Identifying Underhood Fuse Block Components

Courtesy of GENERAL MOTORS CORP.

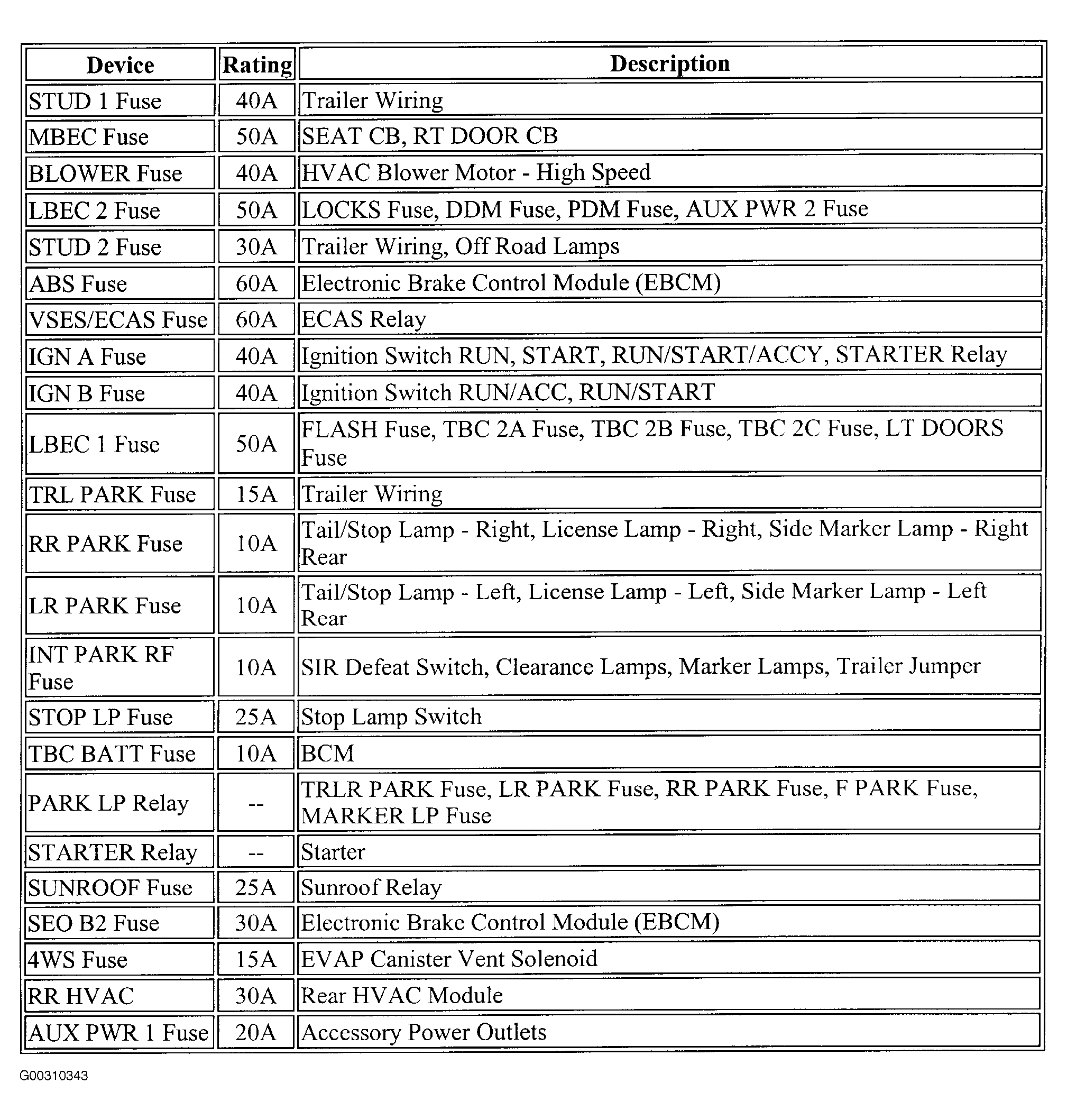

Fig 3: Underhood Fuse Block Legend (1 Of 3)

Courtesy of GENERAL MOTORS CORP.

Fig 4: Underhood Fuse Block Legend (2 Of 3)

Courtesy of GENERAL MOTORS CORP.

Fig 5: Underhood Fuse Block Legend (3 Of 3)

Courtesy of GENERAL MOTORS CORP.
