Control Valve Assembly: Reassembly

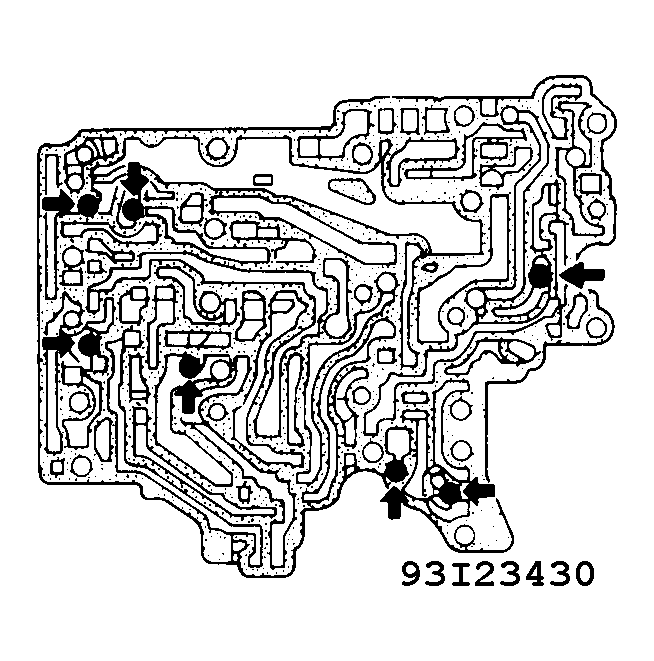

- Place oil circuit of upper valve body face up. Install steel balls in proper positions. See Fig 1
. Install upper separating gasket, upper inter separating gasket and upper separating plate. Install reamer bolts "F" from bottom of upper valve body. Install separating gaskets and separating plates as a set on upper valve body, using reamer bolts as a guide.

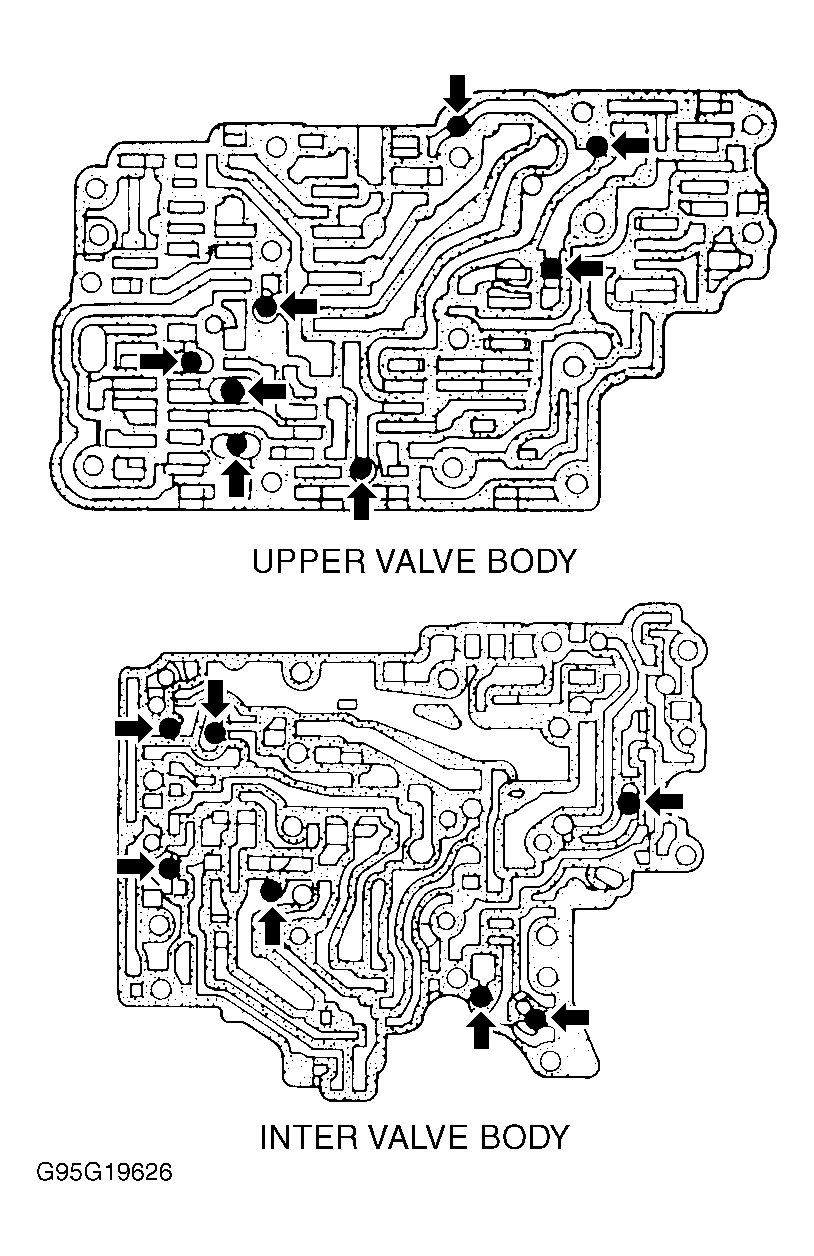

- Place lower valve body side of inter valve body face up. Install steel balls in proper positions. Install inter valve body on upper valve body, using reamer bolts "F" as a guide. DO NOT
lose steel balls. Install steel balls and relief valve springs in proper positions in lower valve body. Install lower separating gasket, inter separating gasket and lower separating plate. See Figure
.
- Install support plate bolts "E" from bottom of lower valve body. Install separating gaskets and separating plate as a set on lower valve body using bolts "E" as a guide. Temporarily install support plates on lower valve body. Install lower valve body on inter valve body using reamer bolts "F" as a guide. See Figure
. Tighten bolts.
- Install "O" rings to OD cancel solenoid, lock-up solenoid and harness connector. Apply ATF to "O" rings prior to installation. Install and snug bolts "B". Install OD cancel solenoid and lock-up solenoid to lower valve body. Install and snug bolts "A" and 'C".
- Remove both reamer bolts "F" previously installed as guides. Install one reamer bolt "F" from lower valve body side. Tighten bolts "A", "B", "C" and "F" to 62-80 INCH lbs. (7-9 N.m). Install oil strainer and other reamer bolt "F". Tighten bolts "A", "D" and "F' to 62-80 INCH lbs. (7-9 N.m). Install support plates and tighten bolts "E" to 62-80 INCH lbs. (7-9 N.m). Install tube connector and tubes to lower valve body. Install oil circuit side of tube connector face up.
