Component Locations

NOTE: Refer to illustrations for component locations. Refer to Fig 1 -3.

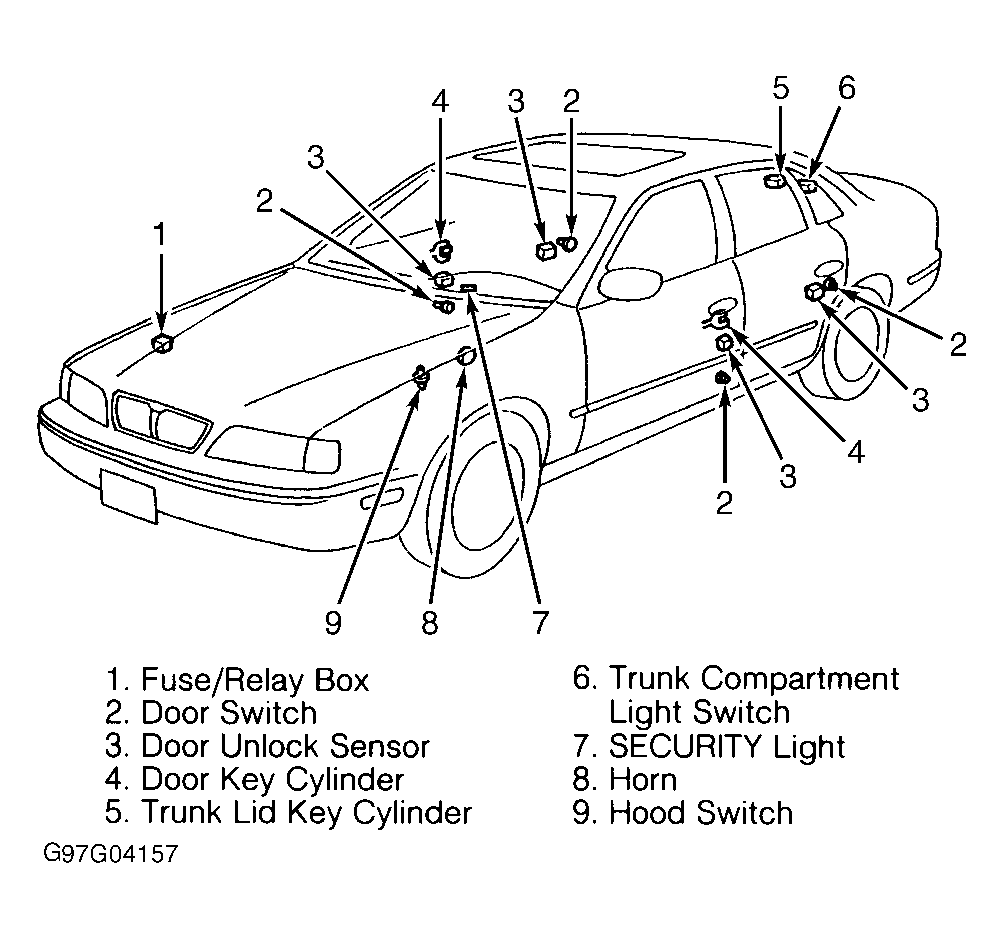

Fig 1: Locating Anti-Theft System Components

Courtesy of NISSAN MOTOR CO., U.S.A.

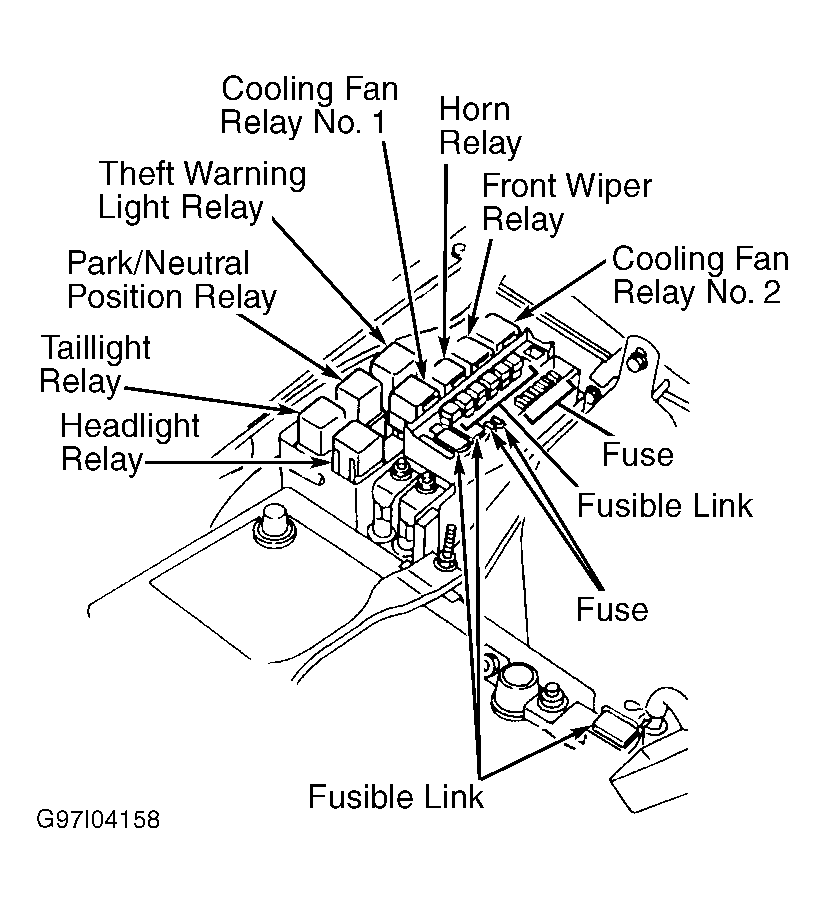

Fig 2: Anti-Theft System Relays (Engine Compartment)

Courtesy of NISSAN MOTOR CO., U.S.A.

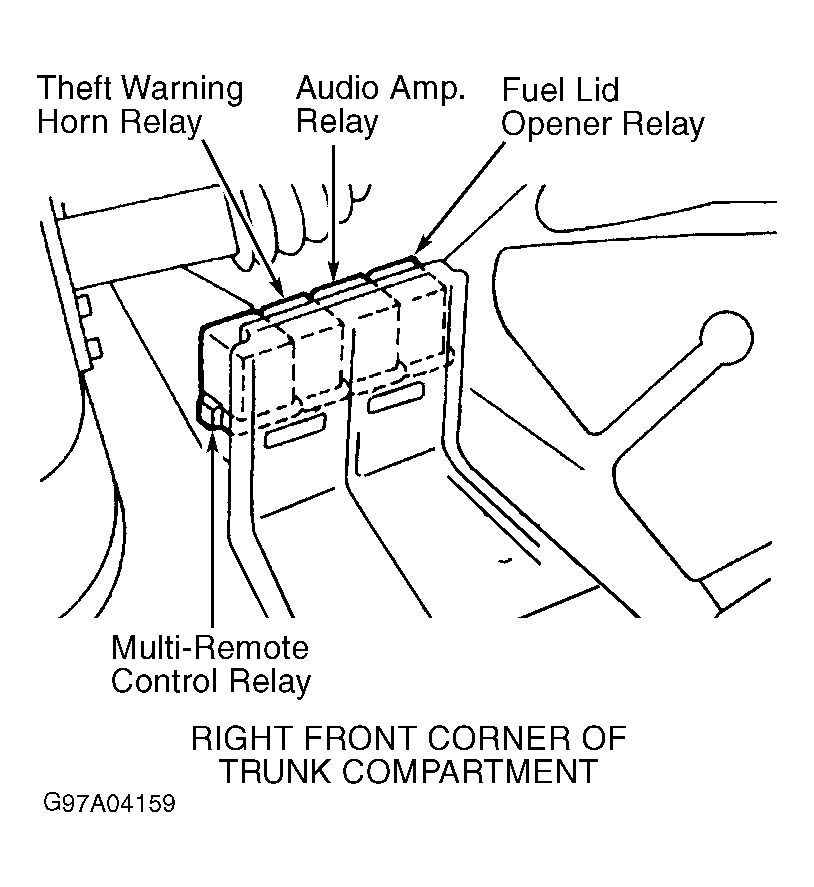

Fig 3: Anti-Theft System Relays (Trunk Compartment)

Courtesy of NISSAN MOTOR CO., U.S.A.
