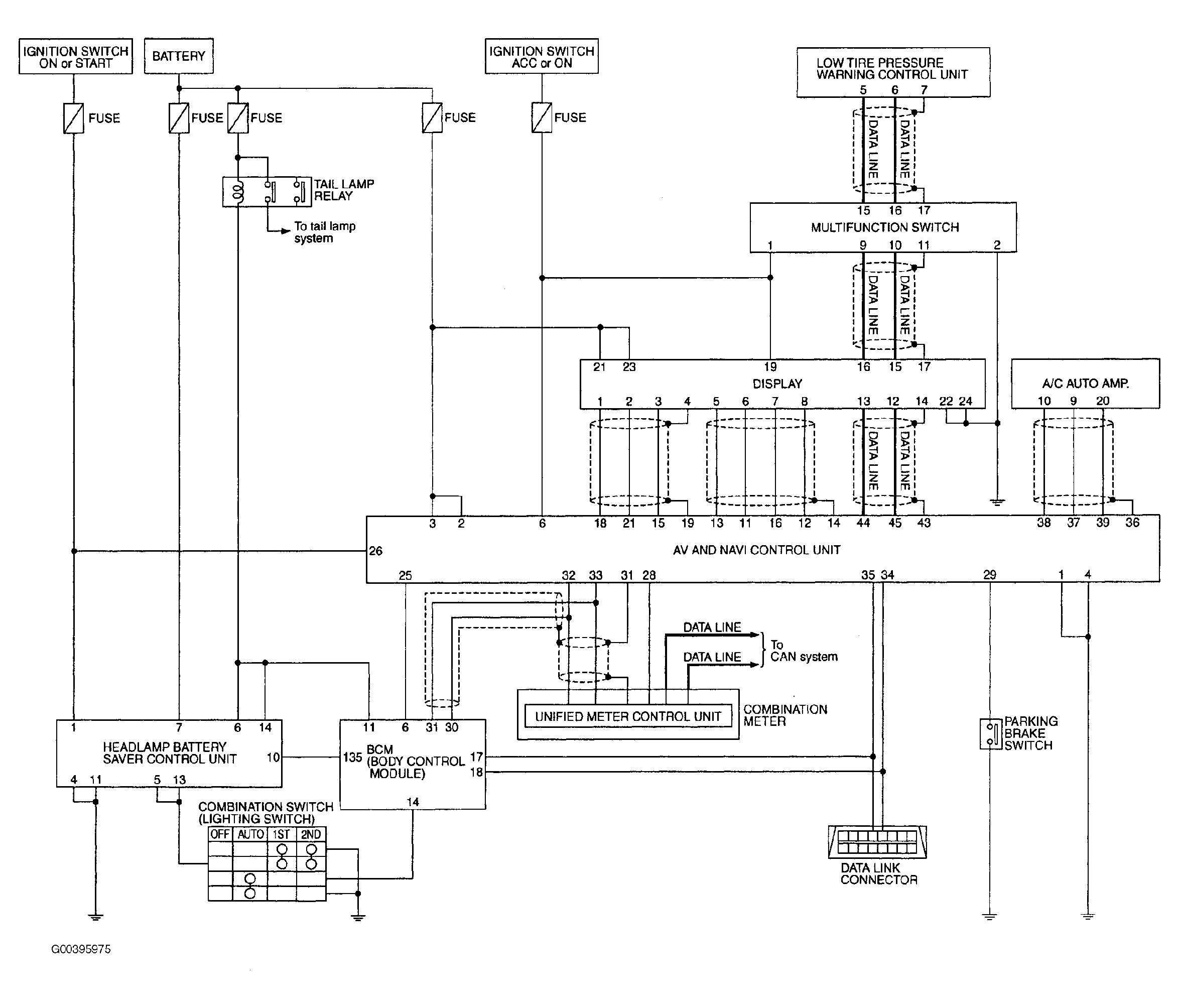

Vehicle Information And Integrated Switch System/With Navigation System: Schematic

WARNING: This page is about a different car, the 2004 Infiniti Q45. However, it is still accessible from the selected car via links, so may be relevant.
