Diagnosis Flow

Select METER A/C AMP on CONSULT-II, and perform self-diagnosis of unified meter and A/C amp. Refer to CONSULT-II FUNCTION  .

Self-diagnostic results content

1. No malfunction detected: GO TO 2.
2. Malfunction detected: Go to SYMPTOM CHART 2  .

Turn ignition switch ON. (Engine stopped)

Do warning lamps (such as malfunction indicator lamp and oil pressure warning lamp) illuminate?

1. YES: GO TO 3.
2. NO: Check ignition power supply system of combination meter. Refer to POWER SUPPLY AND GROUND CIRCUIT INSPECTION  .

Perform combination meter self-diagnosis. Refer to SELF-DIAGNOSIS FUNCTION  .

Does self-diagnosis function operate?

1. YES: GO TO 4.
2. NO: Check battery power supply of combination meter and ground system. Refer to POWER SUPPLY AND GROUND CIRCUIT INSPECTION  .

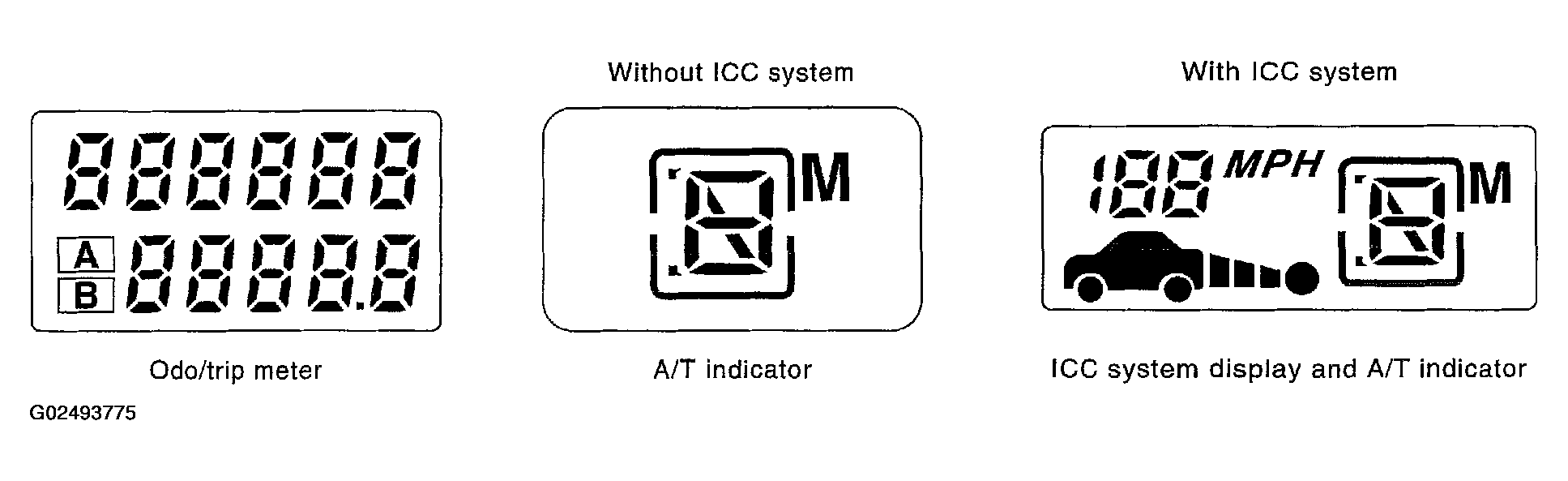

Check ODO/trip meter segment, A/T indicator or ICC system display segment.

Fig 1: Confirming Combination Meter Display Information

Courtesy of NISSAN MOTOR CO., U.S.A.

Do all segments illuminate?

1. YES: GO TO 5.
2. NO: Replace combination meter.

During low-fuel warning lamp check, confirm illumination of low-fuel warning lamp.

OK or NG

1. OK: GO TO 6.
2. NG: Replace combination meter.

Check indication of each meter/gauge in self-diagnosis mode.

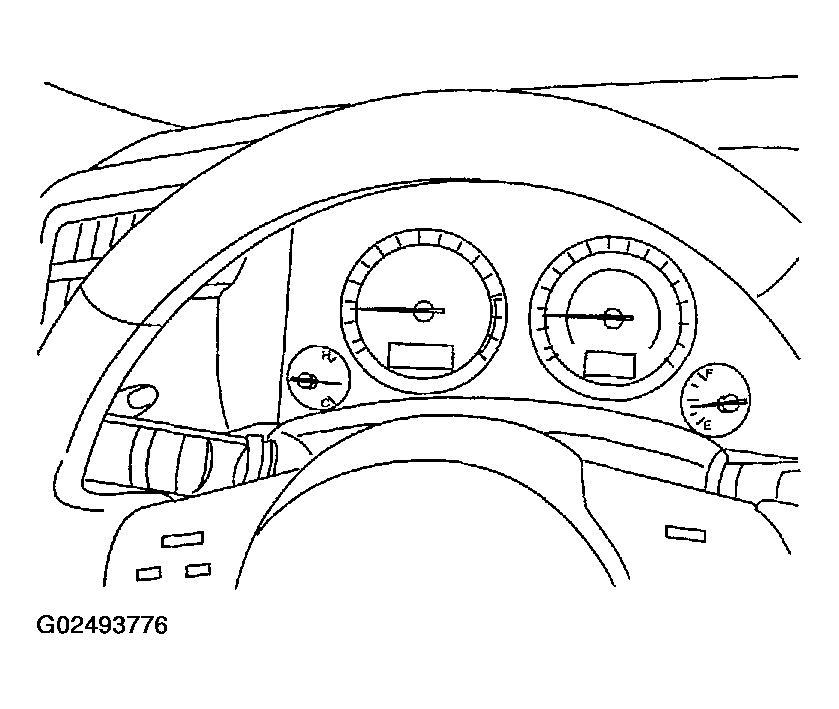

Fig 2: Viewing Combination Meter

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

1. OK: Go to SYMPTOM CHART 1  .
2. NG: Replace combination meter.
