System Description
›
Component Parts
›
Component Description
Component Description

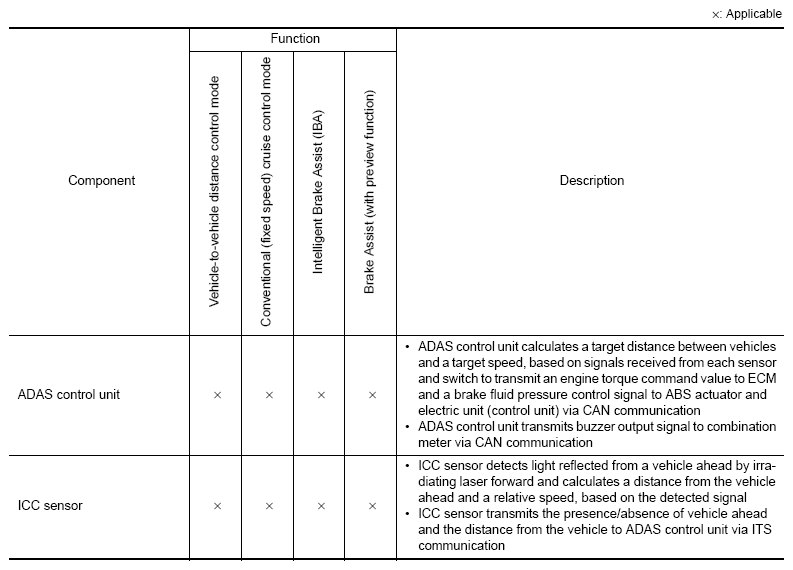

Fig 1: Cruise Control System Component Description Chart (1 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.

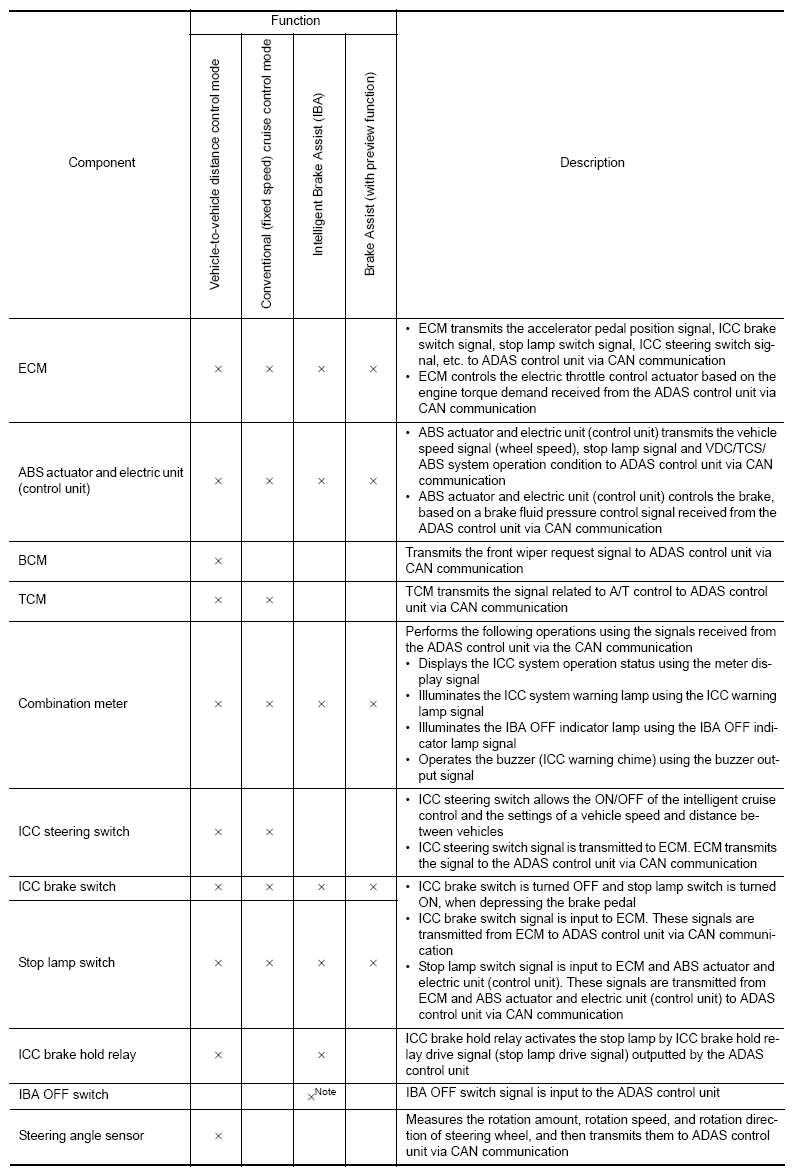

Fig 2: Cruise Control System Component Description Chart (2 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.
NOTE:
Only IBA system uses
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
