Intelligent Cruise Control System (ICC)
›
System Description
›
Diagnosis System (ADAS Control Unit)
›
CONSULT Function (ICC/ADAS)
›
Data Monitor
Data Monitor

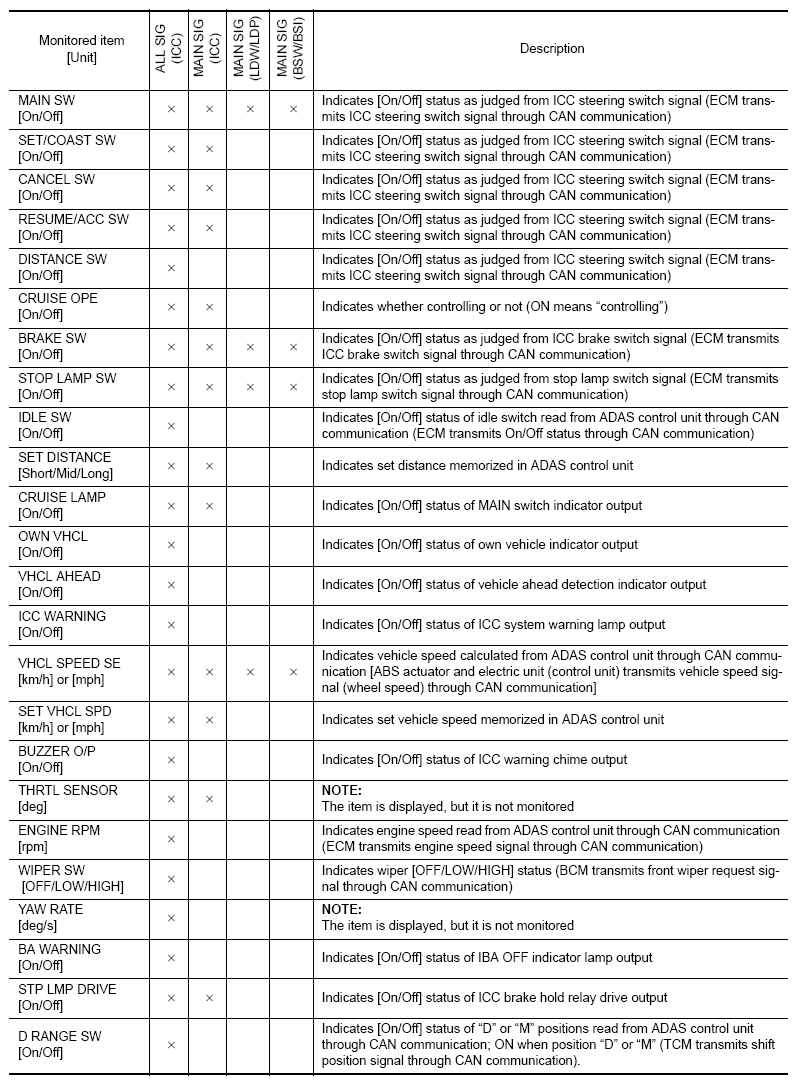

Fig 1: Data Monitor Chart (1 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.

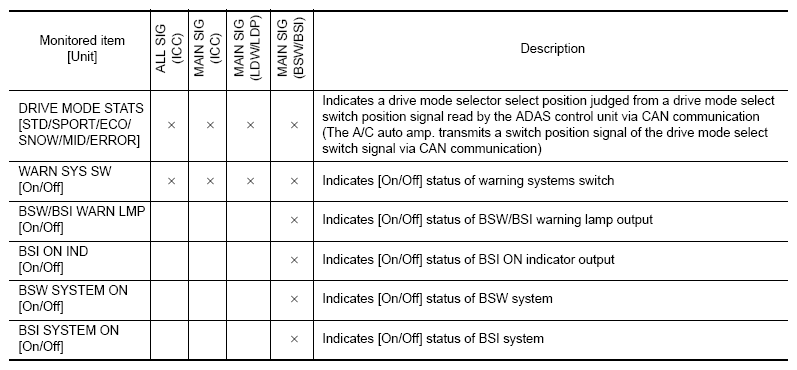

Fig 2: Data Monitor Chart (2 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.

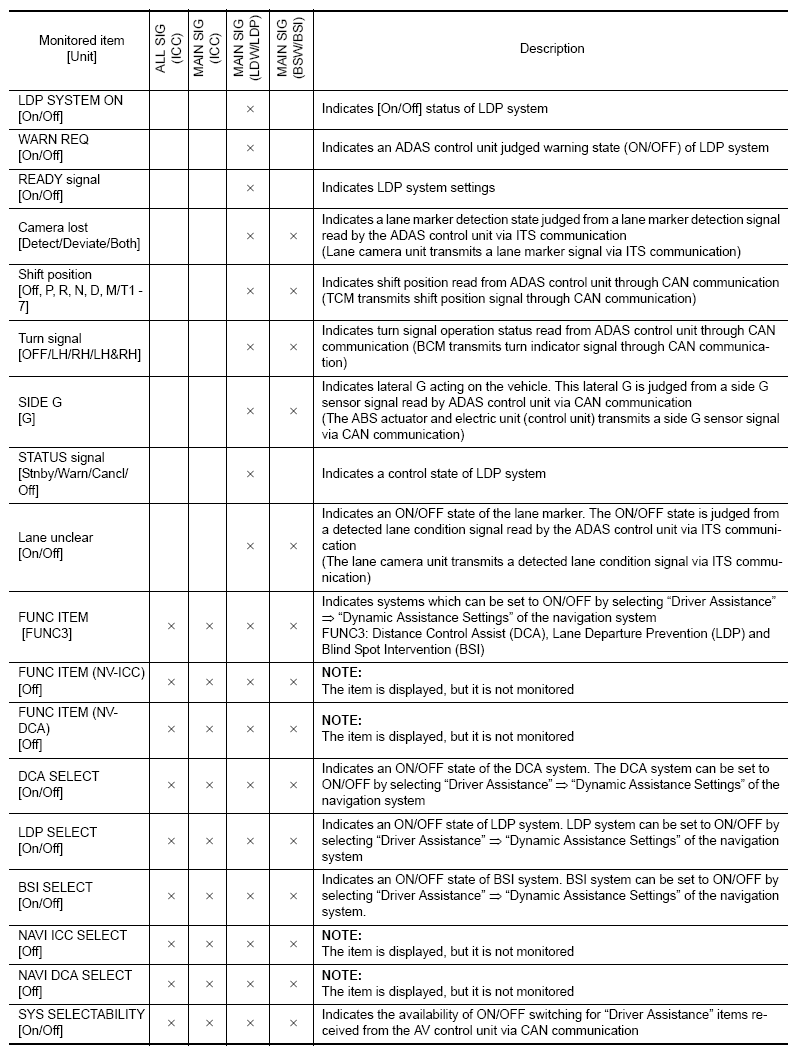

Fig 3: Data Monitor Chart (3 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.

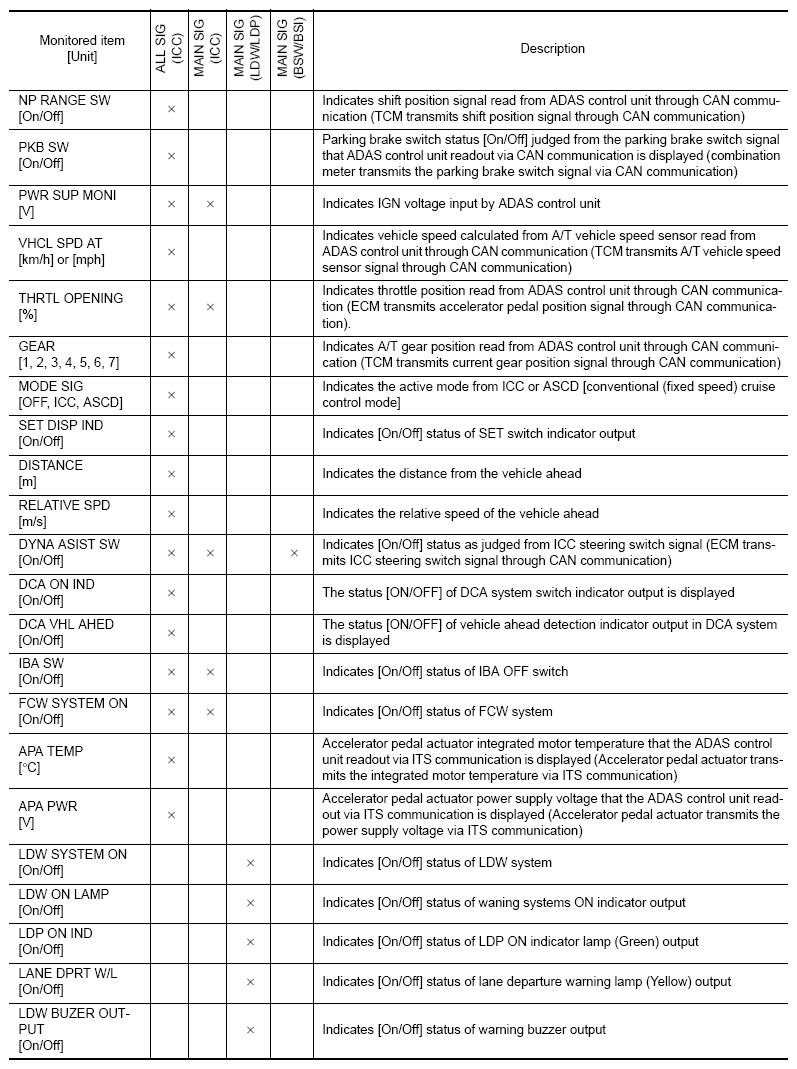

Fig 4: Data Monitor Chart (4 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.
