Components Location

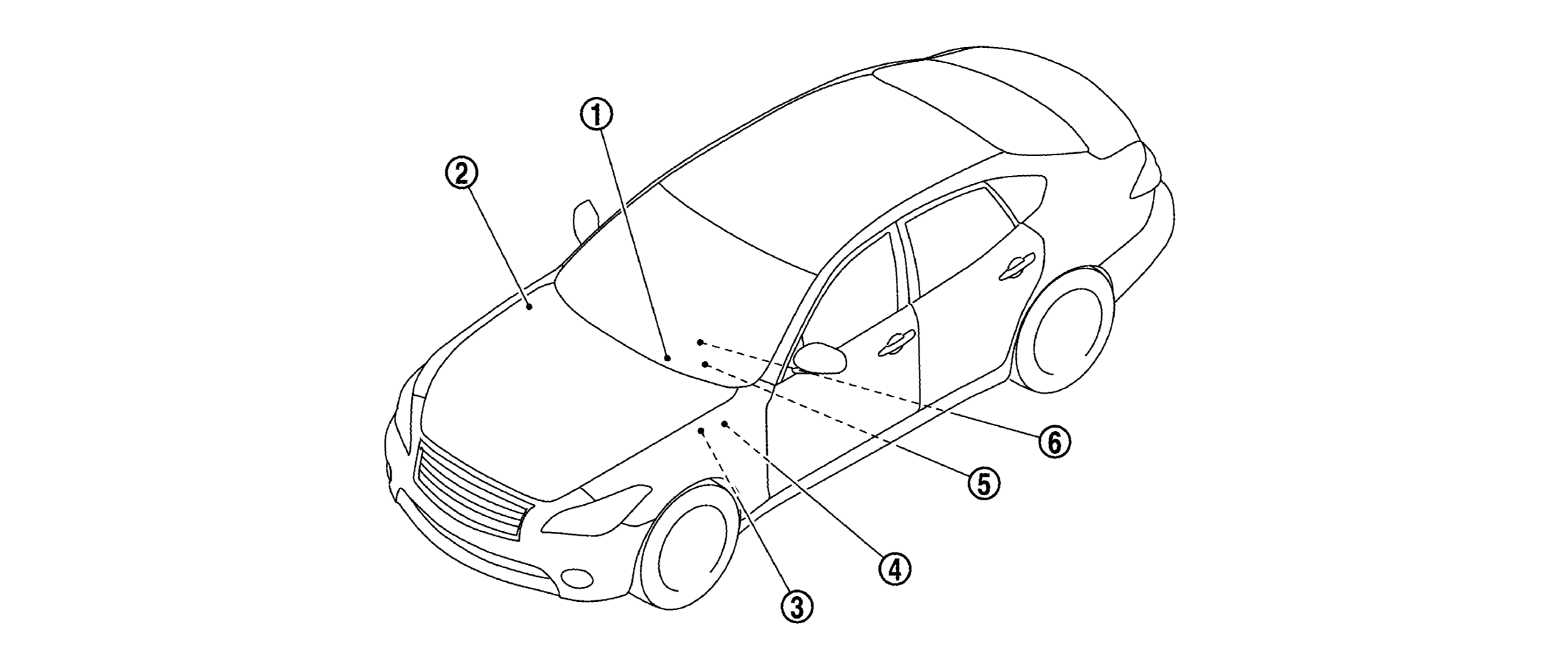

Fig 1: Power Distribution System Components Location

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Push-button ignition switch	2.	IPDM E/R Refer to COMPONENTS LOCATION	3.	Stop lamp switch Refer to COMPONENTS LOCATION
4.	BCM Refer to COMPONENTS LOCATION	5.	TCM Refer to COMPONENTS LOCATION	6.	A/T shift selector (detention switch) Refer to COMPONENTS LOCATION
