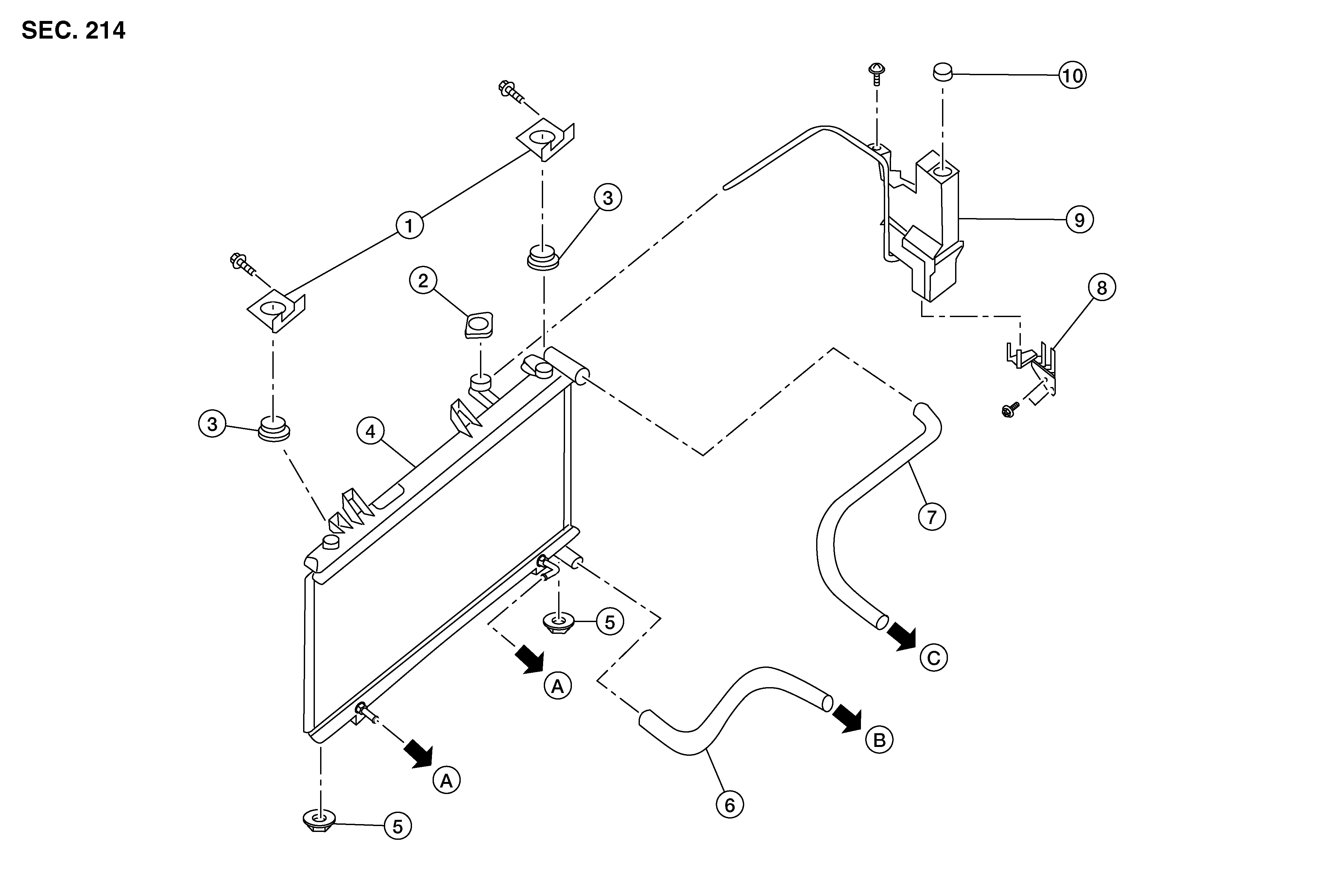

Exploded View

1.

Bracket

2.

Radiator cap

3.

Mounting rubber (upper)

4.

Radiator

5.

Mounting rubber (lower)

6.

Radiator hose lower

7.

Radiator hose upper

8.

Bracket

9.

Reservoir tank

10.

Reservoir tank cap

A.

To CVT oil warmer hose. Refer to EXPLODED VIEW .

B.

To water inlet. Refer to Exploded View .

C.

To water outlet. Refer to Exploded View .
