Chassis Control Display

DESIGN/PURPOSE

• The warning message is displayed on the information display when "Chassis Control" detected the system malfunction.
• Each chassis control system information is displayed on the information display.
  NOTE:

  • hill start assist function: Refer to

    Chassis Control Display .

  • Automatic brake hold function: Refer to Chassis Control Display .

Warning Message

Design	Warning Message
-	Chassis Control System Error. See Owner's Manual

System Information

Design	Description

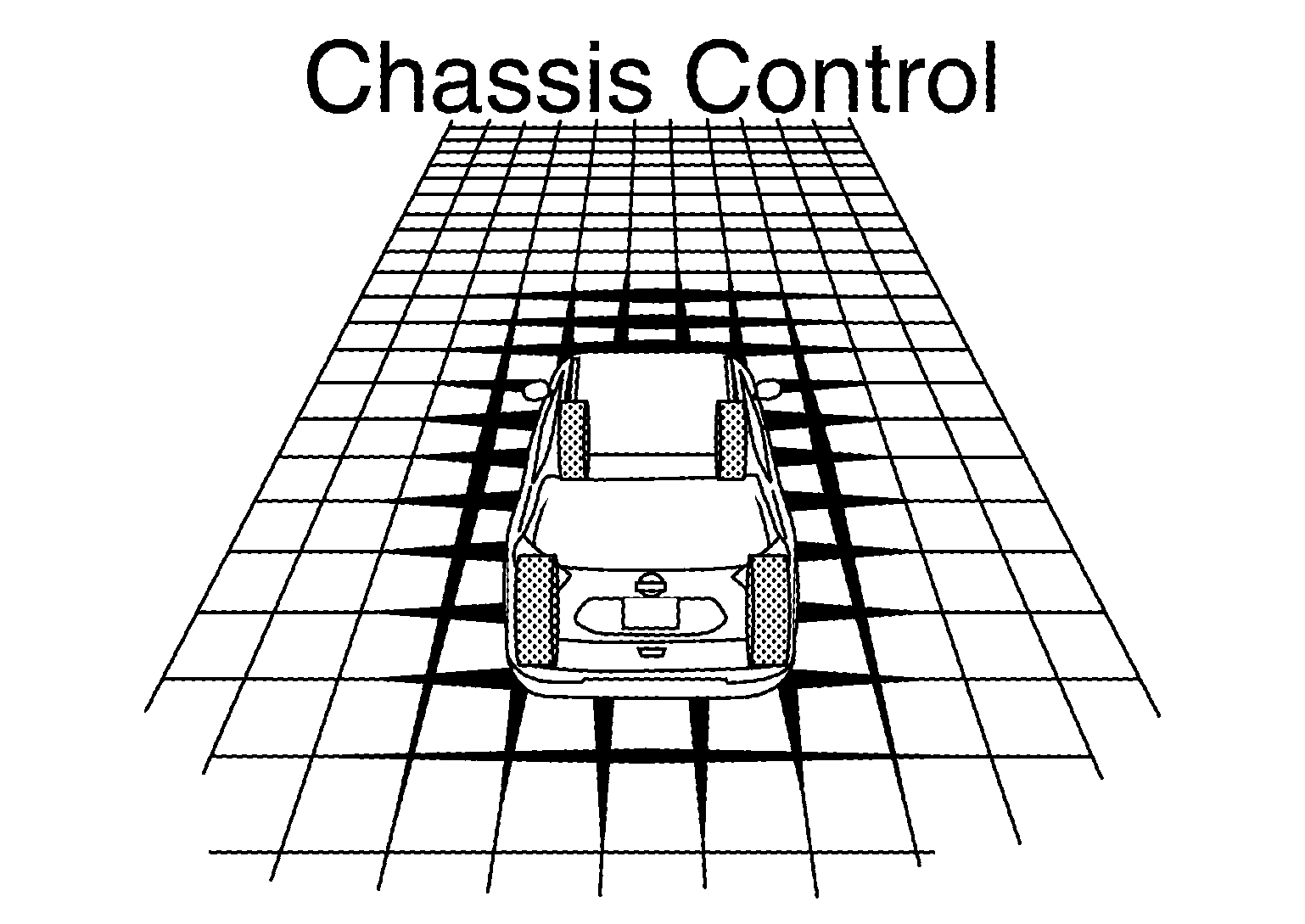

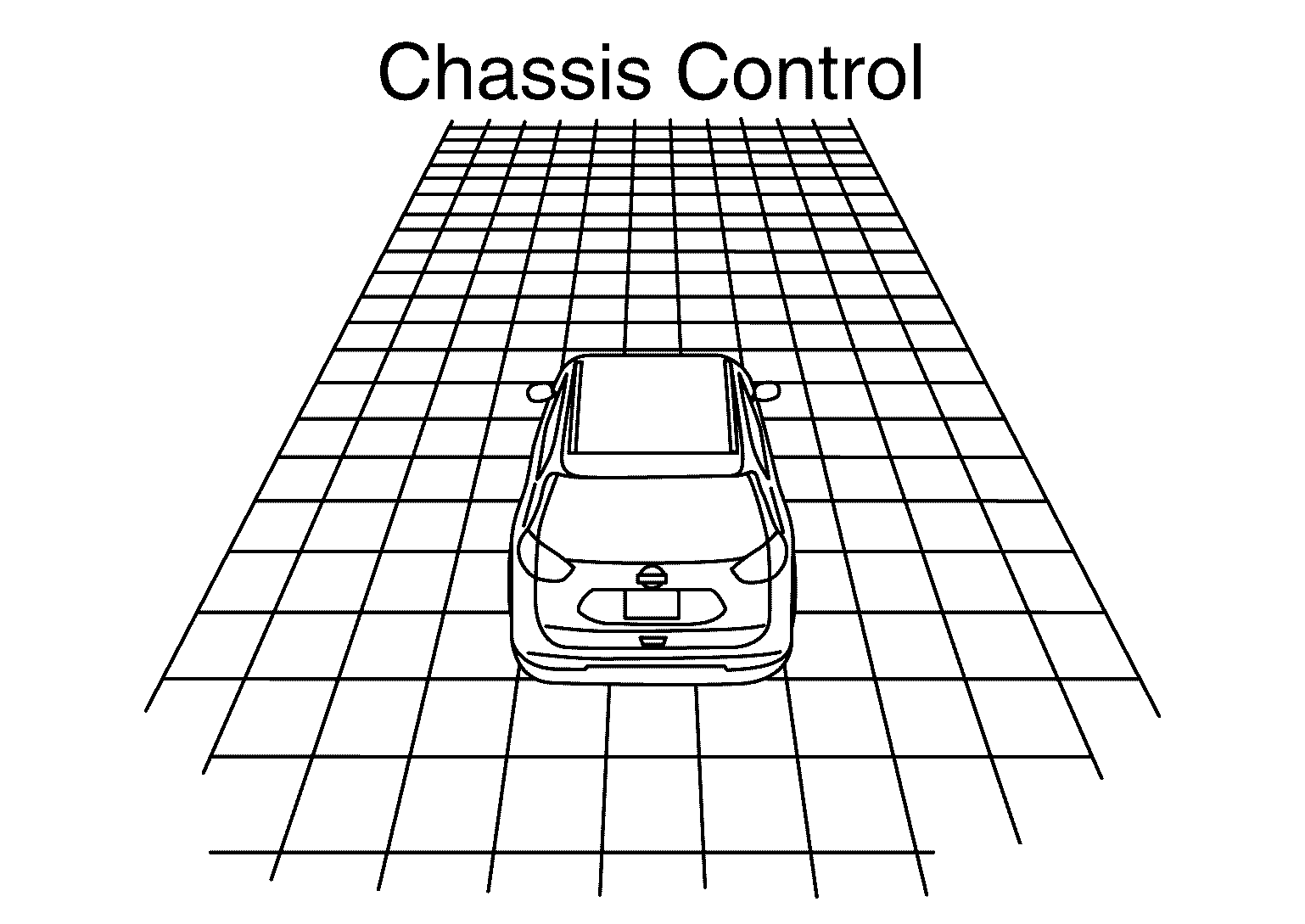

Courtesy of NISSAN	Active trace control function inactive.

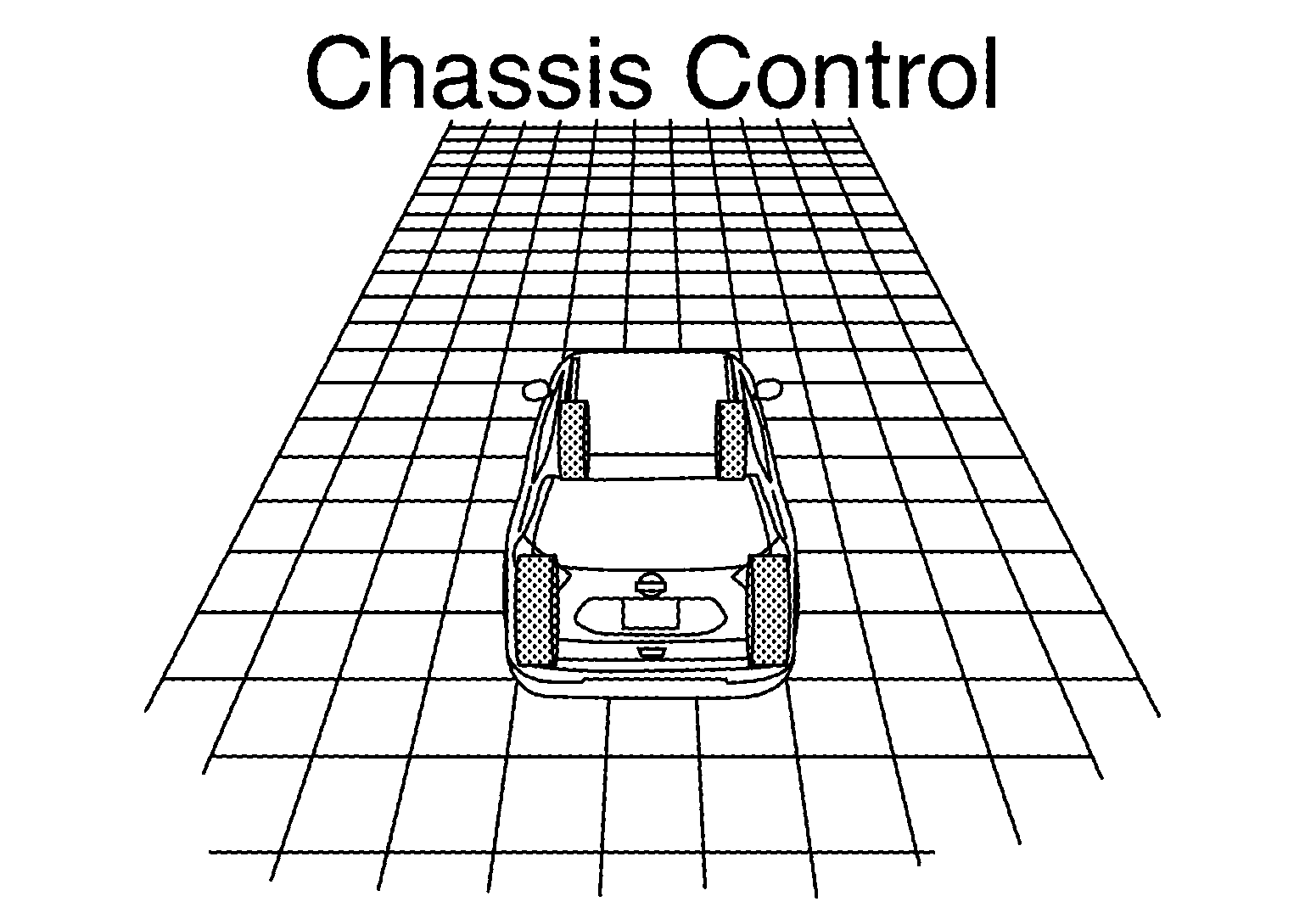

Courtesy of NISSAN	Active trace control function is active. (Steering angle is less than the specified angle.)

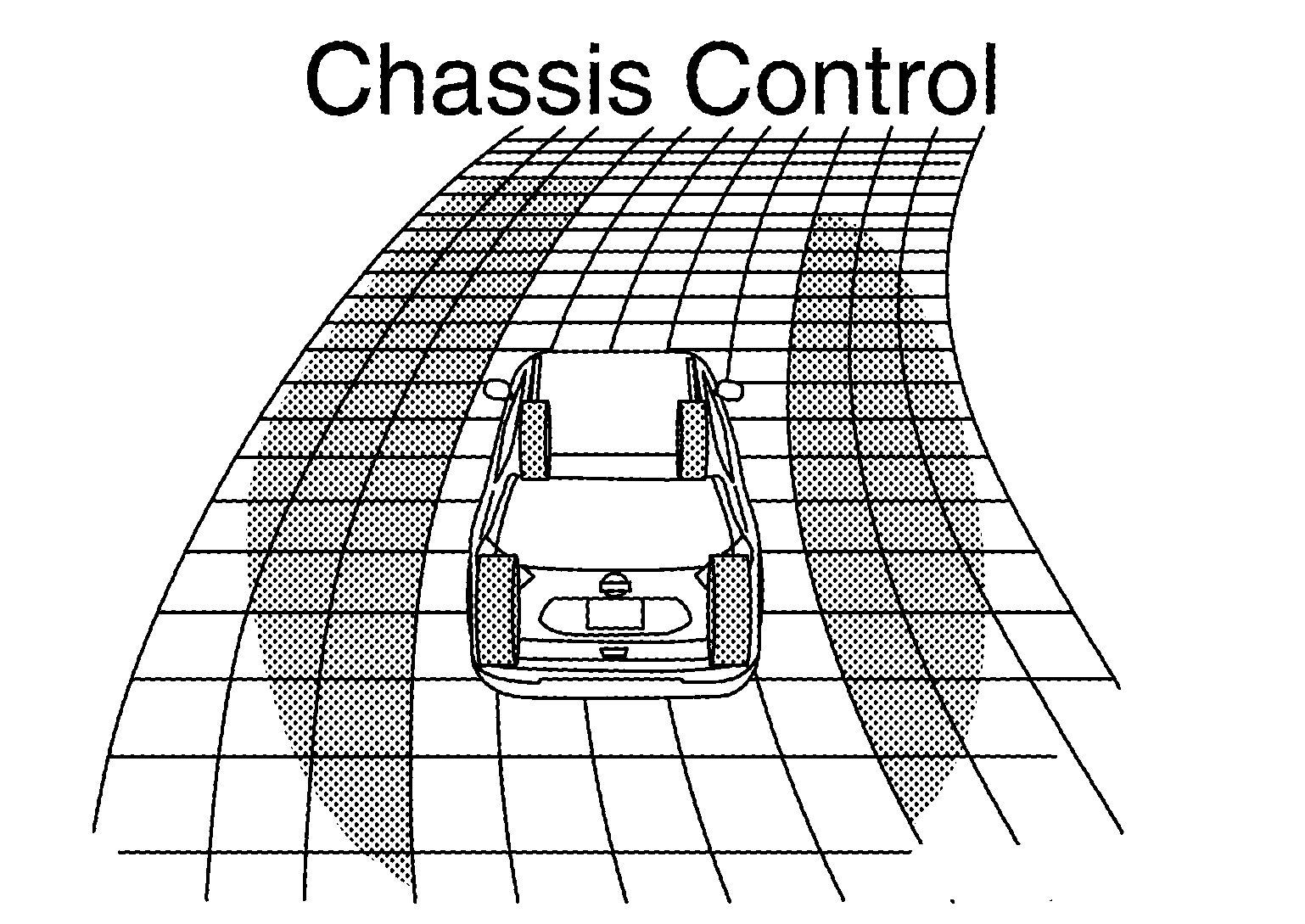

Courtesy of NISSAN	Active trace control function is active. (Steering angle is the specified angle or more in the leftward direction.)

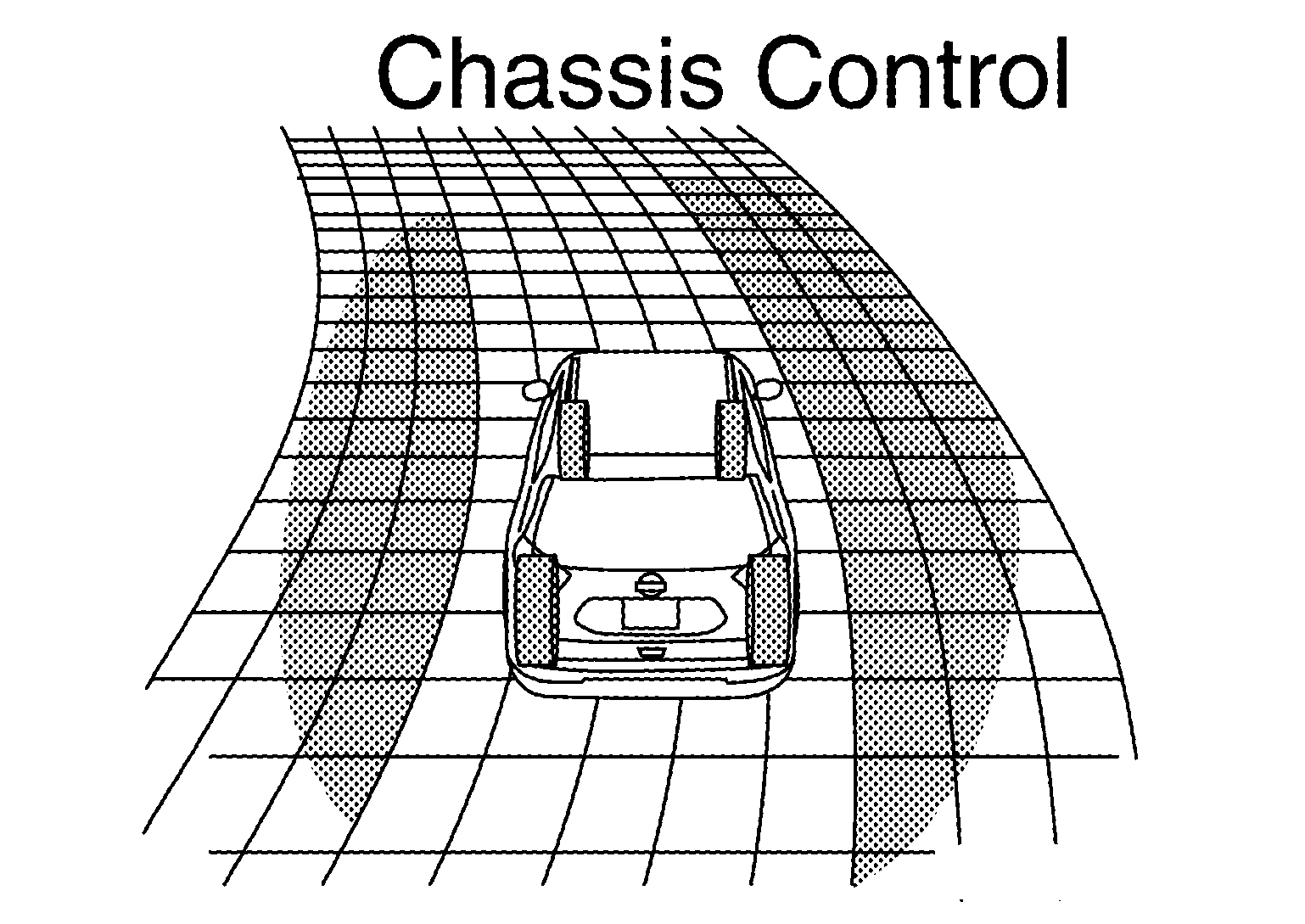

Courtesy of NISSAN	Active trace control function is active. (Steering angle is the specified angle or more in the rightward direction.)

Design	Description
Courtesy of NISSAN	Active engine brake (cornering control) function inactive.
Courtesy of NISSAN	Active engine brake (cornering control) function is active. (Steering angle is less than the specified angle.)
Courtesy of NISSAN	Active engine brake (cornering control) function is active. (Steering angle is the specified angle or more in the leftward direction.)
Courtesy of NISSAN	Active engine brake (cornering control) function is active. (Steering angle is the specified angle or more in the rightward direction.)

Design	Description
Courtesy of NISSAN	Active ride control (brake control) function inactive.
Courtesy of NISSAN	Active ride control (brake control) function is active.

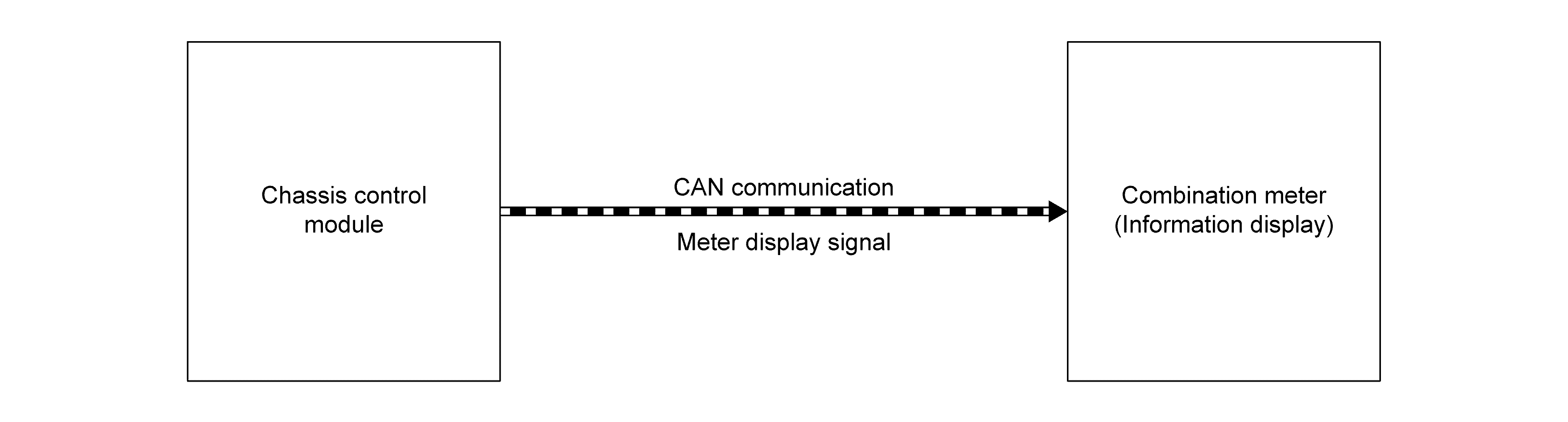

SYSTEM DIAGRAM

Courtesy of NISSAN

SIGNAL PATH

Active Trace Control Function

• The chassis control module transmits a active trace control display request signal to the combination meter via CAN communication.
• The combination meter shows the chassis warning display on the information display, according to the signal.

Active Engine Brake Function

• The chassis control module transmits a active engine brake display request signal to the combination meter via CAN communication.
• The combination meter shows the chassis control display on the information display, according to the signal.

Active Ride Control Function

• The chassis control module transmits a active ride control display request signal to the combination meter via CAN communication.
• The combination meter shows the chassis control display on the information display, according to the signal.

Malfunction of Chassis Control System Detected

• The chassis control module transmits a chassis control module malfunction display request signal to the combination meter via CAN communication.
• The combination meter shows the chassis control display on the information display, according to the signal.

WARNING/INDICATOR OPERATING CONDITION

Warning

When all of the following conditions are satisfied

• Ignition switch is ON
• Chassis control system malfunction is detected. Refer to DTC Index .

Operating

• Active trace control function: Refer to System Description .
• Active engine brake function: Refer to System Description .
• Active ride control function: Refer to System Description .
