Section 723 (Rear Suspension): Spring(S): Installation
WARNING: This page is about a different car, the 2020 Chrysler 300 and 2019 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Installation process is the same for both sides of the vehicle.
NOTE:
Rear coil springs are interchangeable.

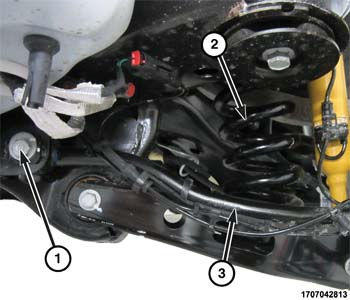

- Install coil spring (2) with isolators into spring pocket of spring link fitting lower isolator to shape of pocket, then align top of spring with body mount.
- Install rear crossmember assembly. Refer to CROSSMEMBER, TRANSMISSION, INSTALLATION .
- Install the tire and wheel assembly. Refer to INSTALLATION .
- Remove the support and lower the vehicle.
- Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
