Assembly, Variable Valve Timing: Installation
WARNING: This page is about a different variant/trim than selected.

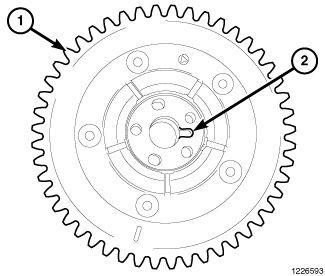

- Align the slot (2) in the phaser (1) with the dowel on the camshaft.CAUTION:
Never attempt to disassemble the camshaft phaser, severe engine damage could result.
- Position the phaser (2) in place and install phaser retaining bolt (1) and tighten to the proper specifications. Refer to TORQUE SPECIFICATIONS .
- Install the engine timing cover. Refer to INSTALLATION .
