Assembly, Variable Valve Timing: Removal

WARNING: This page is about a different variant/trim than selected.
GC0088050Courtesy of CHRYSLER GROUP, LLC
CAUTION:

Never attempt to disassemble the camshaft phaser, severe engine damage could result.

  1. Remove the engine timing cover. Refer to REMOVAL  .

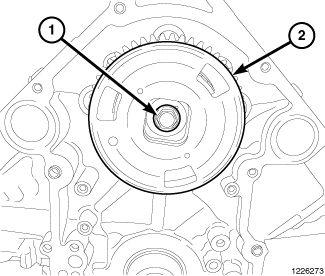

  2. Remove bolt (1) and the camshaft phaser (2).
