3rd GEAR THRUST CLEARANCE

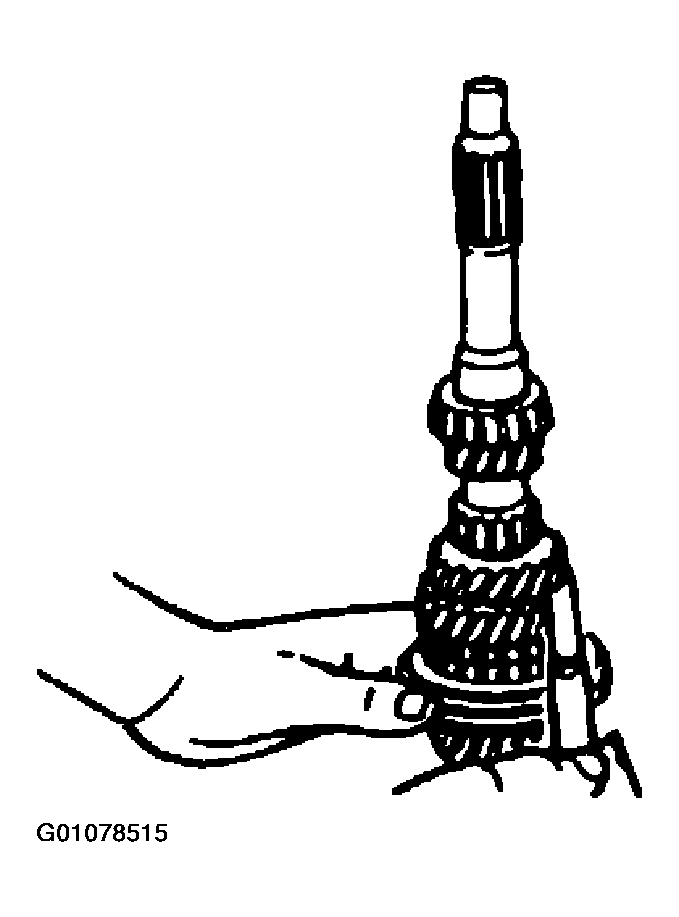

- Measure clearance between 3rd gear and 2nd gear.
Clearance: 0.002~0.008 in (0.05~0.20 mm)
Maximum: 0.010 in (0.25 mm)
- If clearance exceeds maximum, check contact surfaces of 3rd gear, 2nd gear and clutch hub (3rd/4th). Replace worn and damaged parts.
