Secondary Shaft Assembly

Measure thrust clearance of 1st gear and 2nd gear before disassembly. Refer to PREINSPECTION .
Disassemble in order shown in figure. Refer to DISASSEMBLY NOTE .

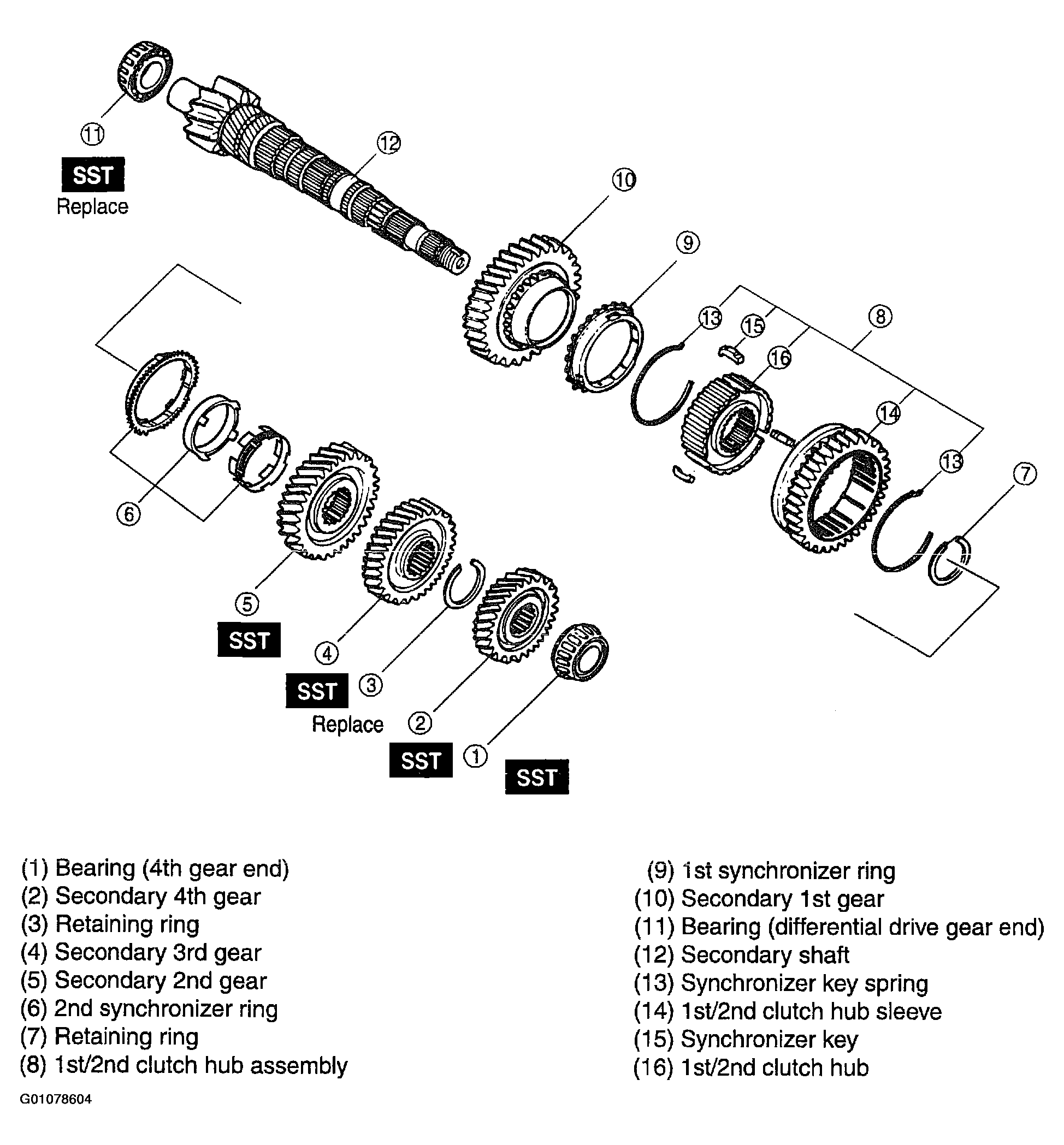

Fig 1: Illustrating Output Shaft Components
Courtesy of KIA MOTORS AMERICA, INC.
