Oil Seal (Differential)

Using SST (OK201 170 AA1/K94U-0001-Q) and hammer, tap new oil seal in evenly until SST (OK201 170 AA1/K94U-0001-Q) contacts transaxle case.
Coat lip of oil seal with transaxle oil.

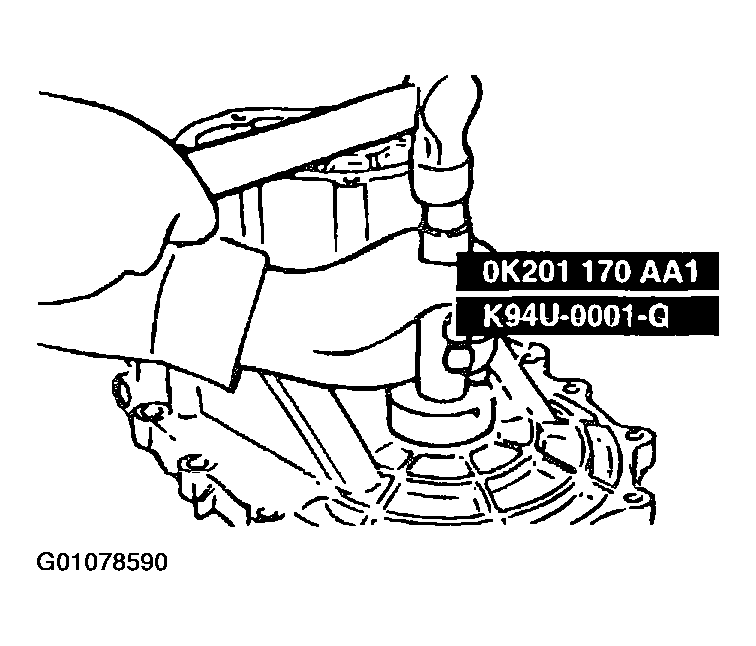

Fig 1: Installing Oil Seal
Courtesy of KIA MOTORS AMERICA, INC.
