Front Stabilizer & Control Link: Notes

For an exploded view of the front stabilizer and control link, see Fig 1 .

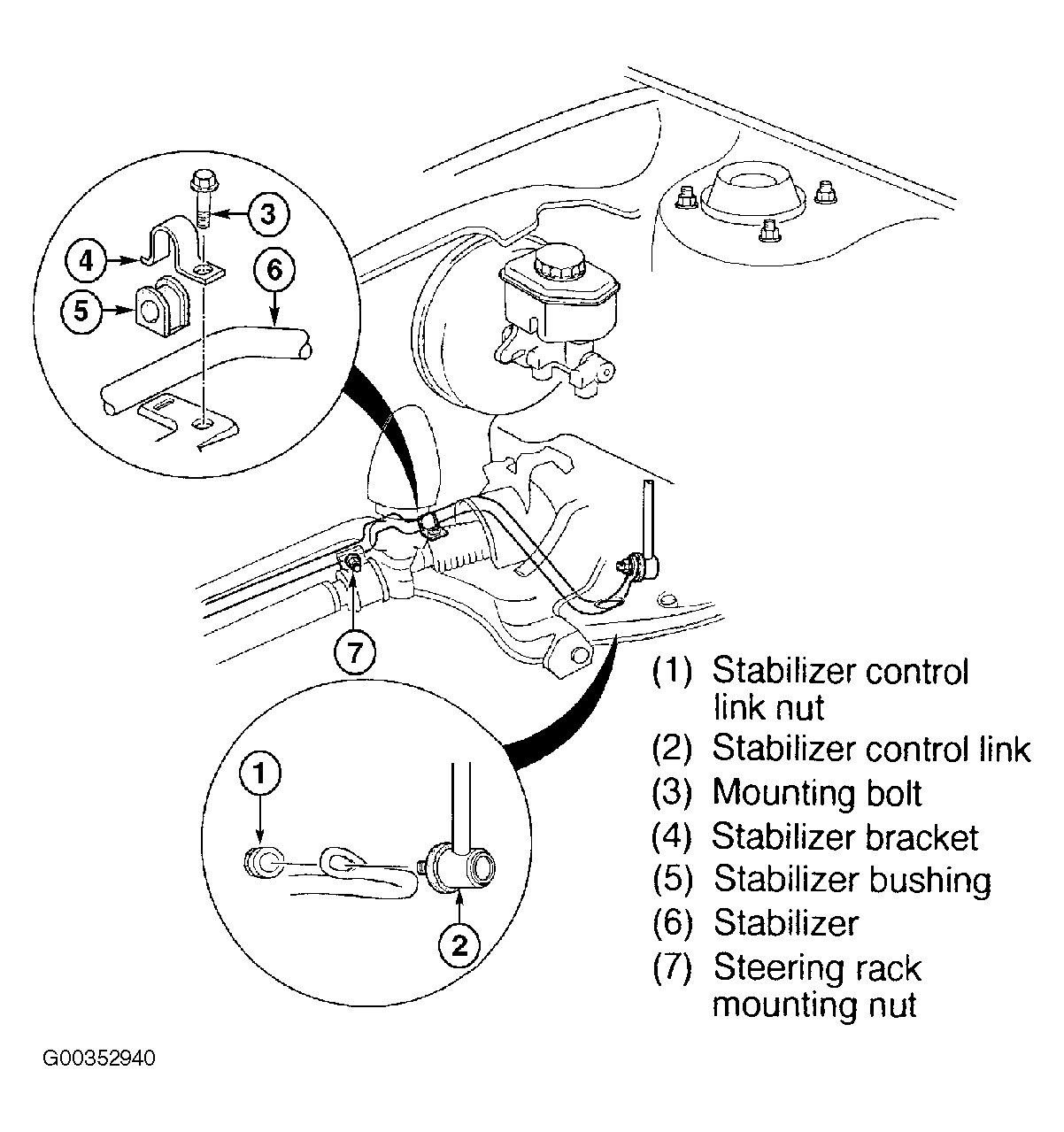

Fig 1: Exploded View Of Front Stabilizer & Control Link

Courtesy of KIA MOTORS AMERICA, INC.
