Front Airbag Sensor: Installation

WARNING: This page is about a different car, the 2006 Lexus IS 350 and 2006 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

  1. INSTALL FRONT AIRBAG SENSOR
    1. Check that the engine switch is off.
    2. Check that the battery negative (-) terminal is disconnected.
      CAUTION: After disconnecting the negative battery terminal, wait for at least 90 seconds before starting the operation.
    3. Connect the connector.
    4. Install the front airbag sensor with the 2 bolts.

      Torque: 9.0 N*m (92 kgf*cm, 80 in.*lbf)

      NOTE:
      • If the front airbag sensor has been dropped, or there are any cracks, dents or other defects in the case, bracket or connector, replace it with a new one.
      • When installing the front airbag sensor, be careful that the SRS wiring does not interfere with other parts and that it is not pinched between other parts.
    5. Check that there is no looseness in the installation parts of the front airbag sensor.

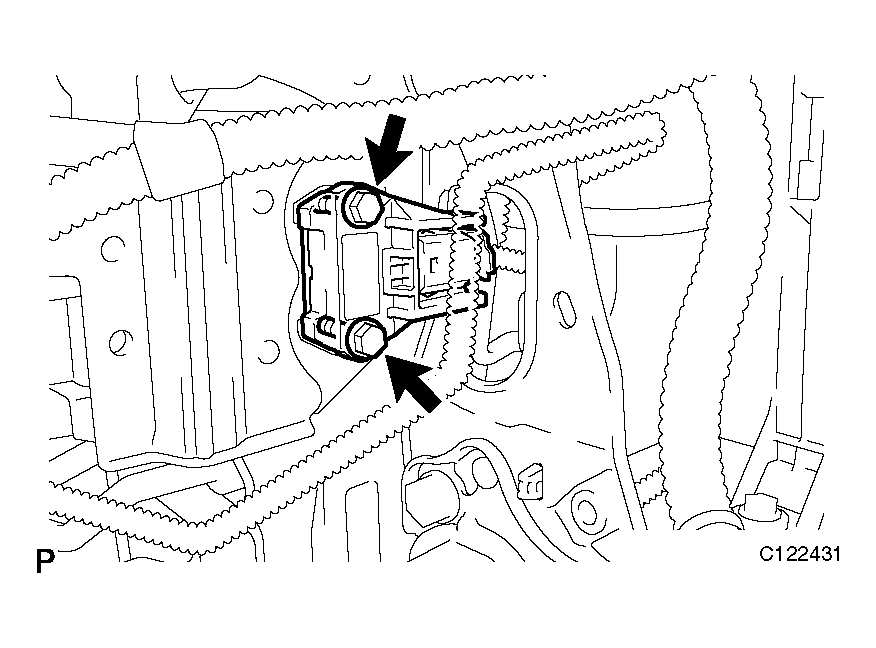

    Fig 1: Identifying Front Airbag Sensor
    G04048910Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL HEADLIGHT ASSEMBLY (See  INSTALLATION  )
  3. INSTALL FRONT BUMPER ASSEMBLY
  4. INSTALL FRONT UPPER FENDER PROTECTOR LH (See  INSTALLATION  )
  5. INSTALL ENGINE ROOM SIDE COVER LH
  6. INSTALL COOL AIR INTAKE DUCT SEAL (See  INSTALLATION  )
  7. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  8. INSPECT SRS WARNING LIGHT
    1. Inspect the SRS warning light (PROBLEM SYMPTOMS TABLE  ).
  9. VEHICLE PREPARATION FOR HEADLIGHT AIM ADJUSTMENT (See  ADJUSTMENT  )
  10. PREPARATION FOR HEADLIGHT AIMING (Using a tester) (See  ADJUSTMENT  )
  11. PREPARATION FOR HEADLIGHT AIMING (Using a screen) (See  ADJUSTMENT  )
  12. HEADLIGHT AIMING INSPECTION (See  ADJUSTMENT  )
  13. HEADLIGHT AIMING ADJUSTMENT (See  ADJUSTMENT  )
  14. VEHICLE PREPARATION FOR FOG LIGHT AIM (See  ADJUSTMENT  )
  15. PREPARATION FOR FOG LIGHT AIMING (See  ADJUSTMENT  )
  16. FOG LIGHT AIMING INSPECTION (See  ADJUSTMENT  )
  17. FOG LIGHT ADJUSTMENT (See  ADJUSTMENT  )
  18. PERFORM INITIALIZATION
    1. Perform initialization (See INITIALIZATION ).

      HINT:

      Some systems need initialization after reconnecting the cable to the negative battery terminal.
