Bleeding Of Brake System: Rear

Fig 1: Identifying Bleeder Screw

G07416080

Courtesy of KIA MOTORS AMERICA, INC.

6. Repeat step 5 until there are no more bubbles in the fluid for each wheel.

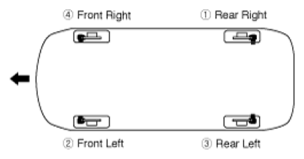

Fig 2: Identifying Wheel Bleeding Sequence
Courtesy of KIA MOTORS AMERICA, INC.
7. Tighten the bleeder screw.
Bleed screw tightening torque:

7 ~ 13 Nm (0.7 ~ 1.3 kgf.m, 5.4 ~ 9.5 lb-ft)
