O2 Sensor Signal Inspection

  1. Ignition "OFF".
  2. Connect VMI to GDS and set up an oscilloscope as follow (4-channel);

    Channel A (+): Pin No. 3 (V_IP) terminal of Upstream O2 Sensor.

    Channel A (-): Ground

    Channel B (+): Pin No. 1 (Signal) terminal of Downstream O2 Sensor.

    Channel B(-): Ground

  3. Ignition "ON" & Engine "ON".

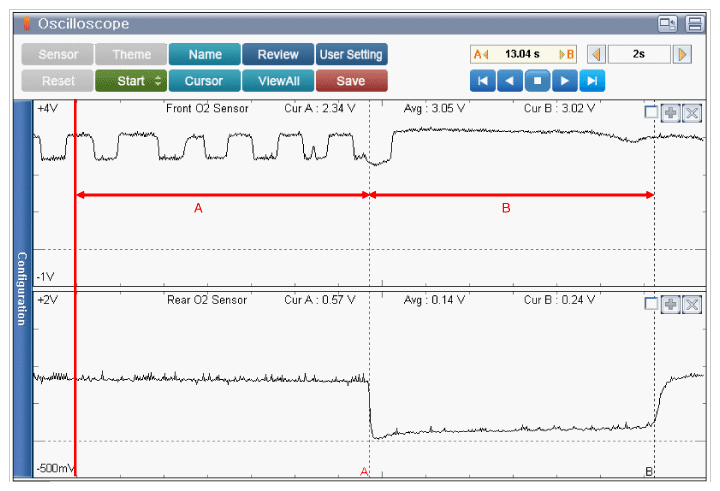

    Fig 1: Display - Upstream/Downstream O2 Sensor Signal Waveform (Warm-Up Condition)
    G11828469Courtesy of KIA MOTORS AMERICA, INC.
    1. Approx. 2500 RPM.
    2. Fuel Cut after acceleration.
  4. Is measured value within speechification?

    YES

    • Go to next procedure.

    NO

    • Carefully re-do this troubleshooting guide steps.
    • If no problems were found with the circuits or connectors, Replace the O2 Sensor and then go to "Verification Of Vehicle Repair " procedure.
CAUTION:
  • Install the component with the specified torques.
  • Note that internal damage may occur when the component is dropped or mis-treated.
CAUTION:
  • DO NOT use a cleaner, spray, or grease to sensing element and connector of the sensor because oil component in them may cause malfunction or affects on sensor performance.
  • Sensor and its wiring may be damaged in case of contacting with the exhaust system(Exhaust Manifold, Catalytic Converter, and others).
