Monitor DTC Status

Connect GDS to Data Link Connector(DLC).
Ignition "ON".
Monitor "Diagnostic Trouble Codes(DTC) " with GDS.

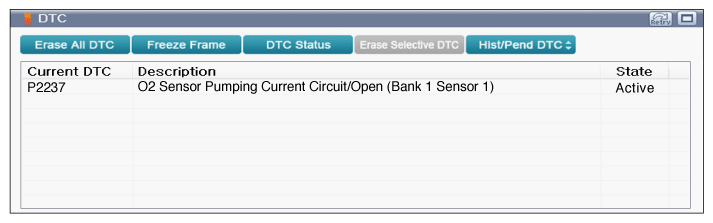

Fig 1: Display - DTC Description Of P2237
Courtesy of KIA MOTORS AMERICA, INC.
Is DTC status displayed as Present?
YES
- Go to Monitor GDS Data procedure below.
NO
- Go to "Verification Of Vehicle Repair " procedure.
