Engine Control System Diagnosis - 1.6L T (1 Of 3)
›
DTC P0136: O2 Sensor Circuit (Bank 1 - Sensor 2)
›
Component Location
Component Location

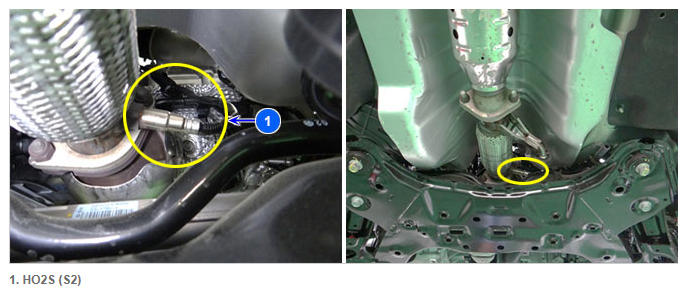

Fig 1: O2 Sensor Circuit (Bank 1/Sensor 2) Component Location
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
