Monitor DTC Status

Connect KDS to Data Link Connector (DLC).
Ignition "ON".
Monitor "Diagnostic Trouble Codes (DTC)" with KDS.

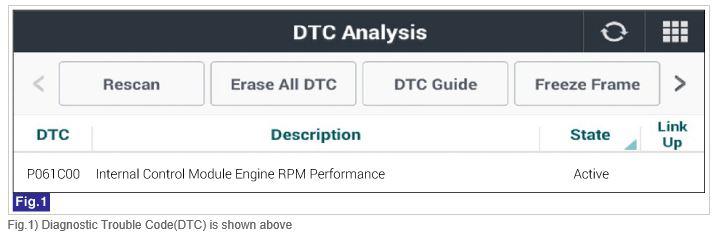

Fig 1: Screen Display - Diagnostic Trouble Codes (DTC)
Courtesy of KIA MOTORS AMERICA, INC.
Is DTC status displayed as Present?
YES
- Go to "Monitor KDS Data " procedure.
NO
- Go to "Verification Of Vehicle Repair " procedure.
