Component Inspection: Notes

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON" and engine "OFF".
  2. Engine "ON".
  1. Connect KDS to Data Link Connector (DLC).
  2. Perform "Actuation Test" of concerned component with KDS.

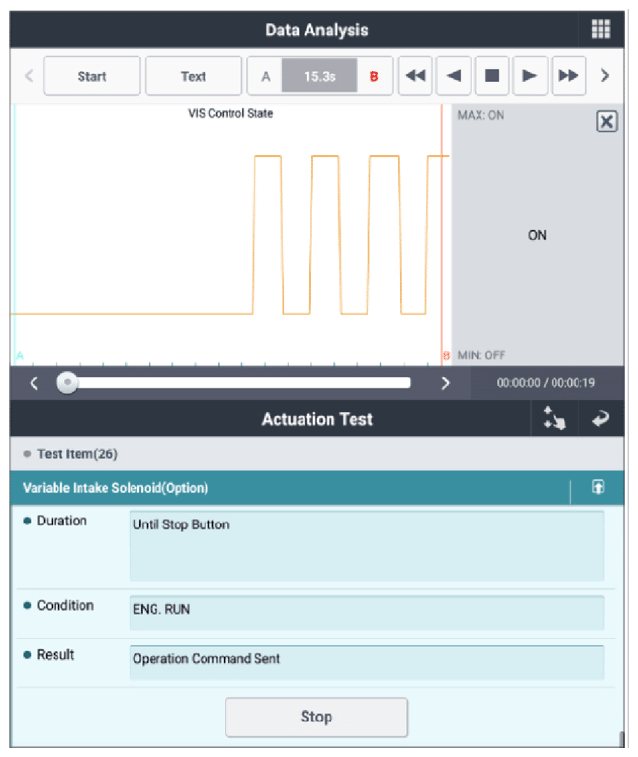

 Fig.1
G13299089Courtesy of KIA MOTORS AMERICA, INC.

Good

No Good
