Description & Operation: Notes

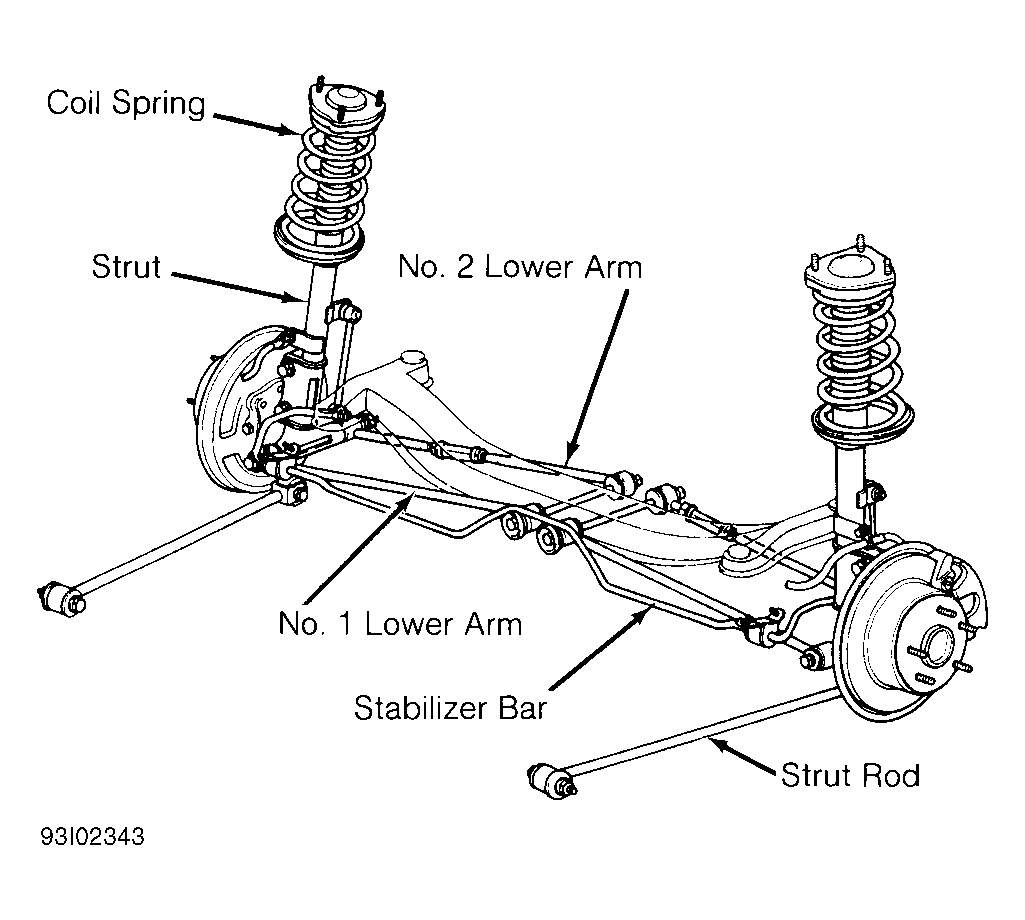

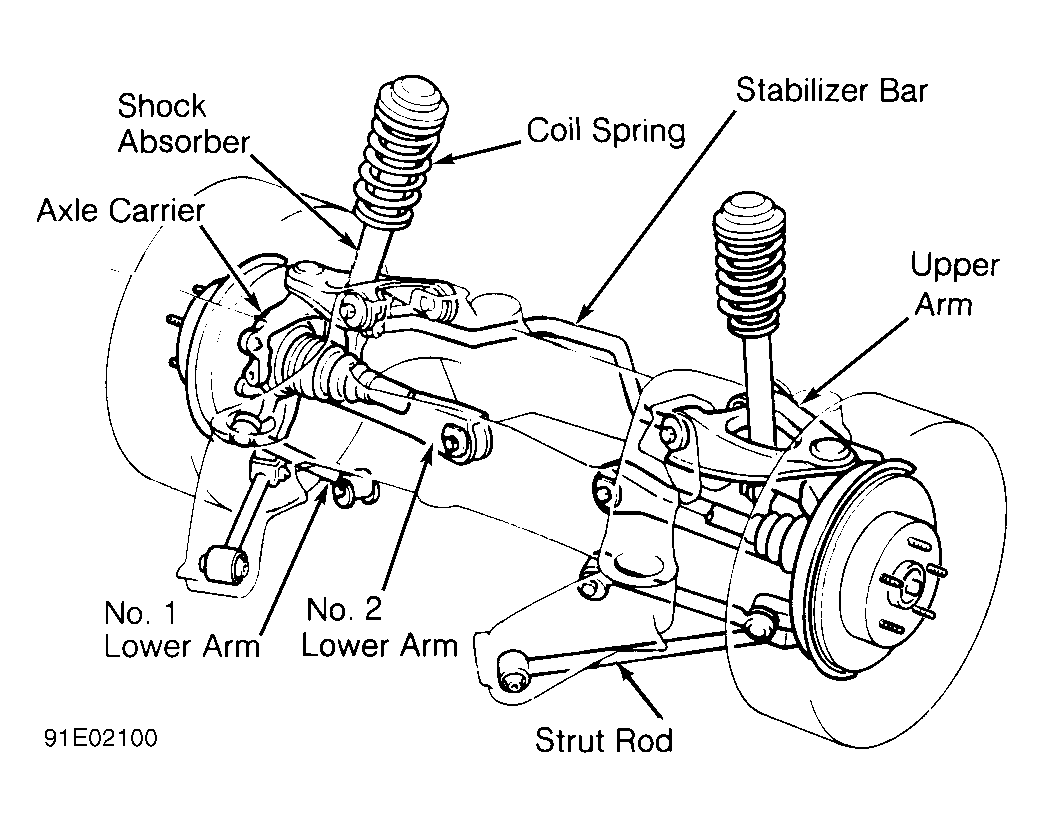

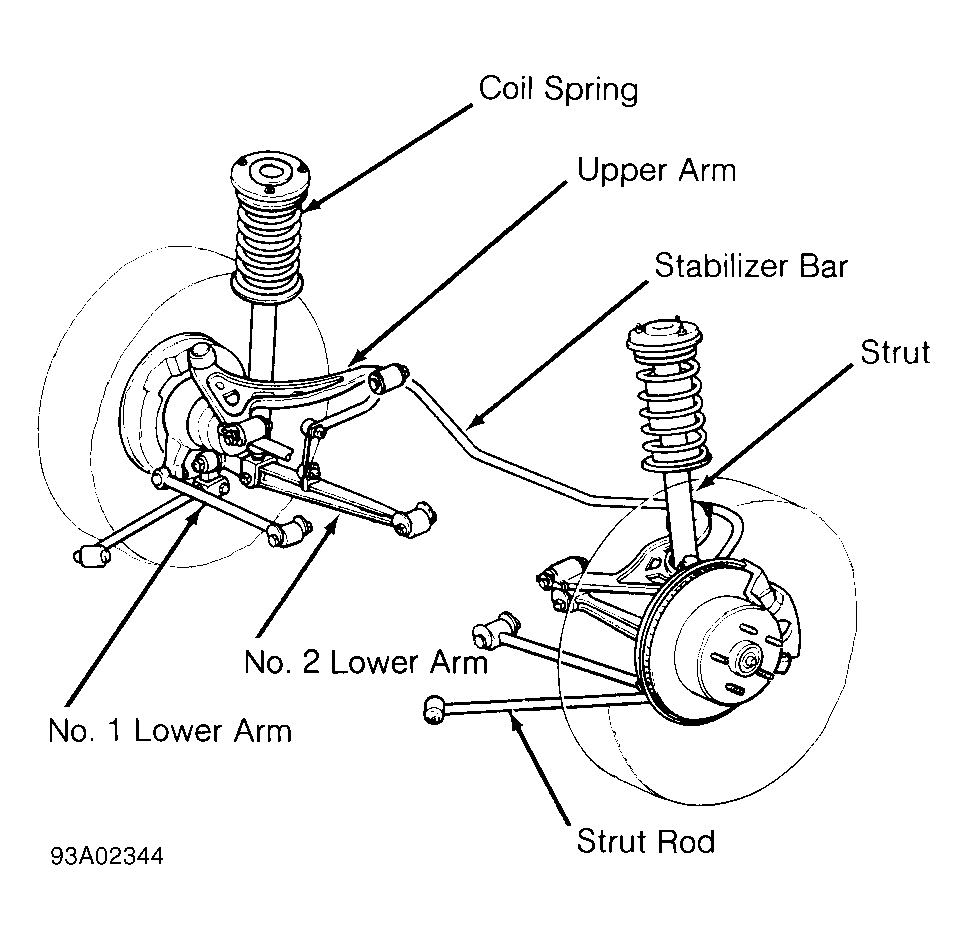

ES300 uses parallel suspension arms and strut rods. See Figure. LS400 suspension consists of upper "A" arms and unequal length lower arms and strut rods. See Figure. SC300 and SC400 use upper wishbones combined with unequal length lower arms and strut rods. See Figure. All vehicles use coil springs, shock absorbers and stabilizer bar.
