Fail-Safe Chart
WARNING: This page is about a different car, the 2004 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.
- AFS ECU
HINT:

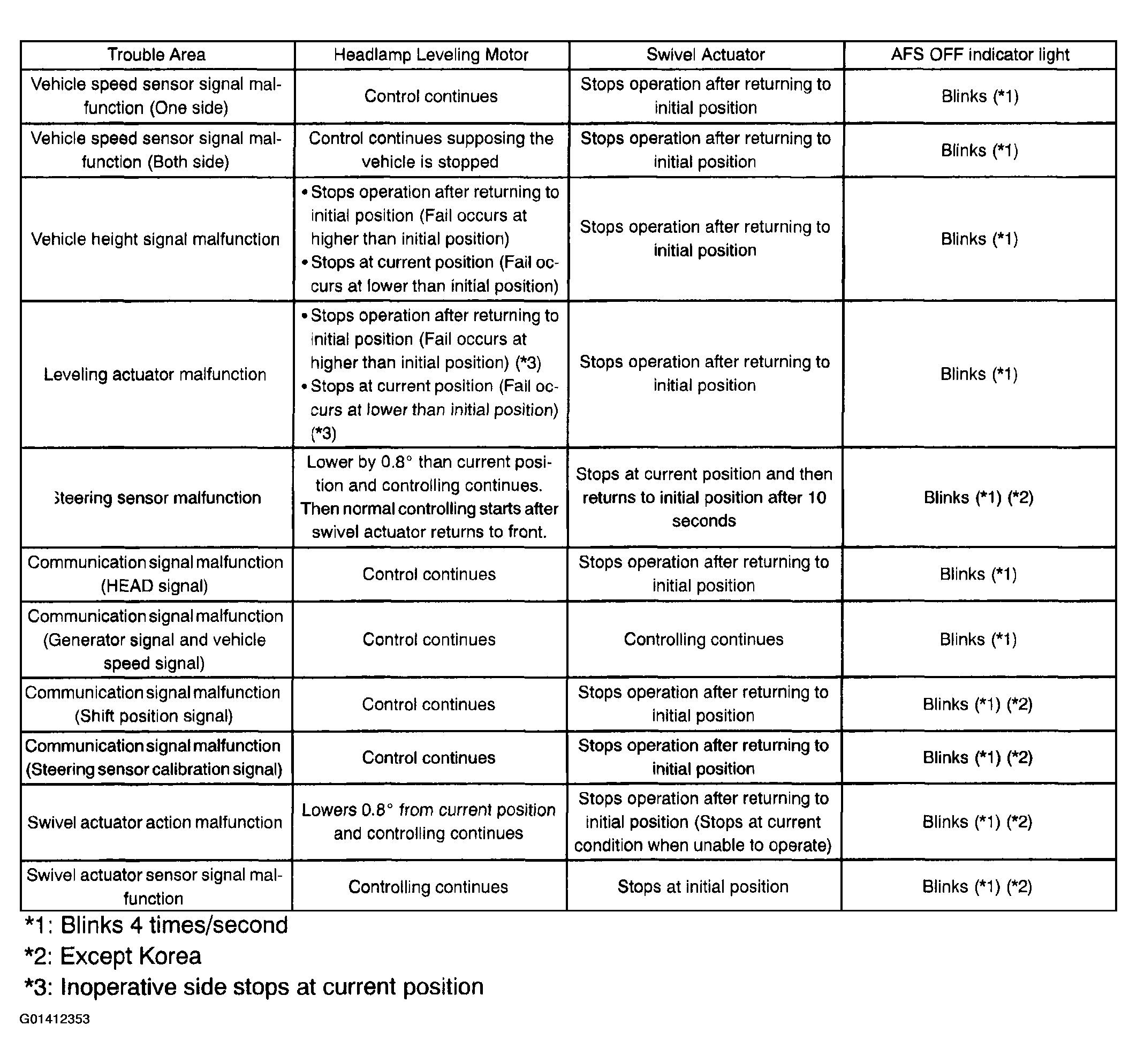

- The AFS ECU performs fail-safe when detecting the following troubles. The AFS OFF indicator light on the combination meter comes on at the same time.
- The AFS OFF indicator light is not available on Korea models. It has "Headlight Leveling" warning information of combination meter instead.
- If the AFS OFF indicator light comes on, inspect and repair in accordance with the "DIAGNOSTICS TROUBLE CODE CHART" and "PROBLEM SYMPTOMS TABLE" (see DIAGNOSTIC TROUBLE CODE CHART or PROBLEM SYMPTOMS TABLE ).
