Disc Player Changer: Replacement

WARNING: This page is about a different car, the 2003 Lexus GX 470. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

COMPONENTS: See LOCATION

REMOVE GLOVE COMPARTMENT DOOR SUB-ASSY (See REPLACEMENT )
REMOVE INSTRUMENT PANEL ORNAMENT (See REPLACEMENT )
REMOVE INSTRUMENT PANEL FINISH PANEL LOWER NO. 2 (See REPLACEMENT )
REMOVE DISC PLAYER CHANGER W/BRACKET
1. Remove the 4 bolts.
2. Release the 2 claws and pull the disc player changer w/bracket.
3. Disconnect the connectors and remove the disc player changer w/bracket.

  Fig 1: Removing Disc Player Changer W/Bracket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE DISC PLAYER BRACKET
1. Remove the 2 screws and disc player bracket.

  Fig 2: Removing Disc Player Bracket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE DISC PLAYER BRACKET
1. Remove the 2 screws and disc player bracket.

  Fig 3: Removing Disc Player Bracket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL DISC PLAYER CHANGER W/BRACKET
1. Connect the connectors.
2. Engage the 2 claws and place the disc player changer w/bracket temporarily on the body.
3. Install the 4 bolts and disc player changer w/bracket.
  NOTE: Install them in the order shown in Fig 4 .

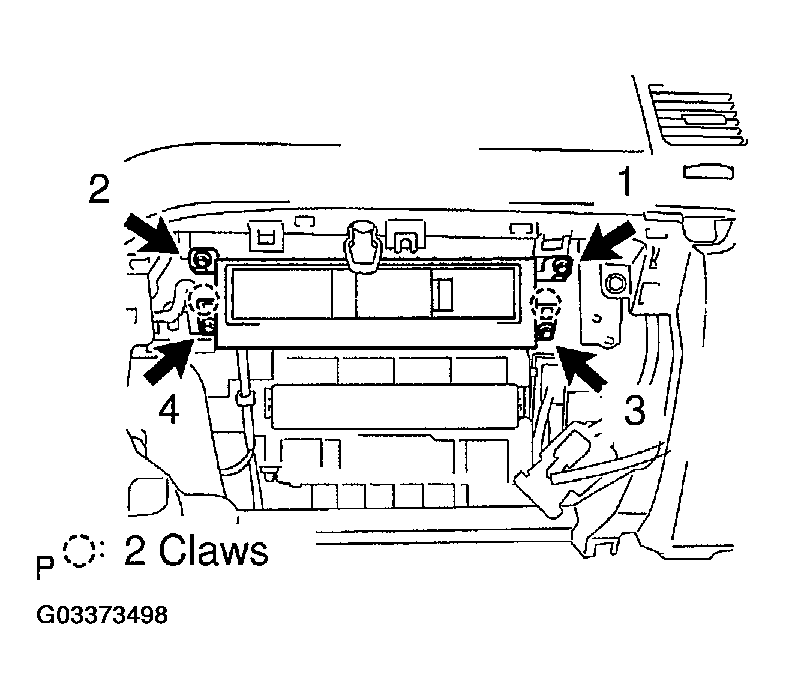

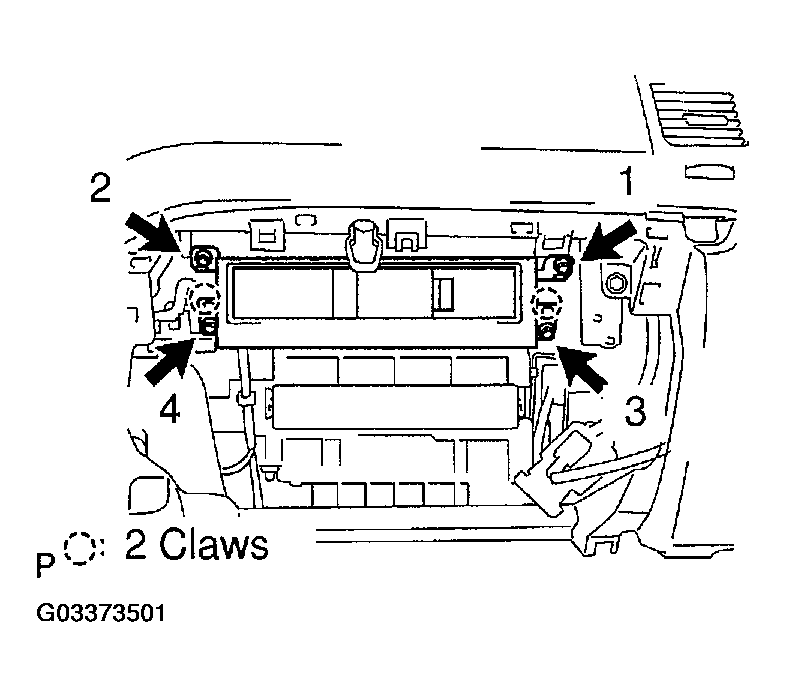

  Fig 4: Installing Disc Player Changer W/Bracket In Sequence
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
