Radio Receiver ASSY: Replacement

WARNING: This page is about a different car, the 2003 Lexus GX 470. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

COMPONENTS: See LOCATION

REMOVE CONSOLE UPPER PANEL GARNISH NO. 2 (See REPLACEMENT )
REMOVE CONSOLE UPPER PANEL GARNISH NO. 1 (See REPLACEMENT )
REMOVE INSTRUMENT PANEL GARNISH SUB-ASSY LH (See REPLACEMENT )
REMOVE INSTRUMENT PANEL GARNISH SUB-ASSY RH (See REPLACEMENT )
REMOVE INTEGRATION CONTROL & PANEL ASSY (See REPLACEMENT )
REMOVE RADIO BRACKET NO. 1

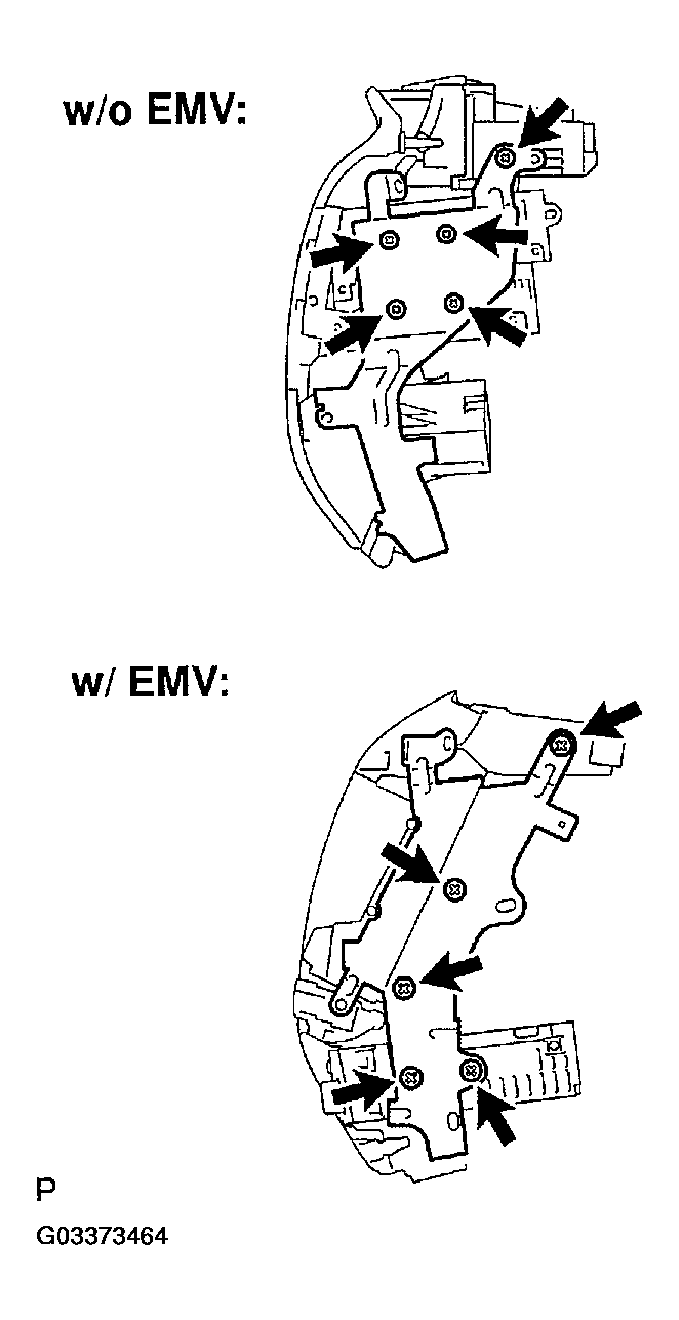

1. Remove the 5 screws.

  Fig 1: Removing Radio Bracket No. 1 (1 Of 2)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

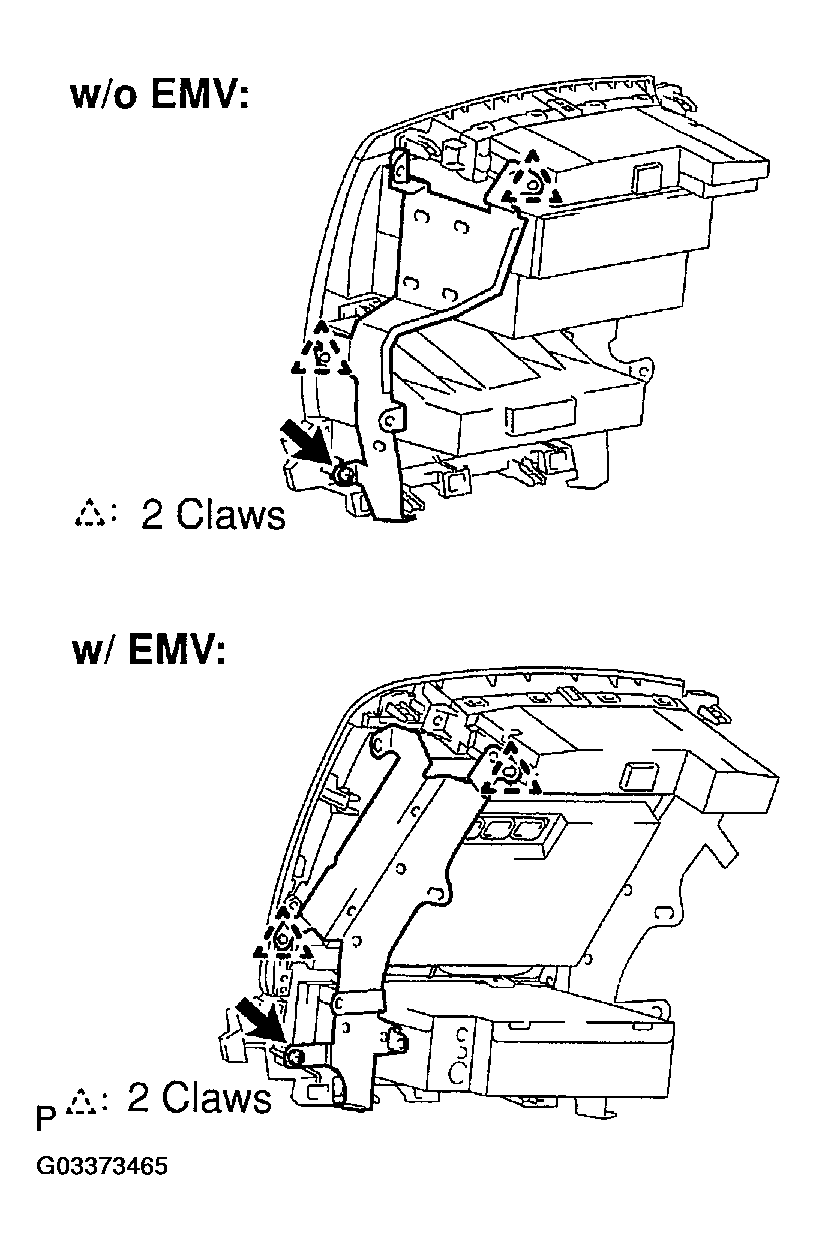

2. Remove the screw.
3. Release the 2 claws and remove the radio bracket No. 1

  Fig 2: Removing Radio Bracket No. 1 (2 Of 2)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE RADIO BRACKET NO. 2

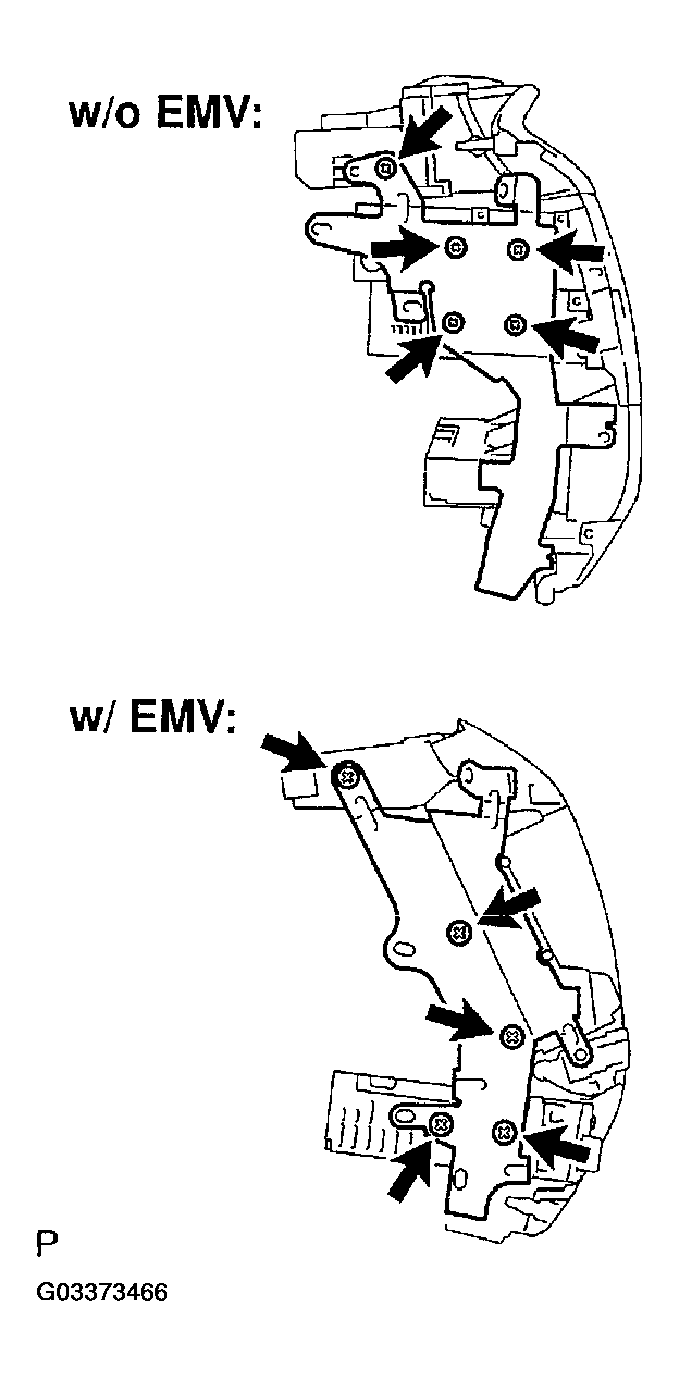

1. Remove the 5 screws.

  Fig 3: Removing Radio Bracket No. 2 (1 Of 2)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

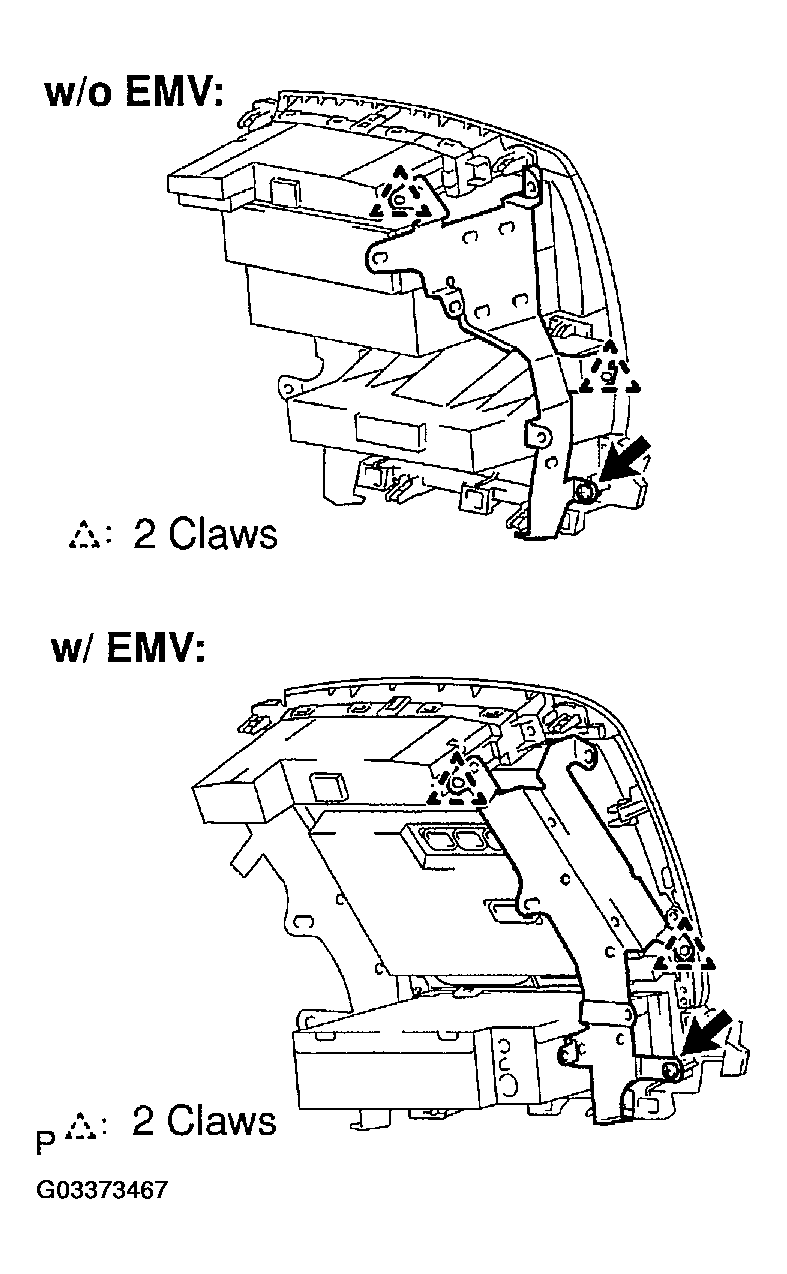

2. Remove the screw.
3. Release the 2 claws and remove the radio bracket No. 2.

  Fig 4: Removing Radio Bracket No. 2 (2 Of 2)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

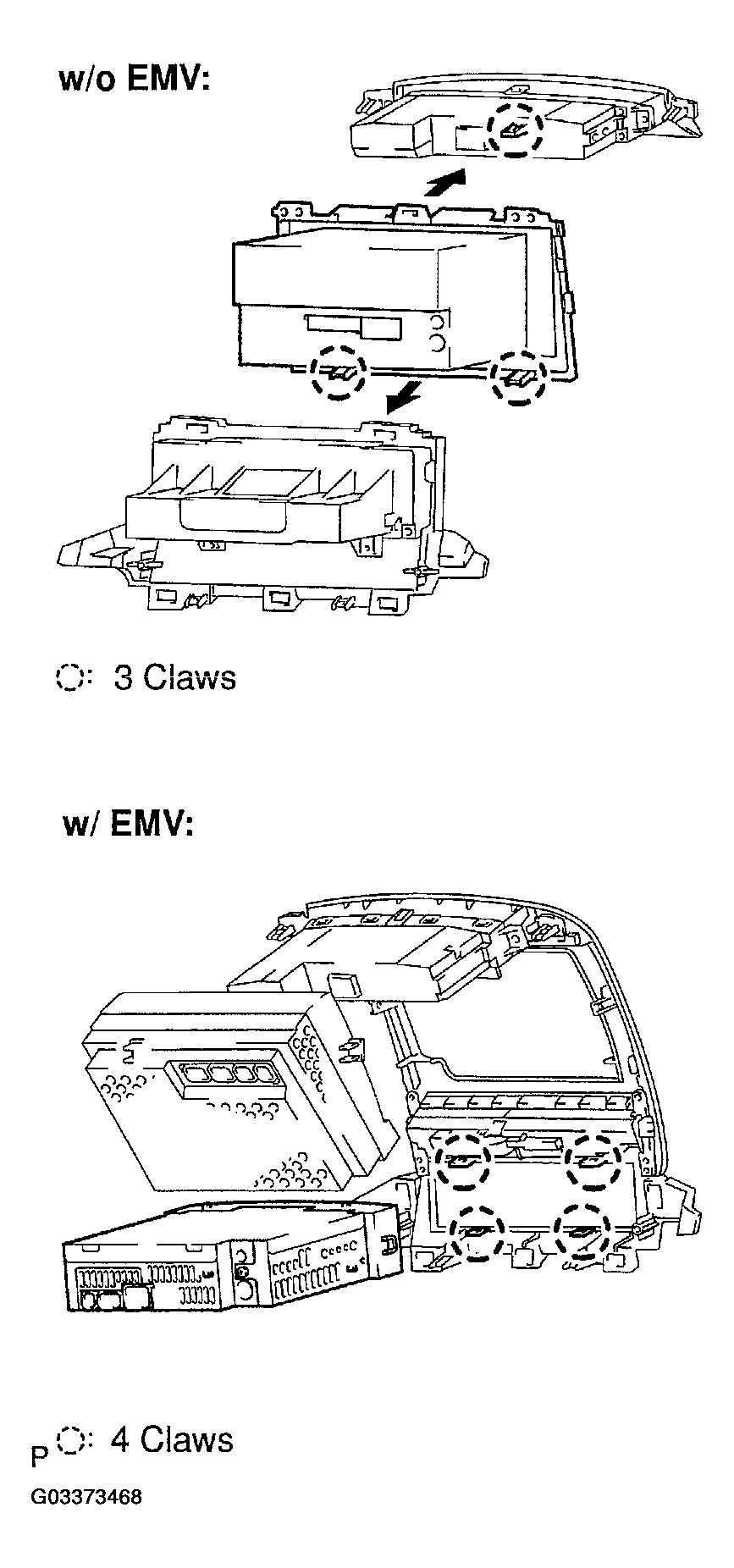

REMOVE RADIO RECEIVER ASSY
1. w/o EMV:
  - Release the 3 claws and remove the radio receiver assy.
  w/ EMV:
  - Release the 4 claws and remove the radio receiver assy.
  Fig 5: Removing Radio Receiver Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
