Steering Pad Switch RH: Replacement

HINT:

COMPONENTS: See LOCATION

1. SEPARATE BATTERY NEGATIVE TERMINAL (See  AIR BAG RESTRAINT SYSTEMS  )
2. REMOVE STEERING WHEEL COVER LOWER NO. 2 (See  AIR BAG RESTRAINT SYSTEMS  )
3. REMOVE STEERING WHEEL COVER LOWER NO. 3 (See  AIR BAG RESTRAINT SYSTEMS  )
4. REMOVE HORN BUTTON ASSY (See  AIR BAG RESTRAINT SYSTEMS  )
5. REMOVE STEERING PAD SWITCH RH
   1. Remove the screw.
   2. Remove the clamp.

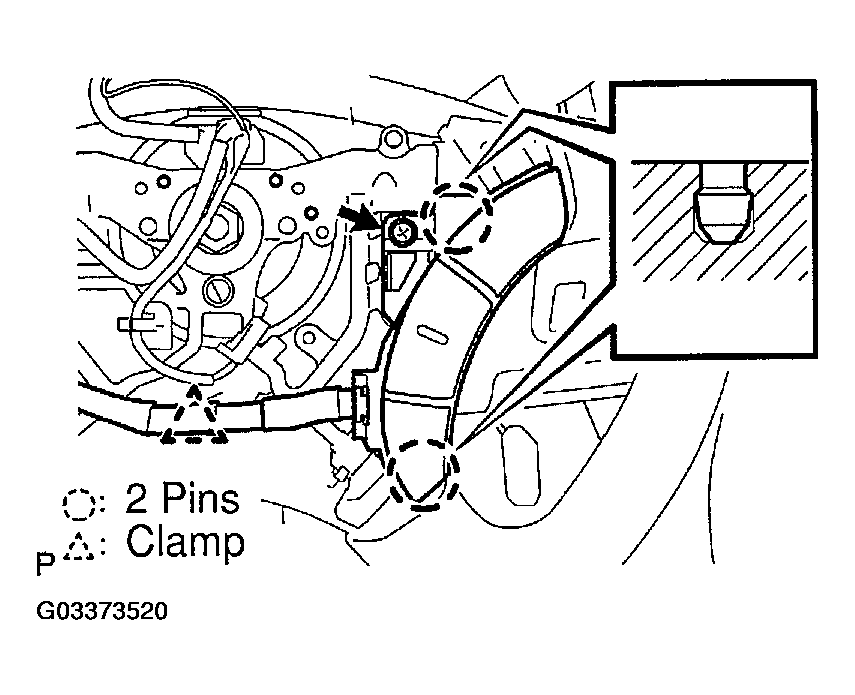

   3. Disengage the meshing of 2 pins and release the steering pad switch RH from steering wheel.
      Fig 1: Disengaging Meshing Pins

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

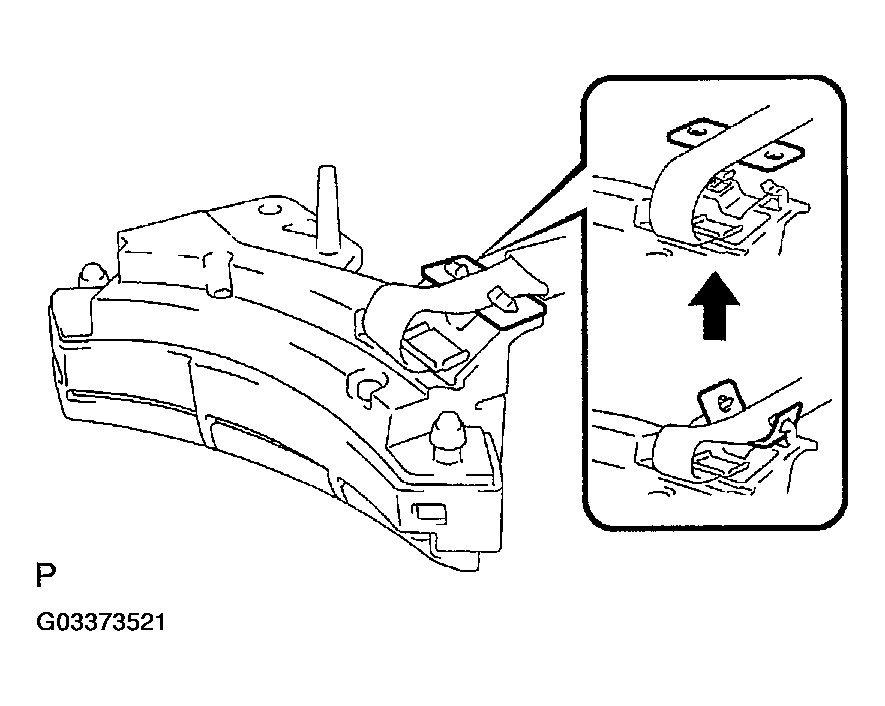

   4. Release the tab of steering pad switch cable from steering pad switch RH shown in Fig 2 .
      Fig 2: Releasing Tab Of Steering Pad Switch Cable

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

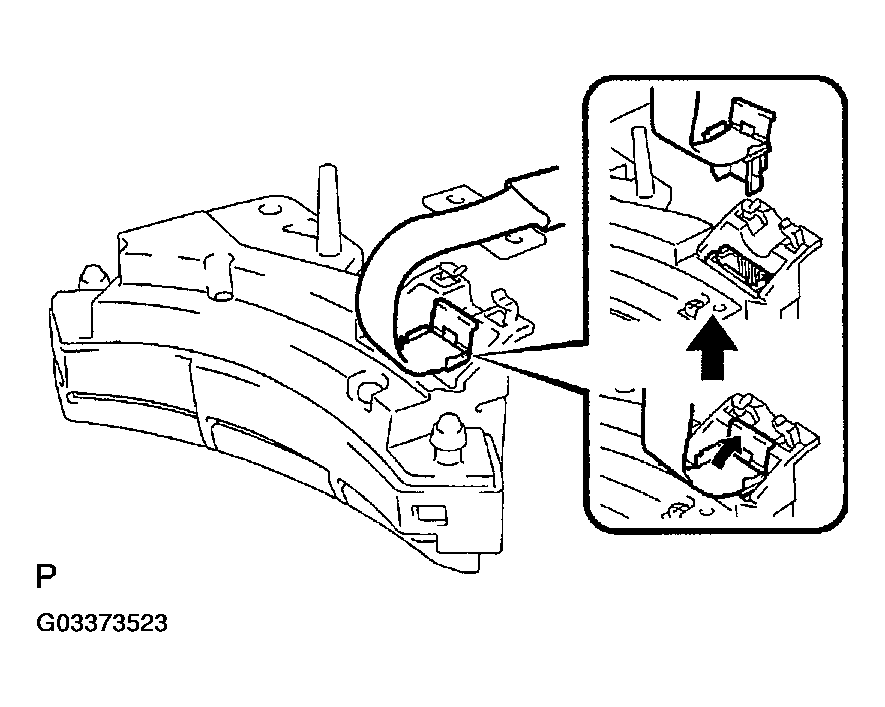

   5. Disengage the 2 claws as shown in Fig 3 and open the latch on the top of the connector.
      Fig 3: Disengaging Claws

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   6. Pull out of the connector while pinching the latch with fingers and disconnect the steering pad switch cable from the steering pad switch RH.
      Fig 4: Pulling Connector Pinching Latch

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. INSTALL HORN BUTTON ASSY (See  AIR BAG RESTRAINT SYSTEMS  )
7. INSPECT HORN BUTTON ASSY (See  AIR BAG RESTRAINT SYSTEMS  )
8. INSPECT SRS WARNING LIGHT (See  AIR BAG RESTRAINT SYSTEMS  )
