Front No.2 Speaker ASSY: Replacement

WARNING: This page is about a different car, the 2005 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

COMPONENTS

  1. REMOVE FRONT DOOR LOWER FRAME BRACKET GARNISH LH(See  OVERHAUL  )
  2. REMOVE FRONT DOOR INSIDE HANDLE BEZEL LH(See  OVERHAUL  )
  3. REMOVE FRONT ARMREST ASSY LH(See  OVERHAUL  )
  4. REMOVE FRONT DOOR TRIM BOARD SUB-ASSY LH(See  OVERHAUL  )
  5. REMOVE FRONT NO.2 SPEAKER ASSY
    1. Disconnect the connector and remove the 2 bolts.
    2. Remove the front No. 2 speaker assy from speaker mounting bracket No. 1.

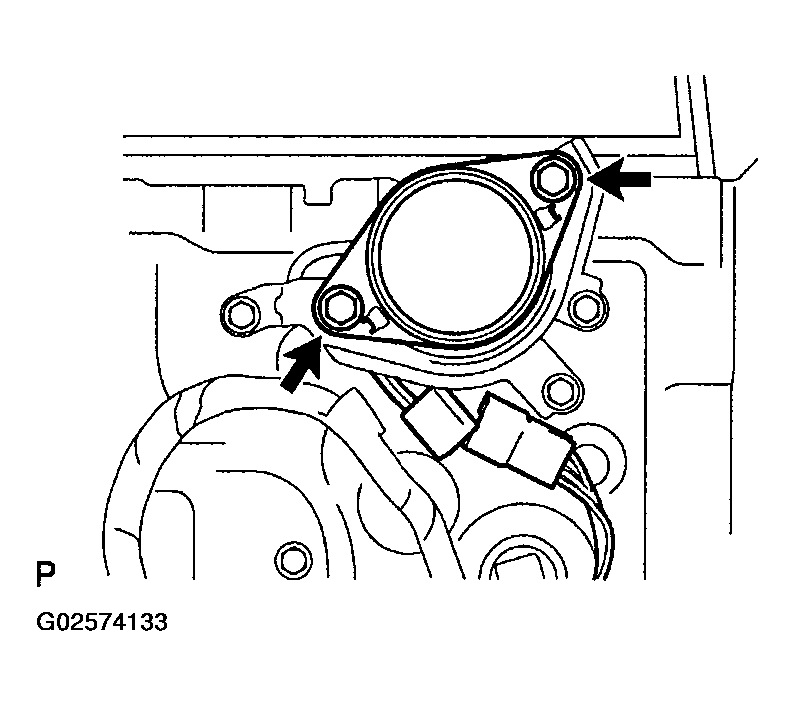

    Fig 1: Removing Front Door Trim Board Sub-Assy Lh
    G02574133Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL FRONT NO.2 SPEAKER ASSY
    1. Align a claw with the notch of the speaker mounting bracket No. 1, and install the front No. 2 speaker assy with 2 bolts.
    2. Connect the connector.

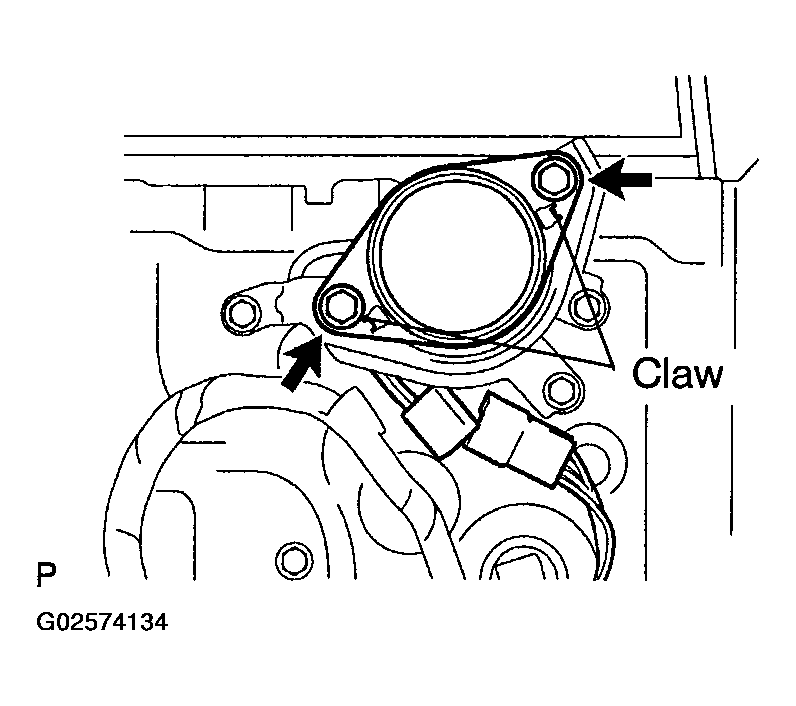

    Fig 2: Installing Front No. 2 Speaker Assy
    G02574134Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
