Rear Speaker ASSY: Replacement

WARNING: This page is about a different car, the 2005 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

COMPONENTS

REMOVE REAR DOOR INSIDE HANDLE BEZEL LH(See OVERHAUL )
REMOVE REAR ARMREST ASSY LH(See OVERHAUL )
REMOVE REAR DOOR TRIM BOARD SUB-ASSY LH(See OVERHAUL )
REMOVE REAR SPEAKER ASSY
1. Disconnect the connector.
2. Remove the 3 screws and rear speaker assy.

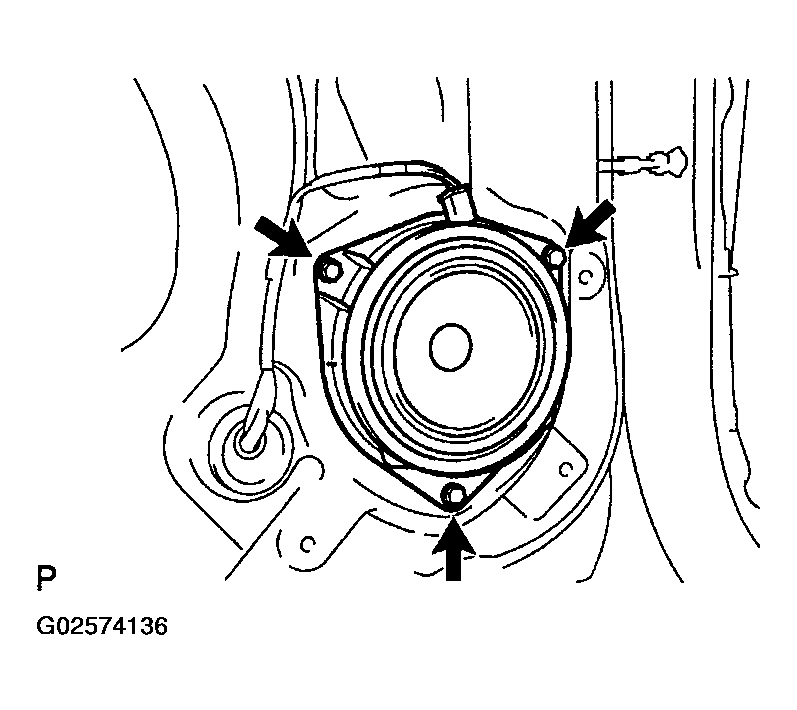

Fig 1: Removing Screws And Rear Speaker Assy
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR SPEAKER ASSY
1. Install the rear speaker assy with the 3 screws.
  NOTE: Install them in the order shown in the illustration.
2. Connect the connector.

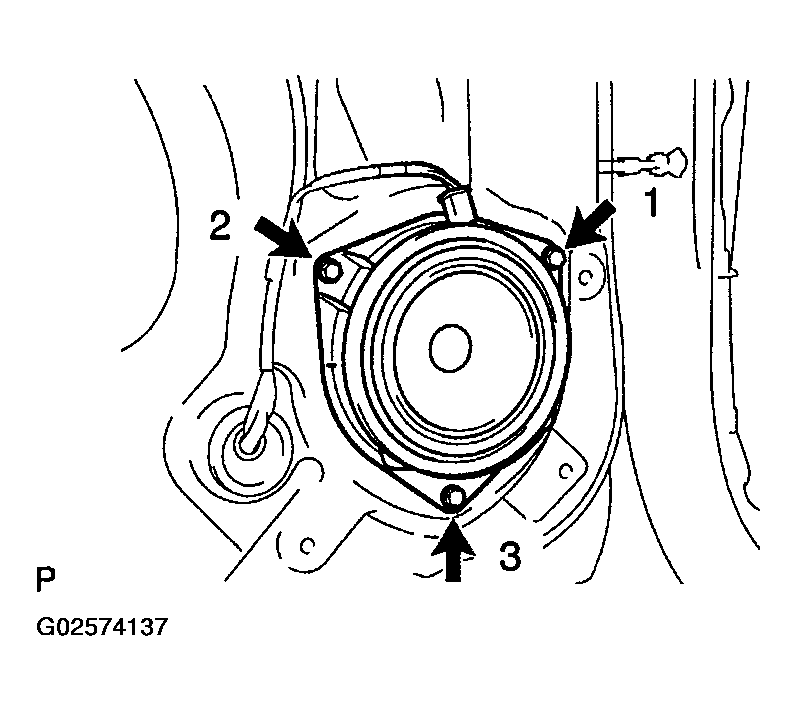

Fig 2: Installing Rear Speaker Assy With Screws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
