Front No.1 Speaker ASSY: Replacement

WARNING: This page is about a different car, the 2004 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

SEE: ADJUSTMENT .
SEE: LOCATION
Installation is in the reverse order of removal.
The procedure for the left side is the same as that for the right side. The procedure for right side is shown below.

REMOVE POWER WINDOW REGULATOR MASTER SWITCH ASSY (SEE OVERHAUL )
REMOVE FRONT DOOR INSIDE HANDLE BEZEL RH (SEE OVERHAUL )
REMOVE FRONT DOOR TRIM BOARD SUB-ASSY RH (SEE OVERHAUL )

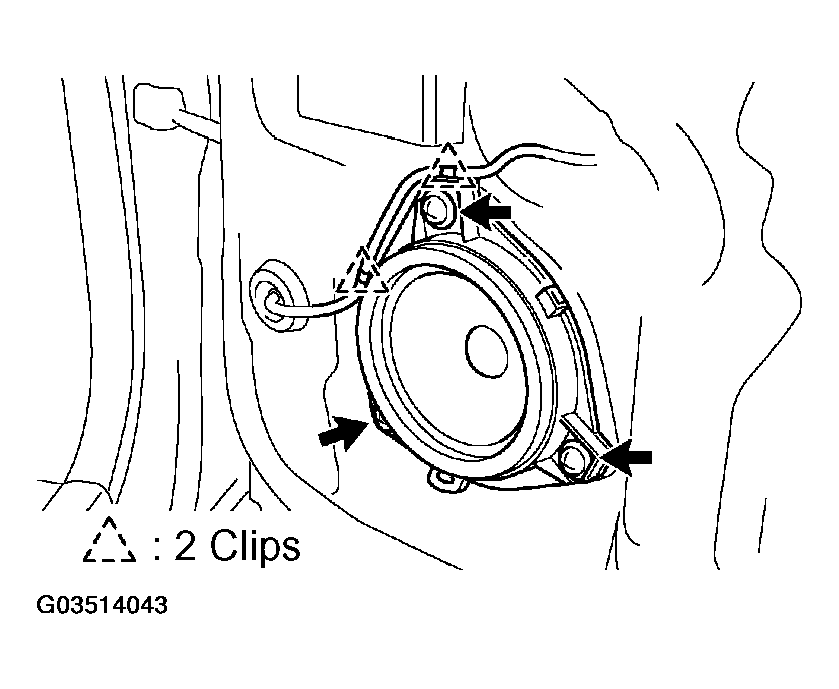

Fig 1: Removing Screws And Front No.1 Speaker Assy
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FRONT NO.1 SPEAKER ASSY
1. Disconnect the connector.
2. Disengage the 2 clips.
3. Remove the 3 screws and front No.1 speaker assy.
