Rear Speaker ASSY: Replacement

WARNING: This page is about a different car, the 2004 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

SEE: ADJUSTMENT
SEE: LOCATION
Installation is in the reverse order of removal.
The procedure for the left side is the same as that for the right side. The procedure for right side is shown below.

REMOVE SIDE TRIM BOARD COVER FRONT RH (SEE OVERHAUL )
REMOVE SIDE REAR CURTAIN ASSY RH (W/ REAR CURTAIN SUB-ASSY) (SEE OVERHAUL )
REMOVE POWER WINDOW REGULATOR SWITCH ASSY REAR (SEE OVERHAUL )
REMOVE REAR DOOR INSIDE HANDLE BEZEL RH (SEE OVERHAUL )
REMOVE REAR DOOR TRIM BOARD SUB-ASSY RH (SEE OVERHAUL )

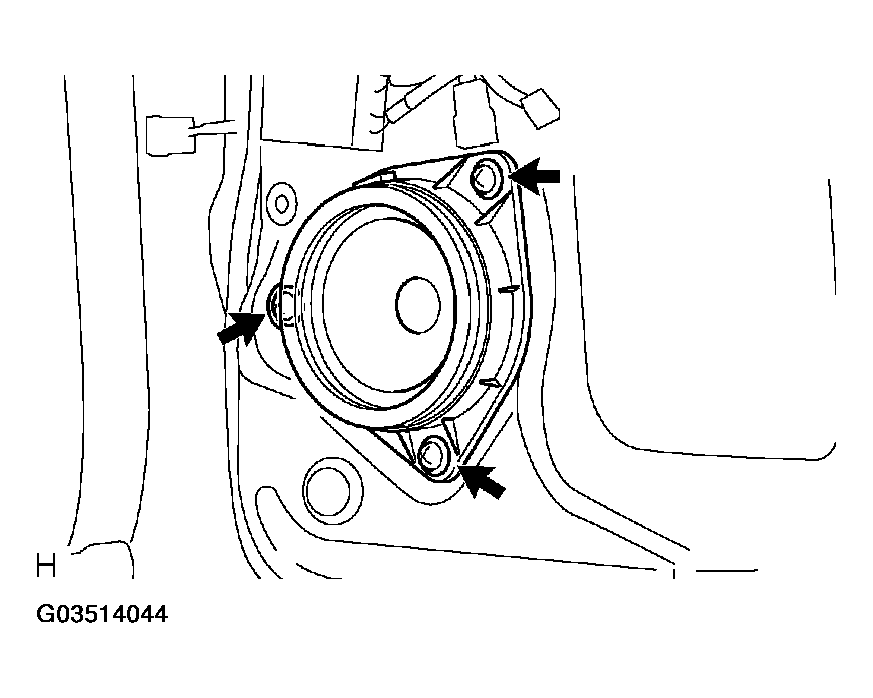

Fig 1: Removing Screws And Rear Speaker Assy
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE REAR SPEAKER ASSY
1. Disconnect the connector.
2. Remove the 3 screws and rear speaker assy.
