Blower Unit: Installation

  1. INSTALL BLOWER ASSEMBLY
    1. Install the blower with the 2 claws and screw.

      Torque: 3.0 N*m (31 kgf*cm, 27 in.*lbf)

    2. Install the blower with the nut.

      Torque: 9.8 N*m (100 kgf*cm, 7 ft.*lbf)

    3. Connect the connector.

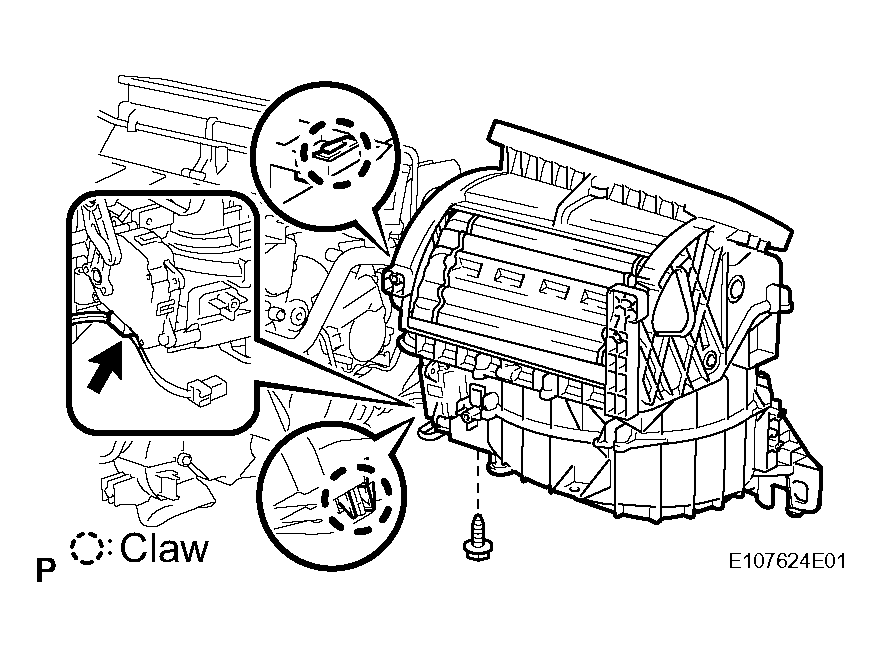

      Fig 1: Identifying Connector
      G04020787Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL AIR CONDITIONING AMPLIFIER ASSEMBLY (See  INSTALLATION   )
  3. INSTALL NO. 2 AIR DUCT (See  INSTALLATION   )
  4. INSTALL INSTRUMENT PANEL REINFORCEMENT ASSEMBLY (See  INSTALLATION   )
  5. INSTALL INSTRUMENT PANEL SAFETY PAD SUBASSEMBLY (See  INSTALLATION  )
  6. INSTALL MULTI-DISPLAY WITH RADIO RECEIVER ASSEMBLY (See  INSTALLATION  )
  7. INSTALL FRONT PILLAR GARNISH LH (See  INSTALLATION  )
  8. INSTALL FRONT PILLAR GARNISH RH (See  INSTALLATION  )
  9. INSTALL GLOVE COMPARTMENT DOOR SUBASSEMBLY (See  INSTALLATION  )
  10. INSTALL FRONT PASSENGER SIDE KNEE AIRBAG ASSEMBLY (See  INSTALLATION  )
  11. INSTALL STEERING CONTROL ECU (See  INSTALLATION  )
  12. INSTALL INSTRUMENT PANEL NO. 2 UNDER COVER SUB-ASSEMBLY (See  INSTALLATION  )
  13. INSTALL INTEGRATION CONTROL AND PANEL ASSEMBLY (See  INSTALLATION  )
  14. INSTALL DRIVER SIDE KNEE AIRBAG ASSEMBLY (See  INSTALLATION  )
  15. INSTALL INSTRUMENT PANEL NO. 1 SAFETY PAD SUB-ASSEMBLY (See  INSTALLATION  )
  16. INSTALL INSTRUMENT PANEL NO. 1 UNDER COVER SUB-ASSEMBLY (See  INSTALLATION  )
  17. INSTALL INSTRUMENT SIDE PANEL LH (See  INSTALLATION  )
  18. INSTALL INSTRUMENT SIDE PANEL RH (See  INSTALLATION  )
  19. INSTALL COMBINATION METER ASSEMBLY (See  INSTALLATION  )
  20. INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (See  INSTALLATION  )
  21. INSTALL CONSOLE BOX (See  INSTALLATION  )
  22. INSTALL STEERING COLUMN ASSEMBLY

    For 3GR-FSE (see INSTALLATION )

    For 3UZ-FE (see INSTALLATION )

  23. INSTALL CONSOLE BOX REGISTER ASSEMBLY (See  INSTALLATION  )
  24. INSTALL CONSOLE BOX PLATE (See  INSTALLATION  )
  25. INSTALL INSTRUMENT PANEL FINISH PANEL END LH (See  INSTALLATION  )
  26. INSTALL INSTRUMENT PANEL FINISH PANEL END RH (See  INSTALLATION  )
  27. INSTALL CONSOLE UPPER PANEL ASSEMBLY (See  INSTALLATION  )
  28. INSTALL FRONT CONSOLE UPPER PANEL GARNISH (See  INSTALLATION  )
  29. INSTALL HEADLIGHT DIMMER SWITCH ASSEMBLY (See  INSTALLATION  )
  30. INSTALL WINDSHIELD WIPER SWITCH ASSEMBLY (See  INSTALLATION  )
  31. INSTALL SPIRAL CABLE WITH STEERING SENSOR (See  INSTALLATION  )
  32. INSTALL STEERING COLUMN COVER UPPER

    For 3GR-FSE (see INSTALLATION )

    For 3UZ-FE (see INSTALLATION )

  33. INSTALL STEERING COLUMN COVER LOWER

    For 3GR-FSE (see INSTALLATION )

    For 3UZ-FE (see INSTALLATION )

  34. INSTALL STEERING WHEEL ASSEMBLY

    For 3GR-FSE (see INSTALLATION )

    For 3UZ-FE (see INSTALLATION )

  35. INSTALL STEERING PAD (See  INSTALLATION  )
  36. INSTALL STEERING WHEEL NO. 3 COVER LOWER
  37. INSTALL STEERING WHEEL NO. 2 COVER LOWER
  38. INSTALL FRONT DOOR OPENING TRIM COVER LH (See  INSTALLATION  )
  39. INSTALL FRONT DOOR OPENING TRIM COVER RH (See  INSTALLATION  )
  40. INSTALL FRONT DOOR SCUFF PLATE LH (See  INSTALLATION  )
  41. INSTALL FRONT DOOR SCUFF PLATE RH (See  INSTALLATION  )
  42. INSTALL FRONT WIPER MOTOR AND LINK ASSEMBLY (See  INSTALLATION  )
  43. INSTALL COWL TOP VENTILATOR LOUVER SUBASSEMBLY (See  INSTALLATION  )
  44. INSTALL FRONT FENDER TO COWL SIDE SEAL RH (See  INSTALLATION  )
  45. INSTALL FRONT FENDER TO COWL SIDE SEAL LH (See  INSTALLATION  )
  46. INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY RH (See  INSTALLATION  )
  47. INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY LH (See  INSTALLATION  )
  48. INSTALL FRONT PILLAR TO FRONT SIDE SEAL SUB-ASSEMBLY RH (See  INSTALLATION  )
  49. INSTALL FRONT PILLAR TO FRONT SIDE SEAL SUB-ASSEMBLY LH (See  INSTALLATION  )
  50. INSTALL ENGINE ROOM SIDE COVER LH (See  INSTALLATION  )
  51. INSTALL COOL AIR INTAKE DUCT SEAL (See  INSTALLATION  )
  52. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  53. PERFORM INITIALIZATION
    1. Perform initialization (see INITIALIZATION ).
      NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
  54. CHECK SRS WARNING LIGHT
    1. Check the SRS warning light (see DTC CHECK / CLEAR ).
