Air Conditioning: Condenser: Installation

  1. INSTALL COOLER CONDENSER ASSEMBLY
    1. Install the condenser with the 2 bolts on the bottom side of the condenser.

      Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)

      Fig 1: Identifying Cooler Condenser Bolts
      G05307025Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the inverter cooling pipe with the 2 bolts.

      Torque: 13 N*m (133 kgf*cm, 10 in.*lbf)

      HINT:

      If the condenser is replaced with a new one, add compressor oil to the new condenser.

      Capacity:

      40 cc (1.4 fl. oz.)

      Compressor oil:

      ND-OIL 11 or equivalent

      Fig 2: Identifying Inverter Cooling Pipe And Bolts
      G05307024Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. CONNECT DISCHARGE HOSE SUB-ASSEMBLY
    1. Remove the vinyl tape attached to the pipe and connecting part of the cooler condenser.
    2. Sufficiently apply compressor oil to a new O-ring and the fitting surface of the pipe joint.

      Compressor oil:

      ND-OIL 11 or equivalent

    3. Install the O-ring on the discharge hose.
    4. Connect the discharge hose to the cooler condenser with the bolt.

      Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)

      Fig 3: Identifying O-Ring From Discharge Hose
      G05307023Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. CONNECT LIQUID TUBE SUB-ASSEMBLY
    1. Remove the vinyl tape attached to the pipe and connecting part of the cooler condenser.
    2. Sufficiently apply compressor oil to a new O-ring and the fitting surface of the pipe joint.

      Compressor oil:

      ND-OIL 11 or equivalent

    3. Install the O-ring on the liquid tube.
    4. Connect the liquid tube to the cooler condenser with the bolt.

      Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)

  4. INSTALL RADIATOR ASSEMBLY
    Fig 4: Identifying O-Ring And Liquid Tube
    G05307021Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL UPPER RADIATOR SUPPORT SUB-ASSEMBLY
    1. Install the radiator support with 5 bolts.

      Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

      Fig 5: Identifying Radiator Support And Bolts
      G05297952Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Attach the 6 clamps and install the wire harness.

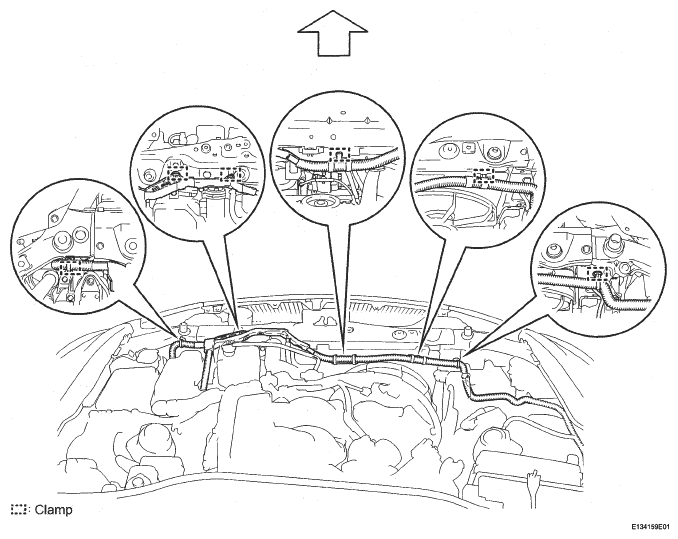

      Fig 6: Identifying Wire Harness Clamps
      G05307018Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL HOOD LOCK ASSEMBLY  (See INSTALLATION )
  7. INSTALL HOOD LOCK CONTROL CABLE COVER  (See INSTALLATION )
  8. INSTALL RADIATOR SUPPORT OPENING COVER  (See INSTALLATION )
  9. INSTALL MILLIMETER WAVE RADAR SENSOR ASSEMBLY (w/ Dynamic Radar Cruise Control System)  (See INSTALLATION )
  10. INSTALL FRONT BUMPER COVER  (See INSTALLATION )
  11. ADD ENGINE COOLANT  (See REPLACEMENT )
  12. INSTALL NO. 2 ENGINE UNDER COVER
  13. INSTALL ENGINE UNDER COVER
  14. INSTALL AIR CLEANER CAP WITH AIR CLEANER HOSE  (See INSTALLATION )
  15. INSTALL NO. 1 AIR CLEANER INLET  (See INSTALLATION )
  16. INSTALL ENGINE ROOM SIDE COVER LH  (See INSTALLATION )
  17. INSTALL ENGINE ROOM SIDE COVER RH  (See INSTALLATION )
  18. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  19. CHARGE REFRIGERANT (See  REPLACEMENT   )
  20. INSTALL COOL AIR INTAKE DUCT SEAL  (See INSTALLATION )
  21. WARM UP ENGINE (See  REPLACEMENT   )
  22. CHECK FOR LEAKAGE OF REFRIGERANT (See  REPLACEMENT   )
  23. PERFORM INITIALIZATION
    1. Perform initialization (see INITIALIZATION (2006/02-2006/07) ).
      NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
