Navigation Antenna: Installation

  1. INSTALL NAVIGATION ANTENNA
    1. Install the navigation antenna with the 2 screws.
    2. Engage the 2 clamps.

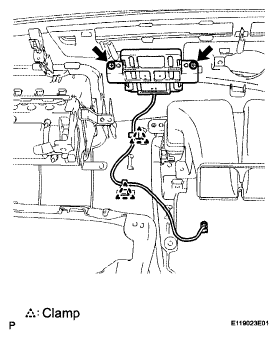

      3. Fig 1: Locating Navigation Antenna And Clamps
      G05832725Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL DEFROSTER NOZZLE ASSEMBLY  (See REASSEMBLY )
  3. INSTALL SIDE NO. 2 DEFROSTER NOZZLE DUCT  (See REASSEMBLY )
  4. INSTALL NO. 3 HEATER TO REGISTER DUCT  (See REASSEMBLY )
  5. INSTALL INSTRUMENT PANEL SAFETY PAD ASSEMBLY  (See INSTALLATION )
  6. CONNECT PASSENGER AIRBAG CONNECTOR
  7. INSTALL NO. 2 CONSOLE BOX DUCT (for Manual Transmission)  (See INSTALLATION )
  8. INSTALL NO. 1 CONSOLE BOX DUCT (for Automatic Transmission)  (See INSTALLATION )
  9. INSTALL NO. 2 CONSOLE BOX DUCT (for Automatic Transmission)  (See INSTALLATION )
  10. INSTALL FRONT STEREO COMPONENT SPEAKER ASSEMBLY  (See INSTALLATION )
  11. INSTALL NO. 3 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY  (See INSTALLATION )
  12. INSTALL NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY  (See INSTALLATION )
  13. INSTALL NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY  (See INSTALLATION )
  14. INSTALL FRONT PILLAR GARNISH LH  (See INSTALLATION )
  15. INSTALL FRONT PILLAR GARNISH RH
  16. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY  (See INSTALLATION )
  17. INSTALL FRONT PASSENGER SIDE KNEE AIRBAG ASSEMBLY  (See INSTALLATION )
  18. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY  (See INSTALLATION )
  19. INSTALL SIDE INSTRUMENT PANEL RH  (See INSTALLATION )
  20. INSTALL FRONT DOOR OPENING TRIM COVER RH  (See INSTALLATION )
  21. INSTALL FRONT DOOR SCUFF PLATE RH
  22. INSTALL COMBINATION METER ASSEMBLY  (See INSTALLATION )
  23. INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY  (See INSTALLATION )
  24. INSTALL DRIVER SIDE KNEE AIRBAG ASSEMBLY  (See INSTALLATION )
  25. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY  (See INSTALLATION )
  26. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY  (See INSTALLATION )
  27. INSTALL SIDE INSTRUMENT PANEL LH  (See INSTALLATION )
  28. INSTALL FRONT DOOR OPENING TRIM COVER LH  (See INSTALLATION )
  29. INSTALL FRONT DOOR SCUFF PLATE LH  (See INSTALLATION )
  30. INSTALL TURN SIGNAL SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY  (See INSTALLATION )
  31. INSTALL STEERING COLUMN COVER (for Manual Tilt and Telescopic)  (See INSTALLATION )
  32. INSTALL STEERING COLUMN COVER (for Power Tilt and Power Telescopic)  (See INSTALLATION )
  33. ADJUST SPIRAL CABLE SUB-ASSEMBLY  (See INSTALLATION )
  34. INSTALL STEERING WHEEL ASSEMBLY  (See INSTALLATION )
  35. INSTALL STEERING PAD  (See INSTALLATION )
  36. INSTALL LOWER NO. 3 STEERING WHEEL COVER  (See INSTALLATION )
  37. INSTALL LOWER NO. 2 STEERING WHEEL COVER  (See INSTALLATION )
  38. INSTALL MULTI-DISPLAY WITH RADIO RECEIVER ASSEMBLY  (See INSTALLATION )
  39. INSTALL CENTER LOWER INSTRUMENT CLUSTER FINISH PANEL  (See INSTALLATION )
  40. INSTALL NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY  (See INSTALLATION )
  41. INSTALL CONSOLE BOX  (See INSTALLATION )
  42. INSTALL CONSOLE BOX REGISTER ASSEMBLY  (See INSTALLATION )
  43. INSTALL FRONT ASH RECEPTACLE SUB-ASSEMBLY  (See INSTALLATION )
  44. INSTALL FRONT CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission)  (See INSTALLATION )
  45. INSTALL REAR CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission)  (See INSTALLATION )
  46. INSTALL CONSOLE PANEL SUB-ASSEMBLY (for Automatic Transmission)  (See INSTALLATION )
  47. INSTALL UPPER NO. 2 CONSOLE PANEL GARNISH (for Automatic Transmission)  (See INSTALLATION )
  48. INSTALL UPPER NO. 1 CONSOLE PANEL GARNISH (for Automatic Transmission)  (See INSTALLATION )
  49. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transmission)
  50. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transmission)
  51. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  52. PERFORM INITIALIZATION
    NOTE: Some systems need initialization after reconnecting the cable to the negative battery terminal (See INITIALIZATION ).
  53. INSPECT STEERING PAD  (See ON-VEHICLE INSPECTION )
  54. INSPECT SRS WARNING LIGHT

    (See DIAGNOSIS SYSTEM )
