Inspection Procedure

  1. CHECK NAVIGATION SYSTEM
    1. Check the navigation system.

      Result

    RESULT CHART

    Result Proceed to
    Navigation system (for DVD) A
    Navigation system (for HDD) B

    B:  Go to step  5

    A: Go to next Step

  2. CHECK HARNESS AND CONNECTOR (MULTI-DISPLAY - TELEVISION CAMERA)
    1. Disconnect the L60 multi-display connector.
    2. Disconnect the S35 television camera connector.

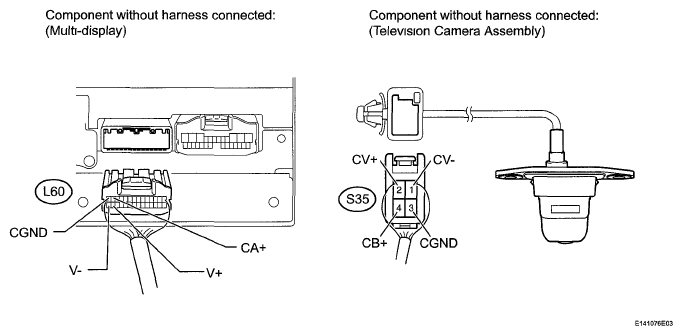

      Fig 1: Identifying L60 Multi-Display Connector And S35 Television Camera Connector
      G05776523Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Measure the resistance according to the value (s) in the table below.

      Standard resistance

    TESTER CONNECTION SPECIFIED CONDITION CHART

    Tester Connection Condition Specified Condition
    S35-4 (CB+) - L60-13 (CA+) Always Below 1 Ω
    S35-3 (CGND) - L60-14 (CGND) Always Below 1 Ω
    S35-2 (CV+) - L60-27 (V+) Always Below 1 Ω
    S35-1 (CV-) - L60-28 (V-) Always Below 1 Ω
    S35-4 (CB+) - Body ground Always 10 kΩ or higher
    S35-3 (CGND) - Body ground Always 10 kΩ or higher
    S35-2 (CV+) - Body ground Always 10 kΩ or higher
    S35-1 (CV-) - Body ground Always 10 kΩ or higher

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next Step

  3. INSPECT MULTI-DISPLAY
    1. Disconnect the S35 television camera connector
      Fig 2: Identifying S35 Television Camera Connector
      G04951998Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the voltage according to the value (s) in the table below.

      Standard voltage

    TESTER CONNECTION SPECIFIED CONDITION CHART

    Tester Connection Condition Specified Condition
    S35-4 (CB+) - S35-3 (CGND) Power switch ON (IG), shift lever R position 5.8 to 6.5 V

    NG: REPLACE MULTI-DISPLAY  (See REMOVAL )

    OK: Go to next Step

  4. INSPECT TELEVISION CAMERA ASSEMBLY
    1. Reconnect the S35 television camera connector.
      Fig 3: Identifying S35 Television Camera Connector
      G05776525Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using an oscilloscope, check waveform 1.

    Measurement condition

    ITEM CONTENT CHART

    Item Content
    Tester Connection S35-2 (CV+) - S35-1 (CV-)
    Tool Setting 0 2 V/DIV, 0 2 μs/DIV
    Condition Power switch ON (IG), Shift lever R position
    Fig 4: Identifying Waveform (Reference)
    G04945285Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK: Pulse generation

    NG: REPLACE TELEVISION CAMERA ASSEMBLY  (see TELEVISION CAMERA )

    OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE  (see PROBLEM SYMPTOMS TABLE )

  5. CHECK HARNESS AND CONNECTOR (DISPLAY AND NAVIGATION ASSEMBLY TELEVISION CAMERA)
    1. Disconnect the L60 display connector.
    2. Disconnect the S35 camera connector
    3. Measure the resistance according to the value (s) in the table below.

      Standard resistance

    TESTER CONNECTION SPECIFIED CONDITION CHART

    Tester Connection Condition Specified Condition
    S35-4 (CB+) - L60-13 (CA+) Always Below 1 Ω
    S35-3 (CGND) - L60-14 (CGND) Always Below 1 Ω
    S35-2 (CV+) - L60-27 (V+) Always Below 1 Ω
    S35-1 (CV-) - L60-28 (V-) Always Below 1 Ω
    S35-4 (CB+) - Body ground Always 10 kΩ or higher
    S35-3 (CGND) - Body ground Always 10 kΩ or higher
    S35-2 (CV+) - Body ground Always 10 kΩ or higher
    S35-1 (CV-) - Body ground Always 10 kΩ or higher

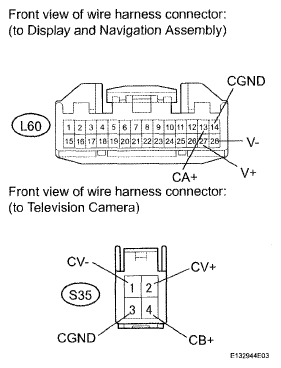

    Fig 5: Identifying L60 Display Connector And S35 Camera Connector
    G04945554Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next Step

  6. INSPECT DISPLAY AND NAVIGATION ASSEMBLY (CA+ VOLTAGE)
    1. Measure the voltage according to the value (s) in the table below.

      Standard voltage

    TESTER CONNECTION SPECIFIED CONDITION CHART

    Tester Connection Condition Specified Condition
    L60-13 (CA+) - L60-14 (CGND) Power switch ON (IG), shift lever in R position 5.5 to 7.05 V
    Fig 6: Identifying Display And Navigation Assembly Connector Terminal L60
    G04945555Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPLACE DISPLAY AND NAVIGATION ASSEMBLY  (See REMOVAL )

    OK: Go to next Step

  7. INSPECT TELEVISION CAMERA ASSEMBLY
    1. Reconnect the S35 television camera connector.
      Fig 7: Identifying S35 Television Camera Connector
      G05776525Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using an oscilloscope, check waveform 1

      Measurement condition

      ITEM CONTENT CHART

      Item Content
      Tester Connection S35-2 (CV+) - S35-1 (CV-)
      Tool Setting 0 2V/DIV, 0 2 μs/DIV
      Condition Power switch ON (IG), Shift lever R position
      Fig 8: Identifying Waveform (Reference)
      G04945285Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      OK: Pulse generation

    NG: REPLACE TELEVISION CAMERA ASSEMBLY  (see TELEVISION CAMERA )

    OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE  (see PROBLEM SYMPTOMS TABLE )
