Drain Procedure

Raise and support the vehicle. For additional information, see JACKING & HOISTING .
Remove the fill plug.

Fig 1: Removing Fill Plug
Courtesy of FORD MOTOR CO.
Remove the drain plug and drain fluid into a suitable container.

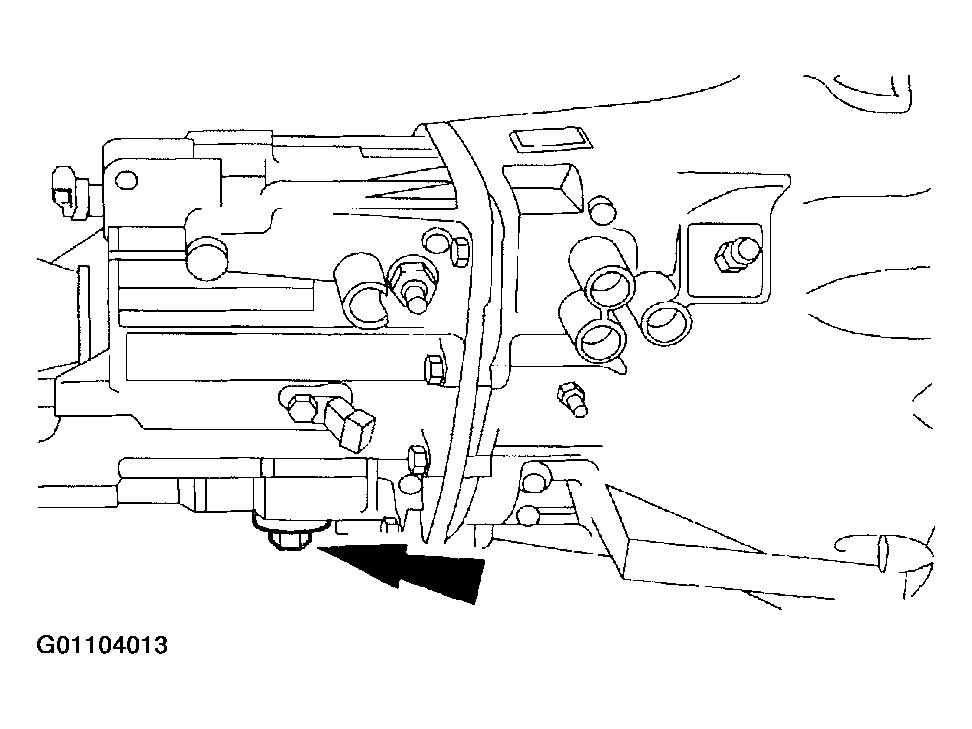

Fig 2: Removing Drain Plug
Courtesy of FORD MOTOR CO.
Install the drain plug.

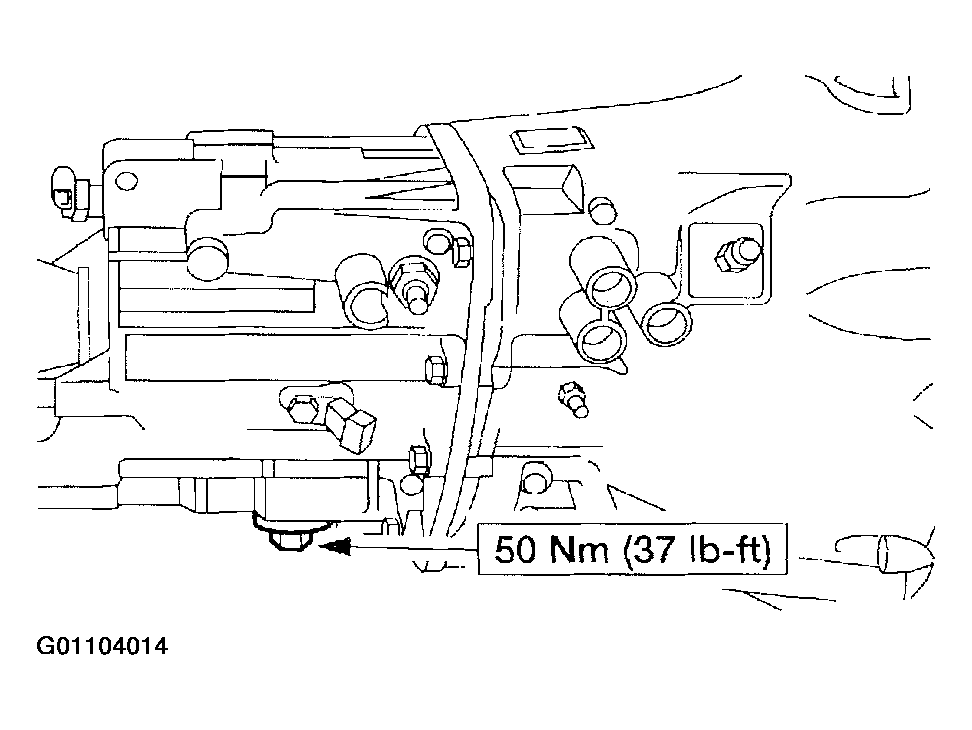

Fig 3: Installing Drain Plug
Courtesy of FORD MOTOR CO.
Fill the transmission as necessary. For additional information, see FILL PROCEDURE .
