Stability Assist Module Parameter Identification (PID) Index

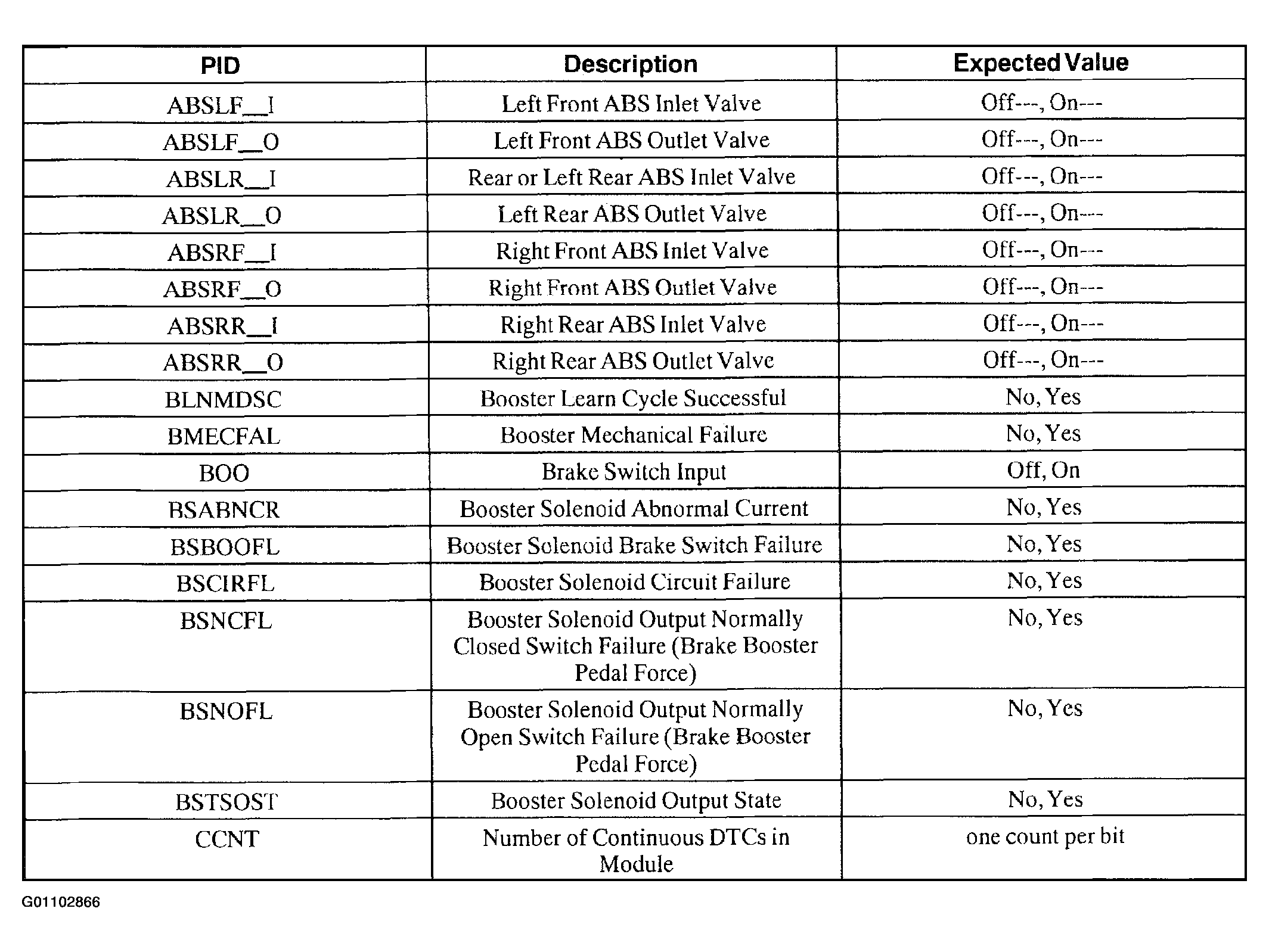

Fig 1: Stability Assist Module Parameter Identification (PID) Index (1 Of 3)

Courtesy of FORD MOTOR CO.

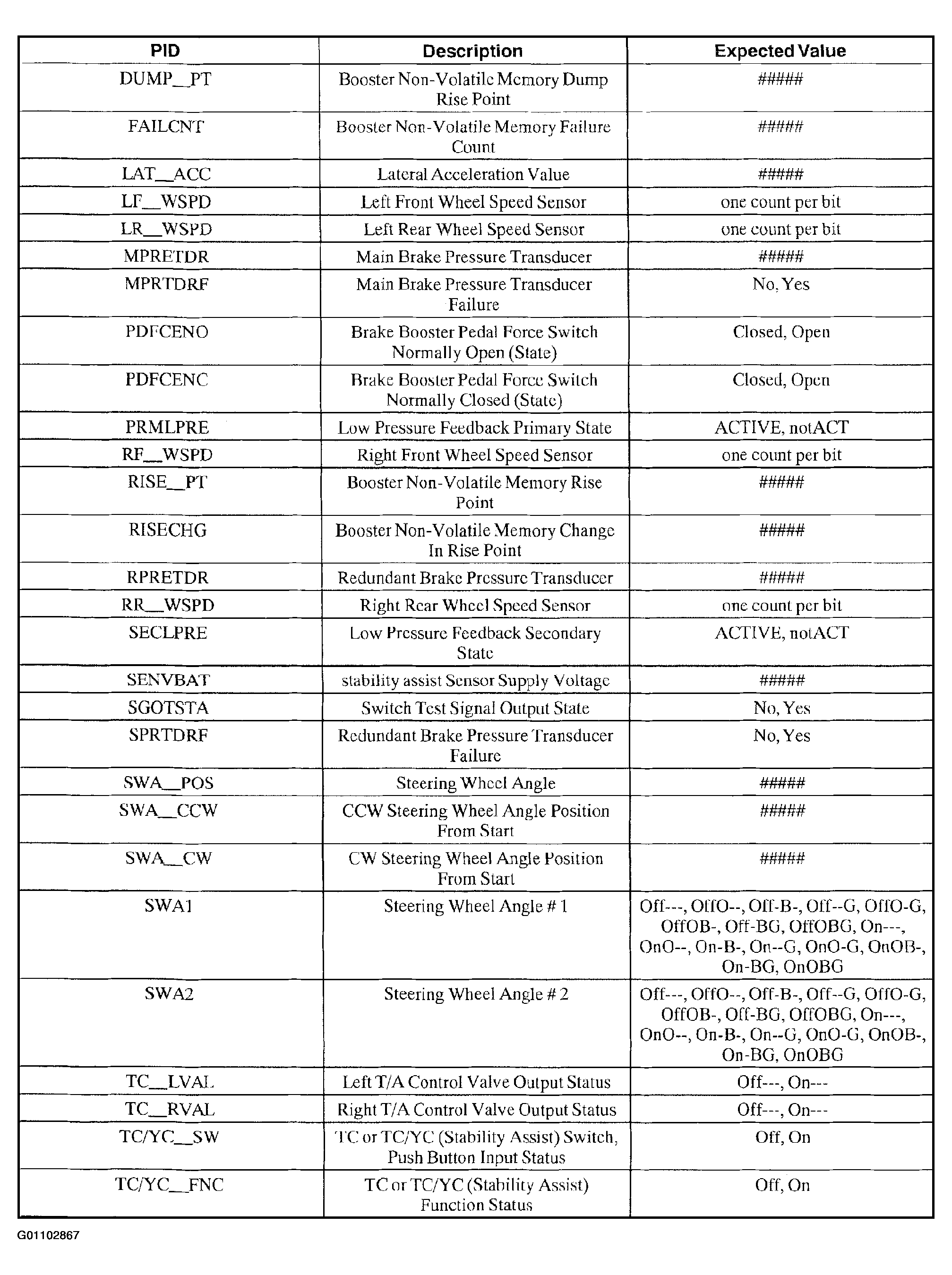

Fig 2: Stability Assist Module Parameter Identification (PID) Index (2 Of 3)

Courtesy of FORD MOTOR CO.

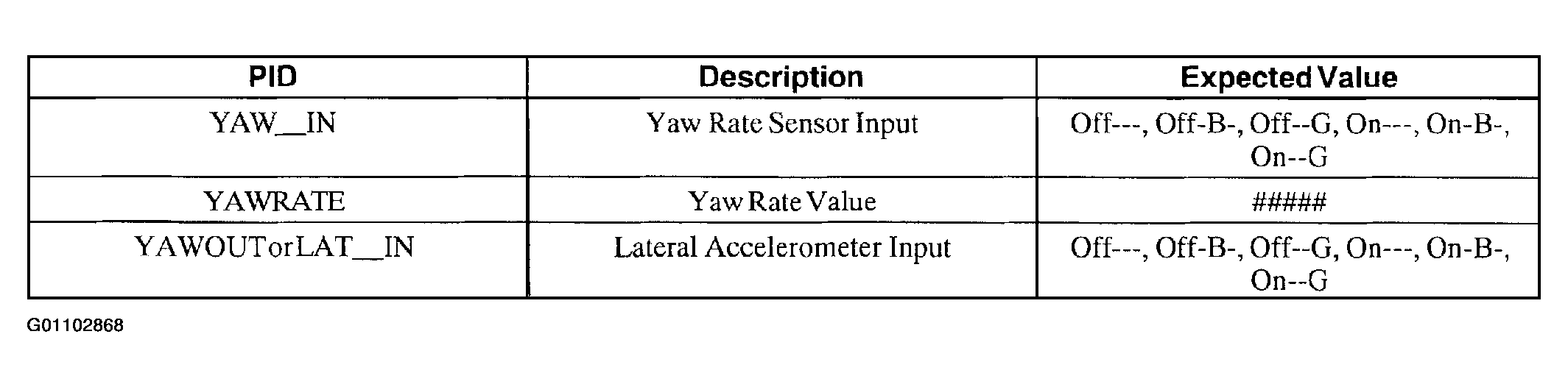

Fig 3: Stability Assist Module Parameter Identification (PID) Index (3 Of 3)

Courtesy of FORD MOTOR CO.
