Parking Aid Module

Remove the RH quarter trim panel. For additional information, refer to BODY SYSTEM - INTERIOR .
Remove the parking aid module in the order indicated in the following illustration.

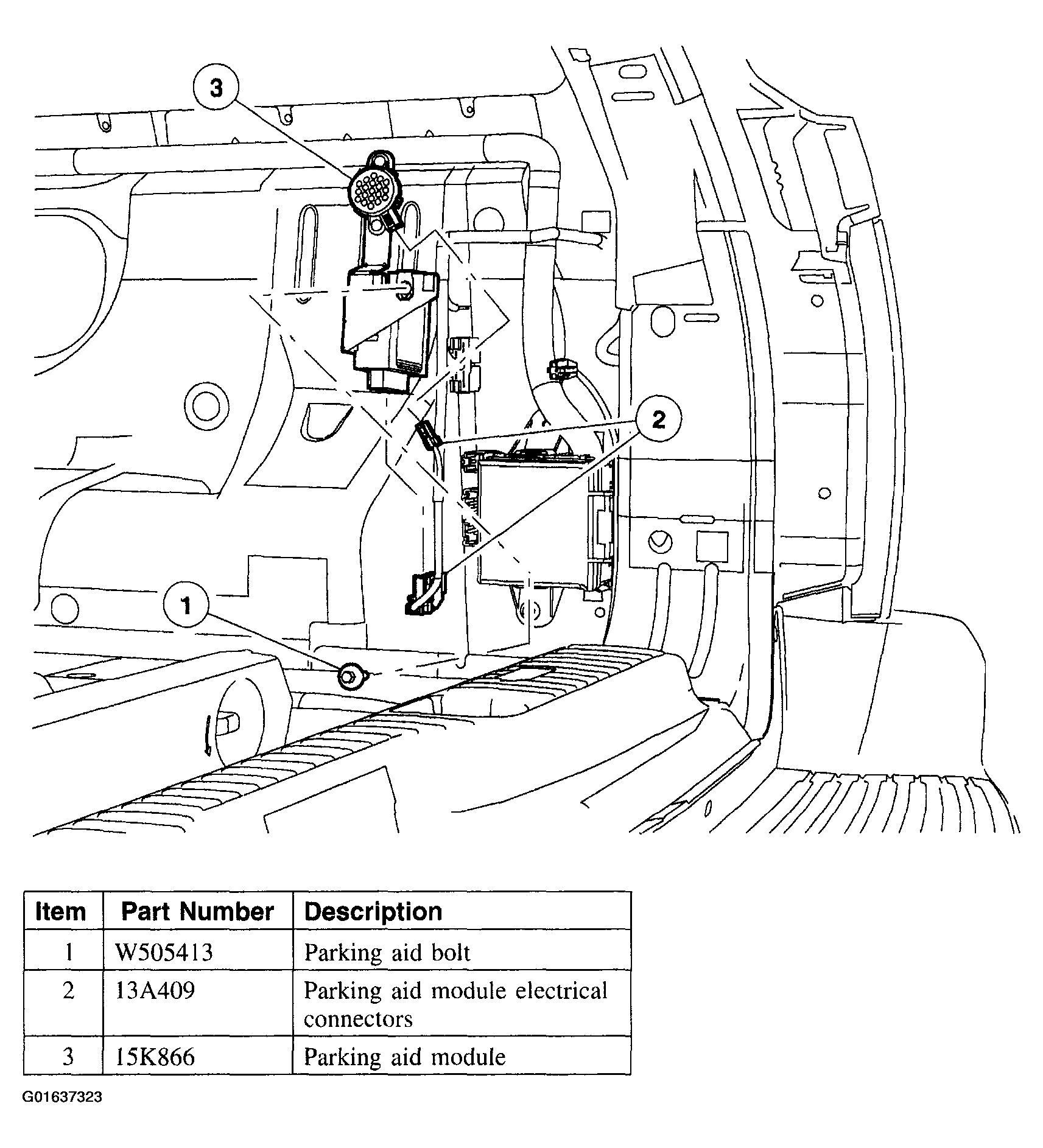

Fig 1: Removal Sequence Of Parking Aid Module
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
