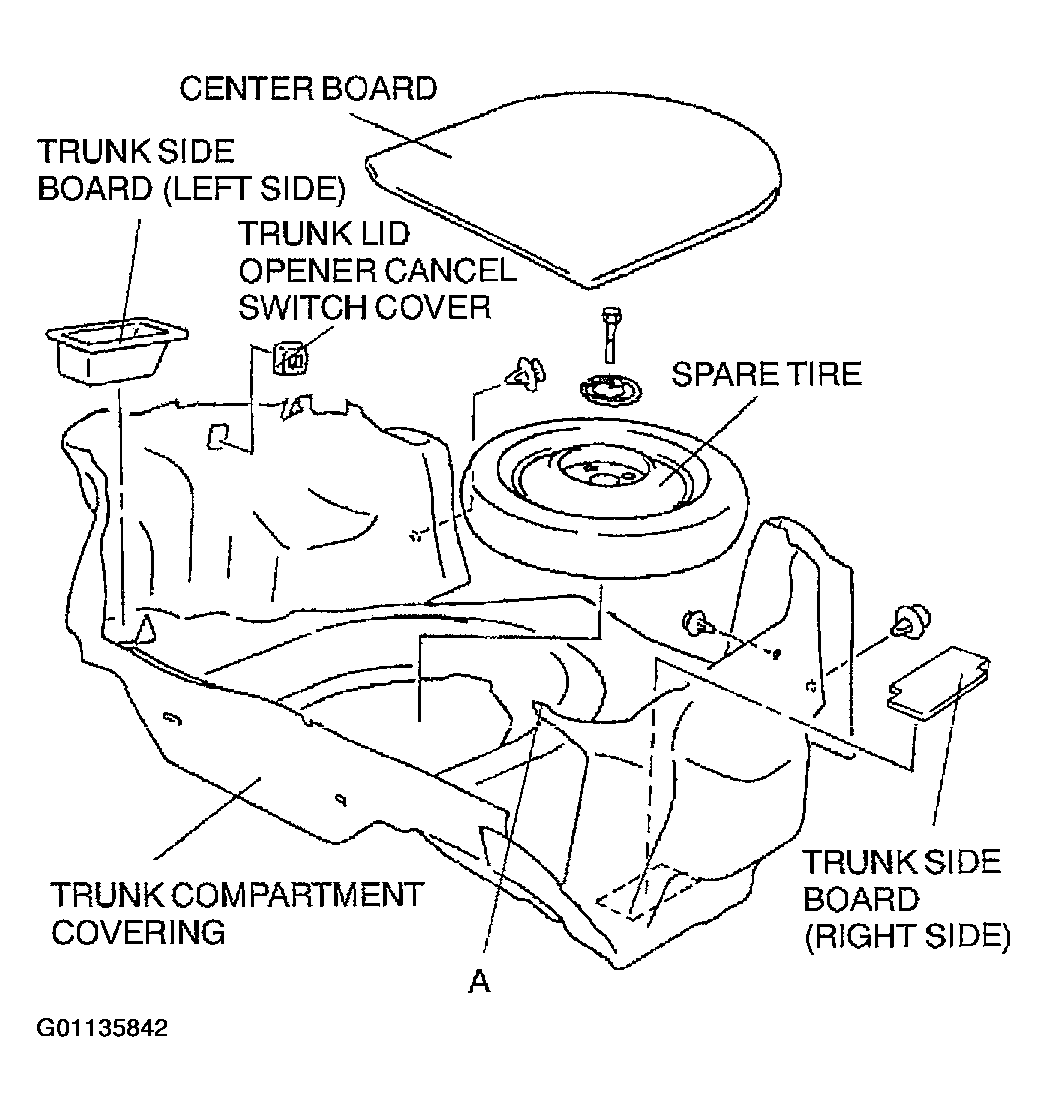

Trunk Compartment Covering Removal/Installation
WARNING: This page is about a different car, the 2002 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the center board and the spare tire.
- Remove the trunk side board.
- Remove the trunk end trim. See TRUNK END TRIM REMOVAL/INSTALLATION .
- Remove the fasteners.
- Disengage the part of trunk compartment covering A from the corner plate to remove it.
- Remove the trunk lid opener cancel switch cover.
- Install in the reverse order of removal.
