Center Panel Module Disassembly/Assembly: Notes

CAUTION:

Before disassembling the center panel module, spread a cloth on the floor to put the disassembled parts on. This protects the surface of the panel from scratches or dirt.

Disassemble in the order indicated in the table.
Assemble in the reverse order of disassembly.

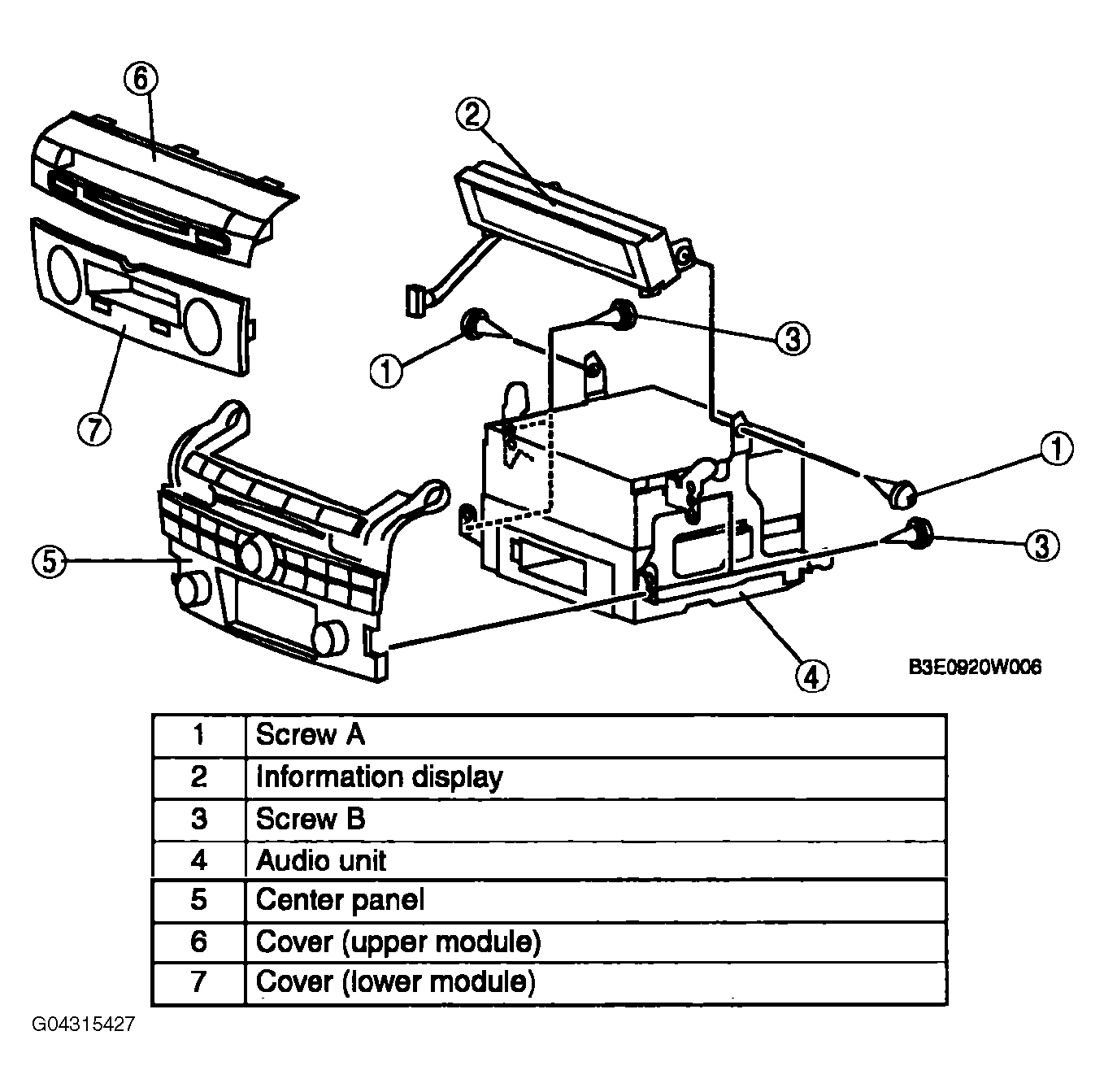

Fig 1: Exploded View Of Center Panel Module
Courtesy of MAZDA MOTORS CORP.
