Dashboard Disassembly/Assembly
- Remove the following parts:
- Passenger-side air bag module. See PASSENGER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION. )
- Ventilator grilles
- Center panel unit. See CENTER PANEL UNIT REMOVAL/INSTALLATION. )
- LCD unit (vehicles with car-navigation system). See LCD UNIT REMOVAL/INSTALLATION. )
- Center box (vehicles without car-navigation system). See CENTER BOX REMOVAL/INSTALLATION ).
- Climate control unit. See CLIMATE CONTROL UNIT REMOVAL [L3, AJ]. ) (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [L3 WITH TC]. )

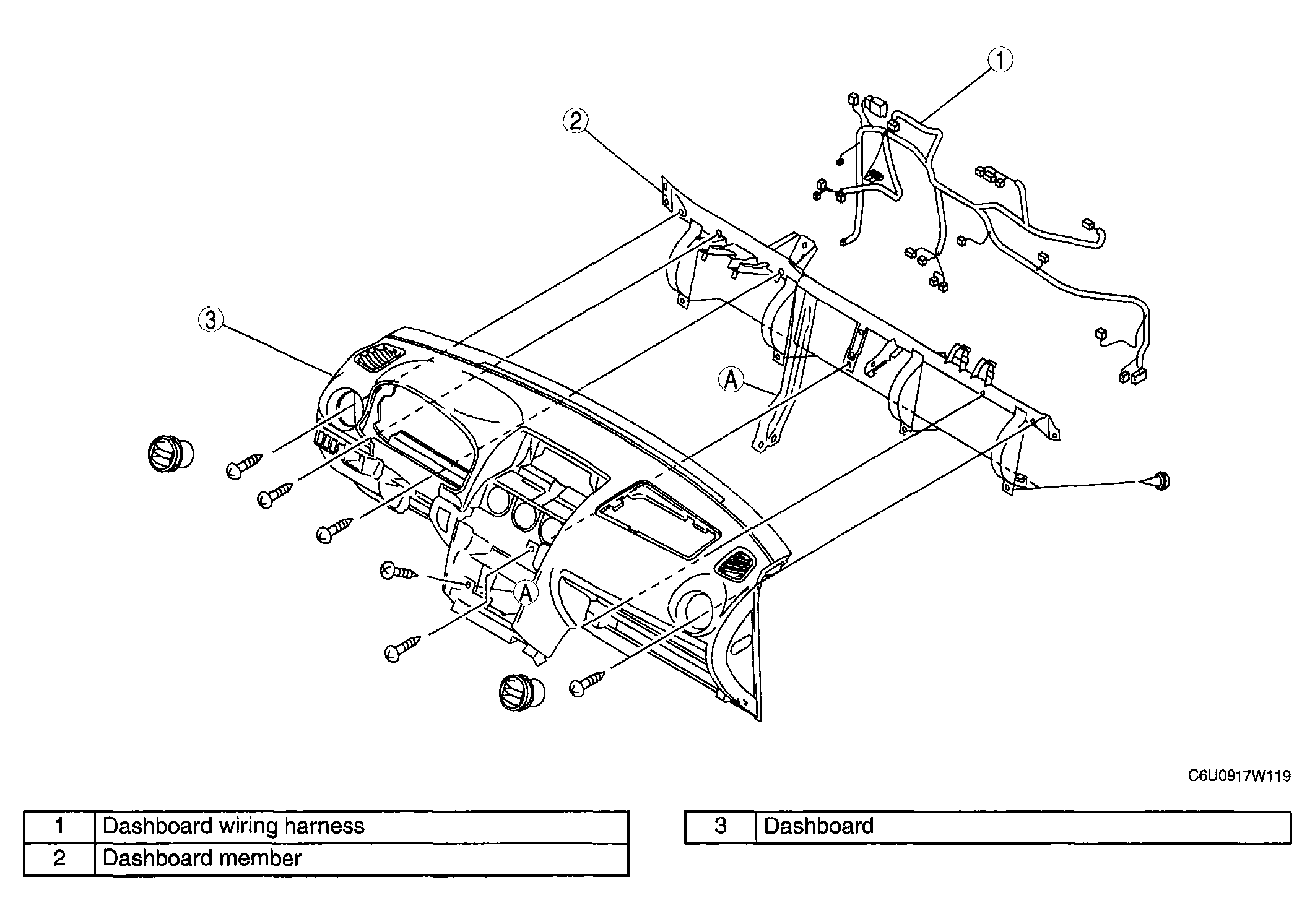

- Disassemble in the order indicated in the table.
- Assemble in the reverse order of disassembly.
