Shift Cable And Bracket Removal / Installation

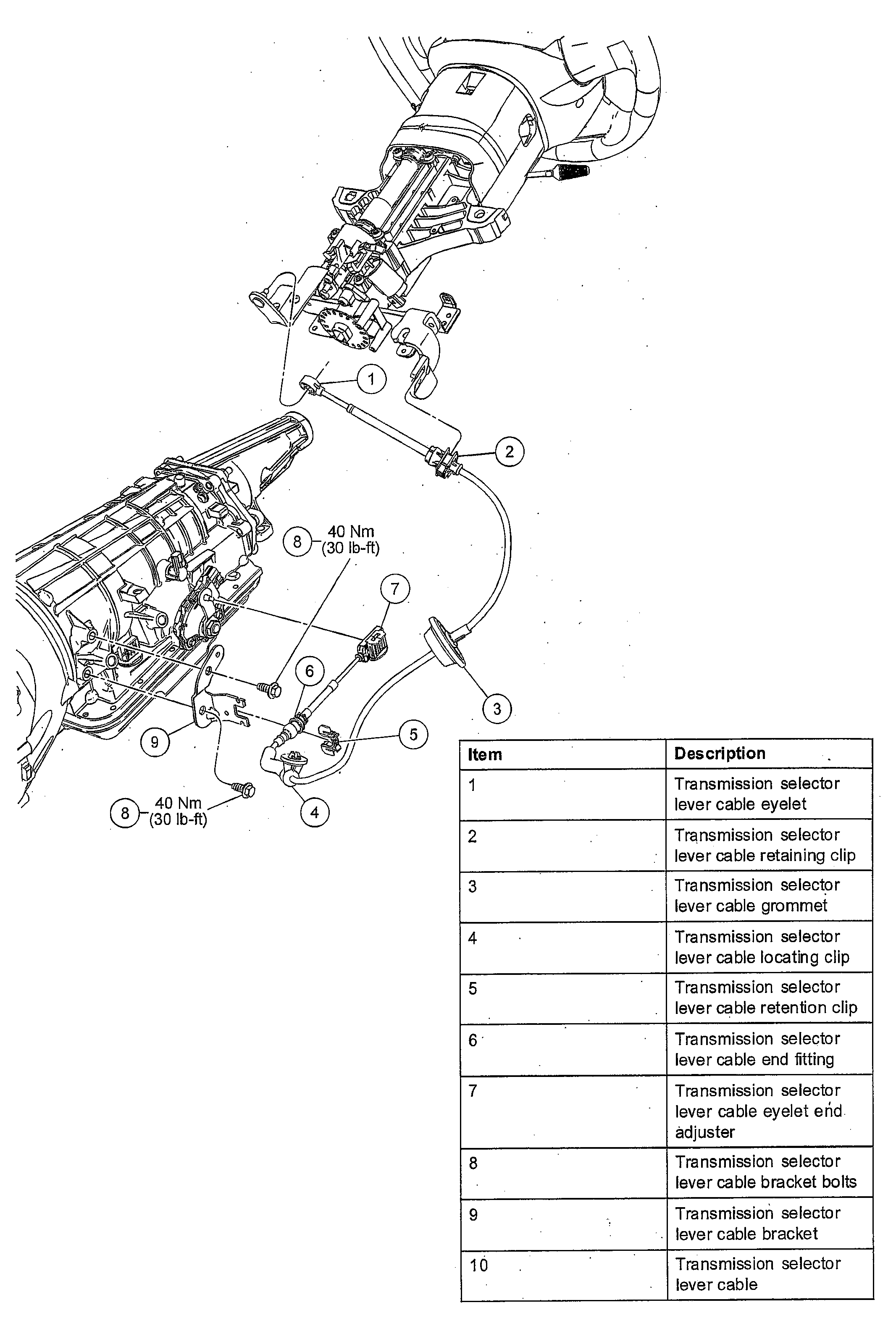

Fig 1: Identifying Shift Cable Components

Courtesy of MAZDA MOTOR CORP.

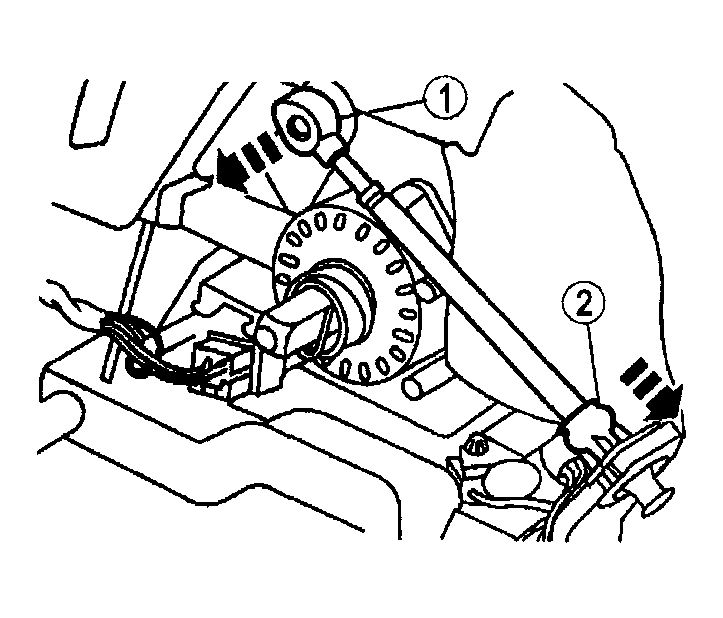

Fig 2: Disconnecting Transmission Shift Cable From Steering Column

Courtesy of MAZDA MOTORS CORP.

Disconnect the transmission shift cable from the steering column.
1. Disconnect the shift cable from the transmission column shift selector tube.
2. Disconnect the shift cable from the steering column bracket.
Push the rubber grommet and shift cable through the bulkhead.
With the vehicle in NEUTRAL, position it on a hoist. See LIFTING .
Disconnect the selector cable from the locking clip.

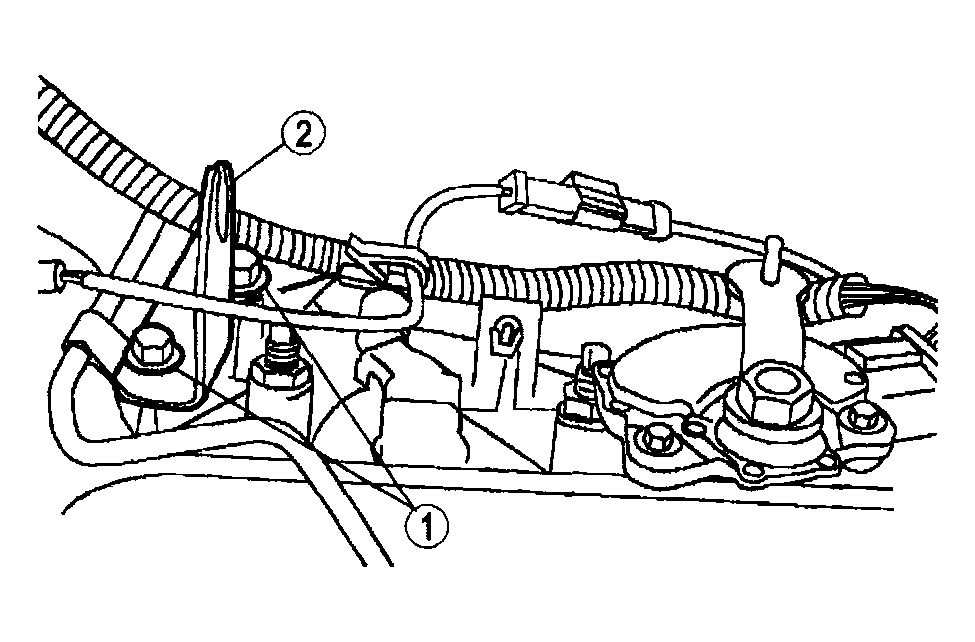

Fig 3: Disconnecting The Transmission Shift Cable
Courtesy of MAZDA MOTOR CORP.
Remove the transmission selector lever cable from the manual lever.

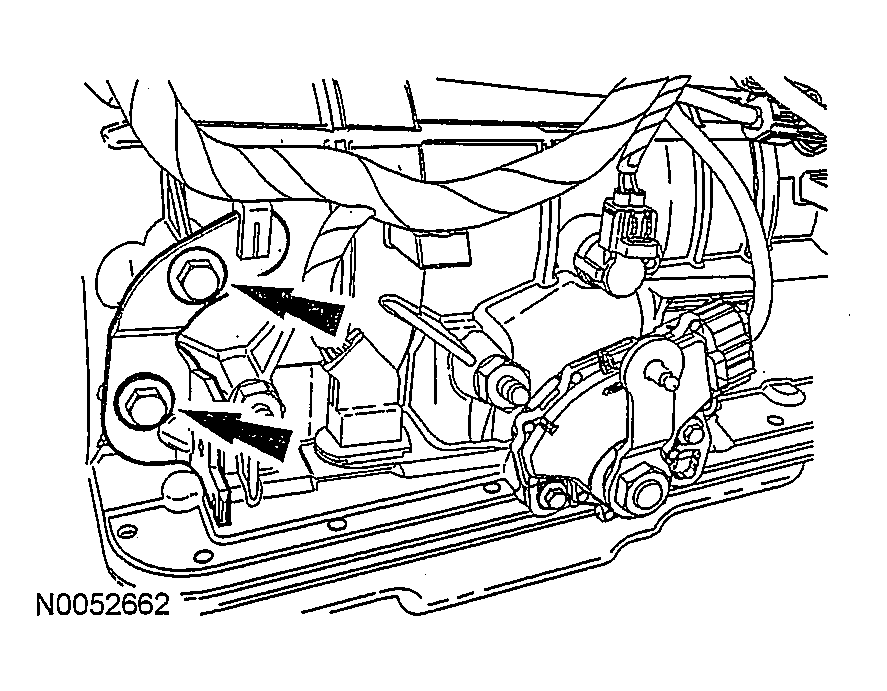

Fig 4: Removing Bolts And Transmission Shift Cable Bracket
Courtesy of MAZDA MOTORS CORP.
Remove the selector lever clip and remove the cable from the bracket.

Fig 5: Transmission Selector Lever Cable Bracket
Remove the transmission selector lever cable bracket from the automatic transmission.

Fig 6: Transmission Selector Lever Cable Bracket
To install, reverse the removal procedure.
Tightening torque 40 Nm {4.1 kgf-m, 30 lb-ft}
- Move manual lever into overdrive (O/D) range.
- Adjust the transmission shift cable. See SHIFT CABLE AND BRACKET ADJUSTMENT
