Cylinder Head Temperature (CHT) Sensor - 2.3L Removal/Installation

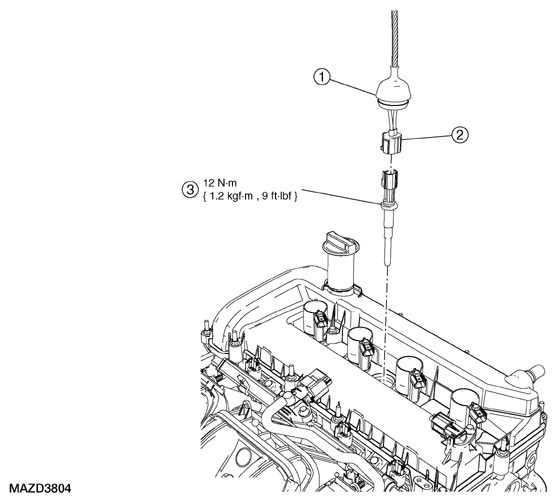

Fig 1: Cylinder Head Temperature (CHT) Sensor Replacement Components - 2.3L With Torque Specifications

Courtesy of MAZDA MOTORS CORP.

ITEM DESCRIPTION CHART

1	Cylinder head temperature (CHT) sensor cover (position aside)
2	CHT sensor electrical connector
3	CHT sensor

1. Detach the cylinder head temperature (CHT) sensor cover and position aside.
2. Disconnect the CHT sensor electrical connector.
3. Remove and discard the CHT sensor.
   • To install, tighten to 12 N.m {1.2 kgf.m, 9 ft.lbf}.
4. To install, reverse the removal procedure.
