CX-7 i SV, 2.5 M
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Symptom Troubleshooting [Engine L5]
›
Control System Device And Control Relationship Chart
Control System Device And Control Relationship Chart

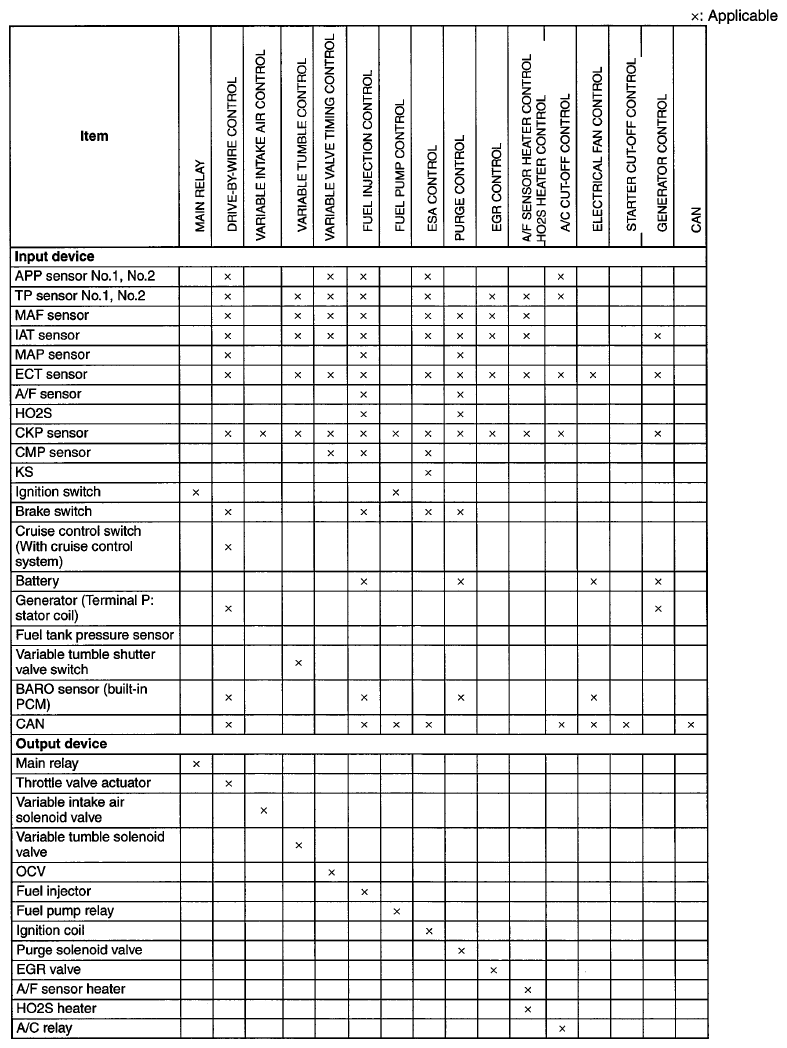

Fig 1: Control System Device And Control Relationship Chart (L5) (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

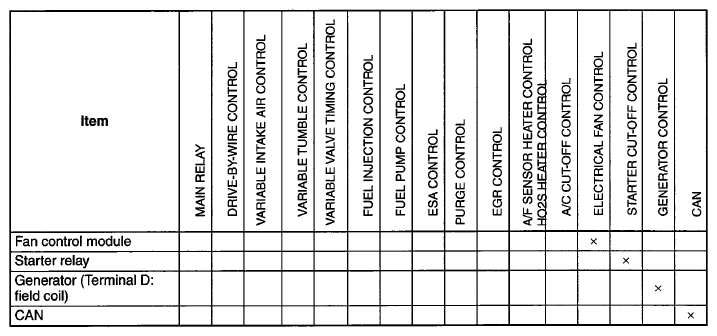

Fig 2: Control System Device And Control Relationship Chart (L5) (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
