Keyless Entry System/Immobilizer System

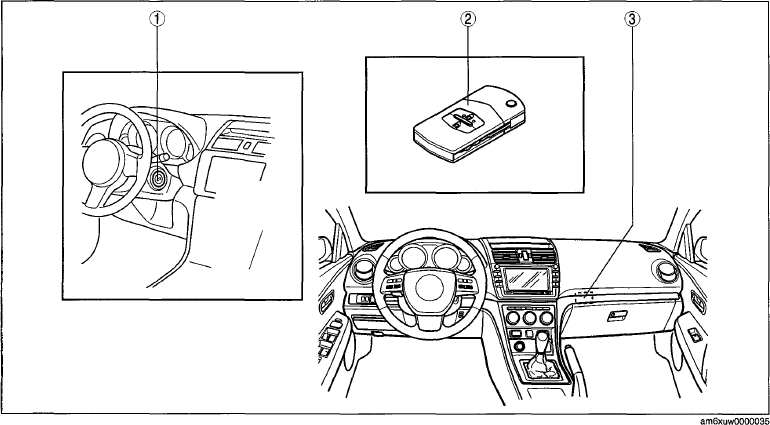

Fig 1: Keyless Entry System/Immobilizer System Components Location

Courtesy of MAZDA MOTORS CORP.

PARTS DESCRIPTION CHART

1	Coil antenna (See COIL ANTENNA REMOVAL/INSTALLATION [KEYLESS ENTRY SYSTEM] .)
2	Transmitter (See TRANSMITTER BATTERY REPLACEMENT [KEYLESS ENTRY SYSTEM] .) (See TRANSMITTER ID CODE REGISTRATION [KEYLESS ENTRY SYSTEM] .)
3	Keyless receiver (See KEYLESS RECEIVER REMOVAL/INSTALLATION .) (See KEYLESS RECEIVER INSPECTION [KEYLESS ENTRY SYSTEM] .)
