DTC P2107: Throttle Actuator Control Module Processor: Notes

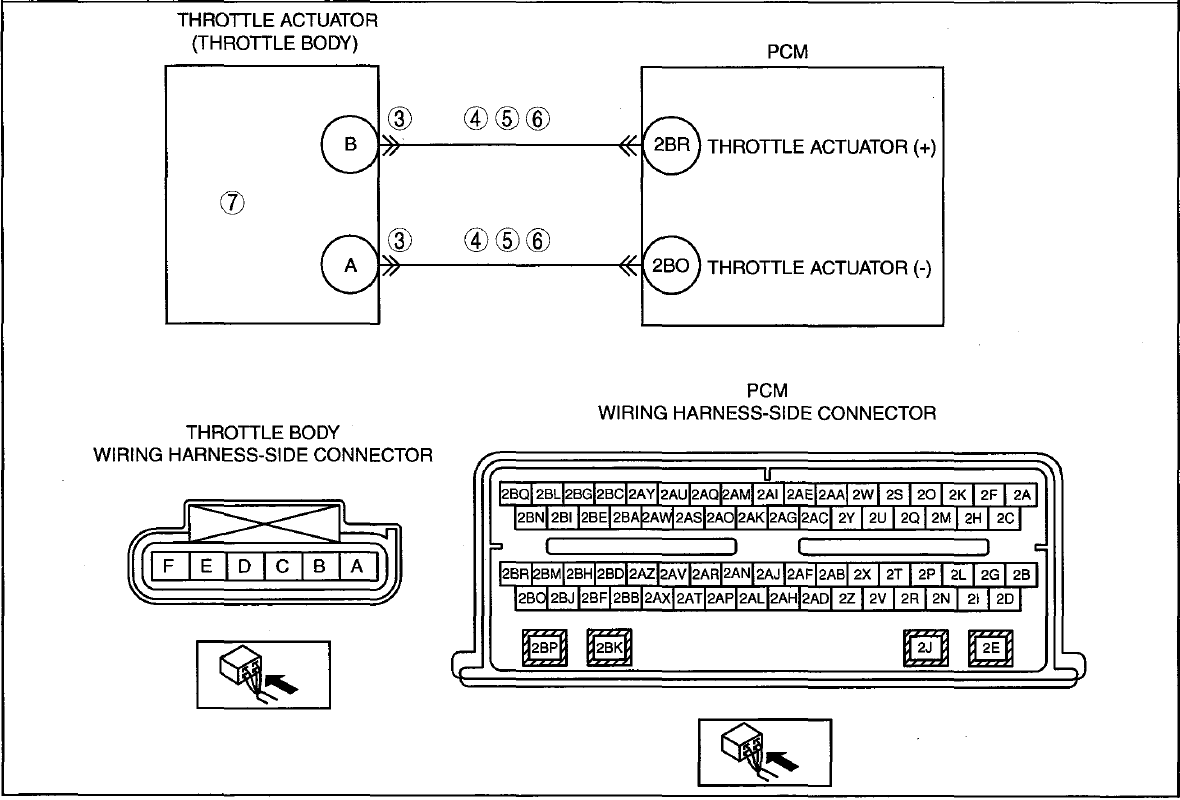

DTC P2107 CHART (MZI-3.7)

DTC P2107	Throttle actuator control module processor
DETECTION CONDITION	The throttle actuator control area of the PCM failed the self-test.
POSSIBLE CAUSE	Throttle body connector or terminal malfunction PCM connector or terminal malfunction Short to power supply between throttle actuator terminal A and PCM terminal 2BO Short to power supply between throttle actuator terminal B and PCM terminal 2BR Short to ground between throttle actuator terminal A and PCM terminal 2BO Short to ground between throttle actuator terminal B and PCM terminal 2BR Short to TP sensor power supply between throttle actuator terminal A and PCM terminal 2BO Short to TP sensor power supply between throttle actuator terminal B and PCM terminal 2BR Throttle actuator control circuits are shorted each other Throttle body malfunction PCM malfunction
Courtesy of MAZDA MOTORS CORP.
